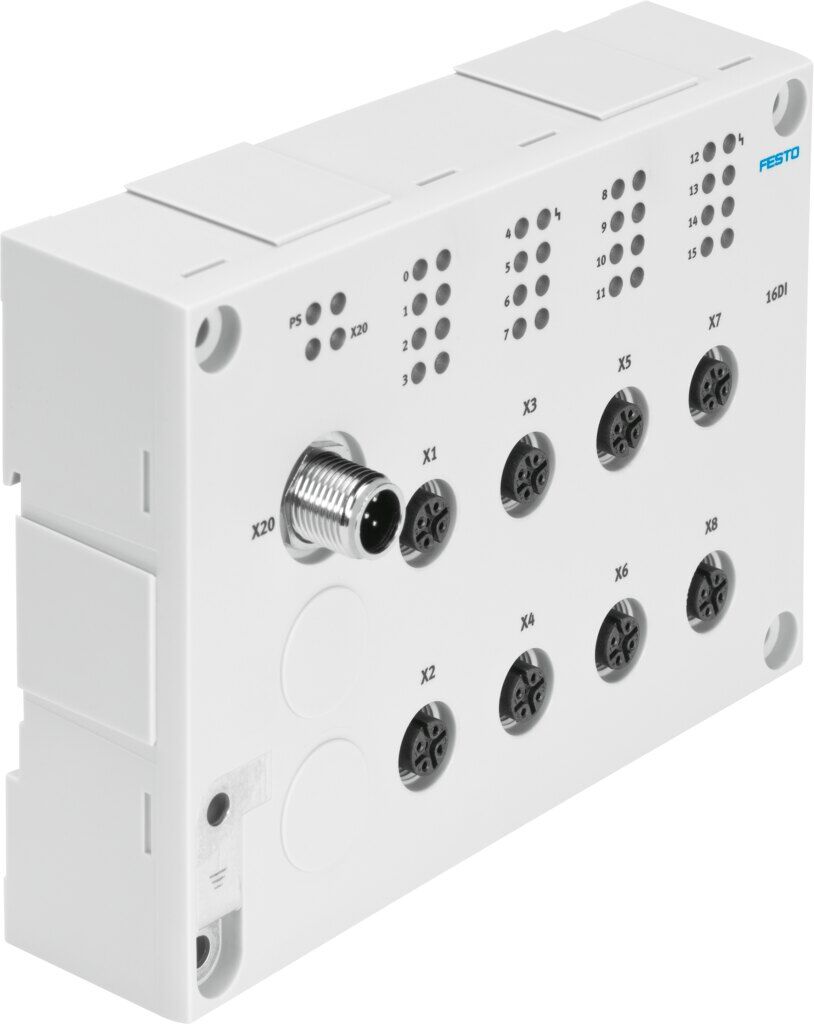

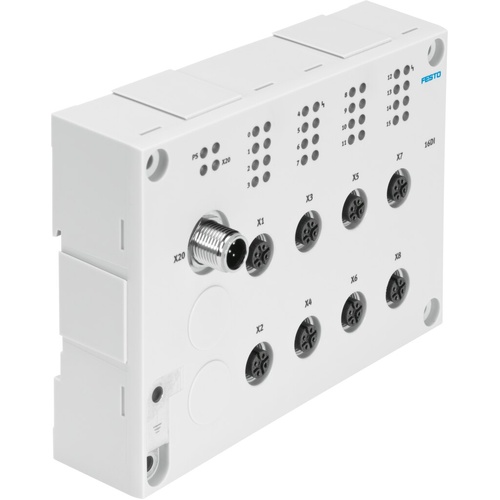

Input module

CTSL-D-16E-M12-5

1387359





GTIN: 4052568232542

Electrical connection
M12
Nominal operating voltage DC
24 V
Max. number of inputs
16

Technical Data

  • ProtocolI-Port IO-Link®
  • Dimensions (W x L x H)143 x 103 x 32 mm
  • Type of mountingWith through-hole With H-rail
  • Product weight250 g
  • Ambient temperature-5 °C ... 50 °C
  • Storage temperature-20 °C ... 70 °C
  • Degree of protectionIP65 IP67
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • KC markKC-EMV
  • ApprovalRCM trademark c UL us listed (OL)
  • Certificate issuing authorityUL E239998
  • Note on materialsRoHS-compliant
  • Material housingPA-reinforced
  • Material coverPA-reinforced
  • LED display, product-specific1 hp electrical operating voltage 16 Channel status 2 Group diagnostics
  • LED display, bus-specificX20: I-Port/IO-Link®
  • Max. number of inputs16
  • Baud rate38.4 kbit/s, 230.4 kbit/s
  • Electrical connectionM12
  • Operational voltage range DC18 V ... 30 V
  • Nominal operating voltage DC24 V
  • Current consumption at nominal operating voltage, logic≤35 mA
  • Reverse polarity protectionFor operating voltage
  • Characteristic for inputsIEC1131-T2
  • Switching levelSignal 0: <= 5 V Signal 1: >= 11 V
  • Switching logic for inputsPNP (positive switching)
  • Input debounce time0.5 ms (3 ms, 10 ms, 20 ms, parameterisable)
  • Max. total current per module1.2 A
  • Isolation channel - channelno
  • Fuse protection (short circuit)Internal electronic fuse protection for each group
  • IO-Link, connection technologyDevice, 5-pin
  • IO-Link, Number of ports1
  • IO-Link, Port classB
  • IO-Link, Protocol versionDevice V 1.0
  • IO-Link, communication modeCOM2 (38.4 kBaud), COM3 (230.4 kBaud)
  • IO-Link, Process data length IN2 bytes
  • IO-Link, Min. cycle timeDevice 3.2 ms
