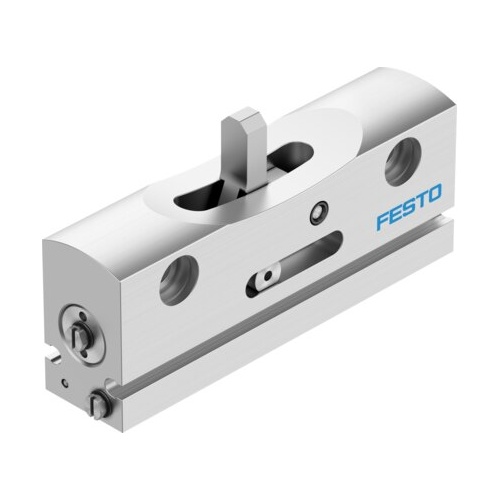

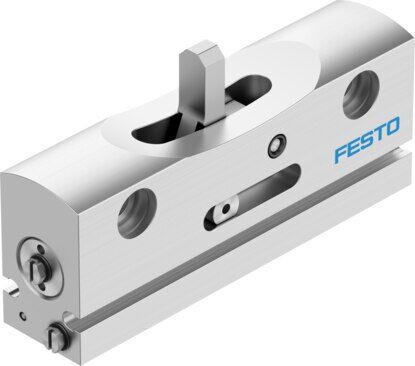

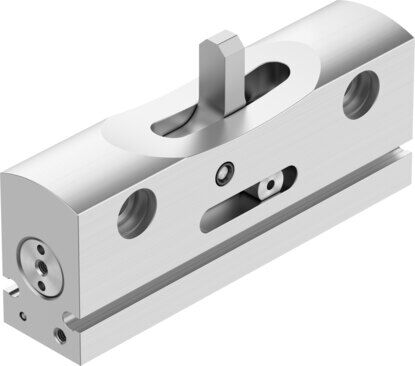

Intermediate-position module

DADM-EP-G6-16

1478121





GTIN: 4052568263515

Technical Data

  • Size16
  • Mounting positionoptional
  • DesignForce pilot operated motion sequence
  • Position detectionVia proximity switch
  • Symbol00991270
  • Operating pressure3 bar ... 6 bar
  • Max. impact speed0.8 m/s
  • Max. swivel time150 ms
  • Repetition accuracy±0.02 mm
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Max. stop force1100 N
  • Product weight340 g
  • Type of mountingVia through-hole and centring sleeve
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material sealsPU
  • Material housingWrought aluminium alloy
  • Material leverHigh-alloy stainless steel





SKU 1478121
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
