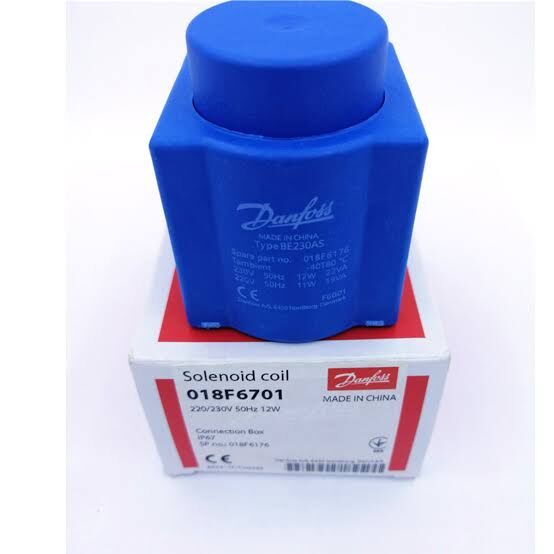

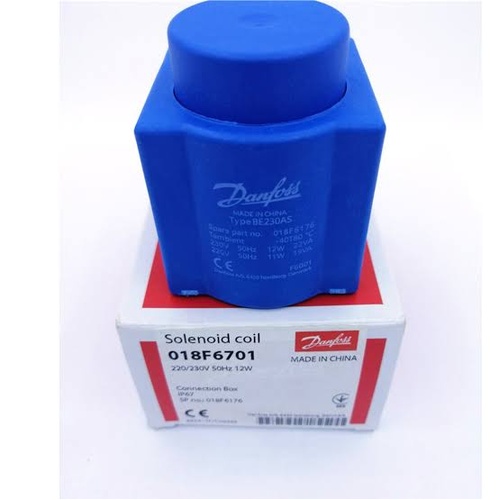

Danfoss Coil Solenoid Valve BE230AS 220V 50HZ 018F6701 018F6176
Price Incudes GST
$145.20
Sold Out - Backorder Available
Danfoss Coil Solenoid Valve BE230AS 220V 50HZ 018F6701 018F6176
Solenoid coil, BE230AS, DIN Spade, Supply voltage [V] AC: 220 - 230, Multi pack
018F6176
Electrical connection: DIN Spade, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP20
Product details
DANFOSS DATA SHEETS
| Gross weight | 0.288 Kilogram |
| Net weight | 0.271 Kilogram |
| Volume | 0.266 Liter |
| EAN | 5702428024402 |
| Type | BE230AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts included | Cap |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B Read more |
| Power cons Dual 50Hz [VA] | 19 mW |
| Power cons Dual 50Hz [W] | 11 W |
| Power consumption 50Hz [VA] | 22 VA |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F6176 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BE230AS |
| SKU | BE230AS |
| Shipping Weight | 1.0000kg |
