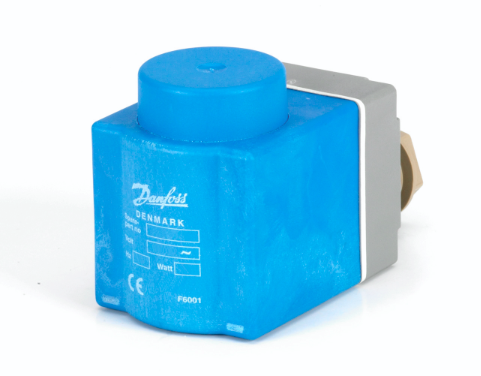

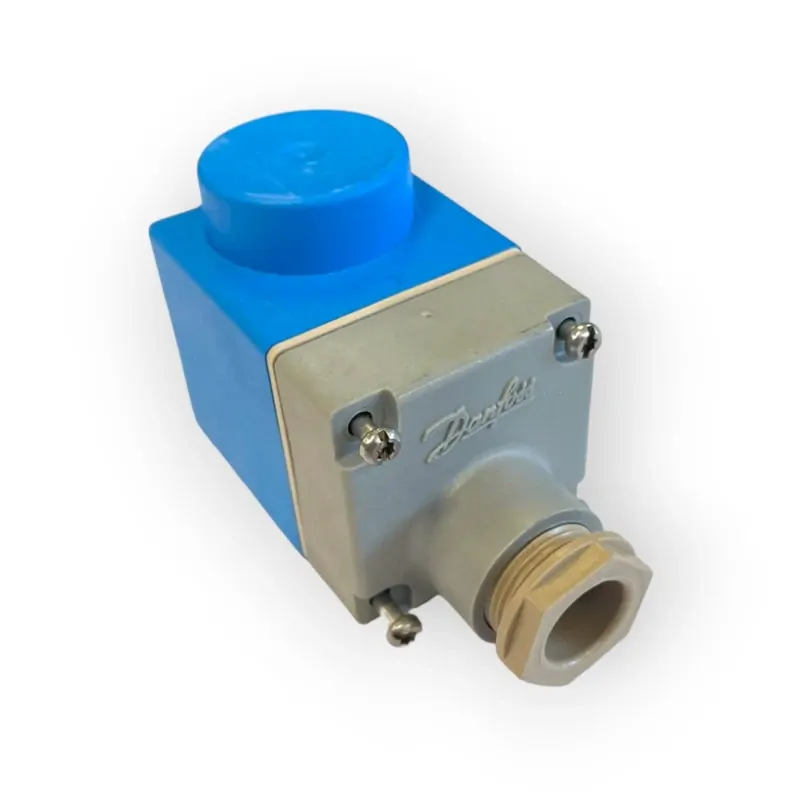

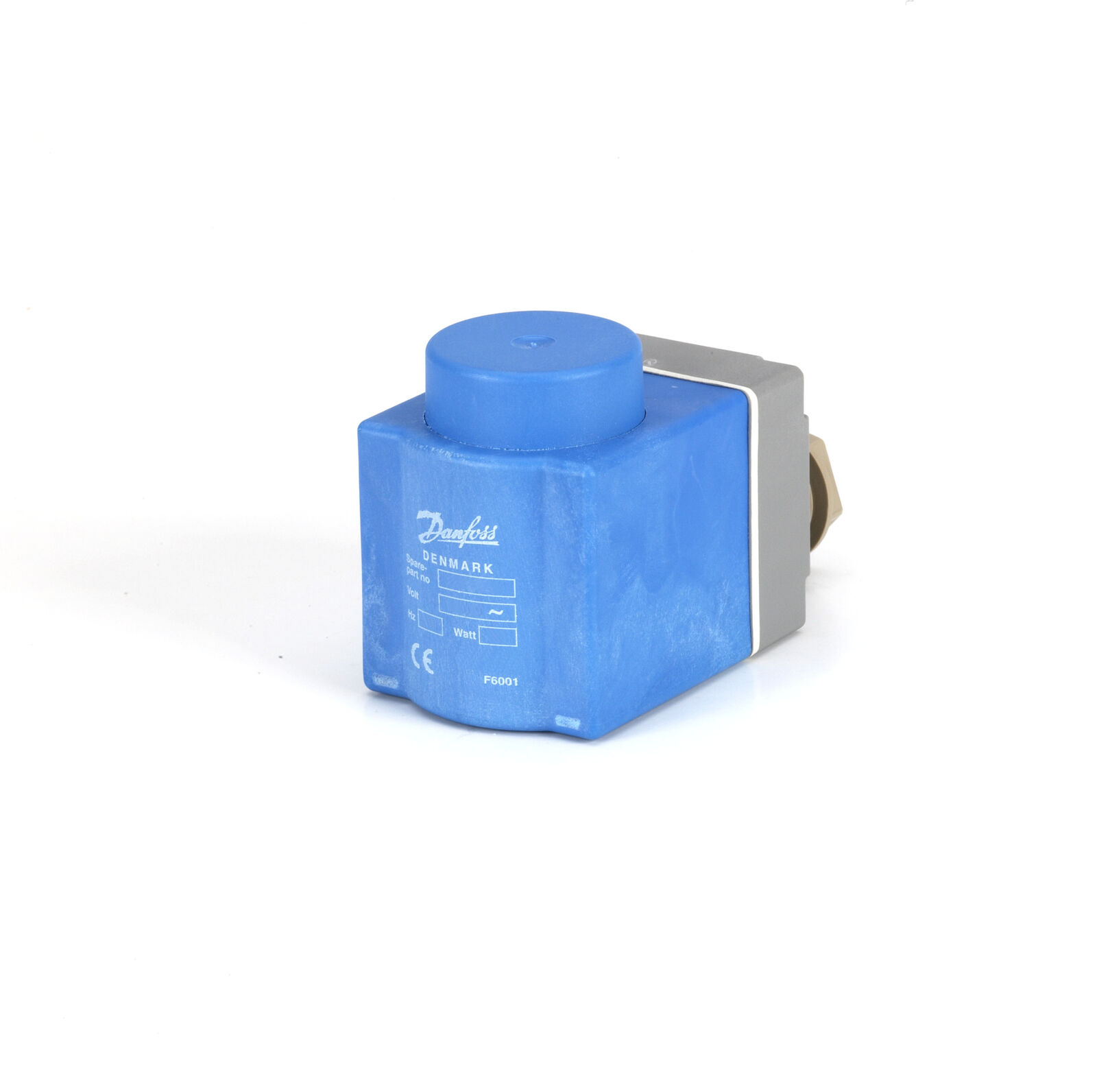

Danfoss Solenoid coil, BE024AS, Terminal box, Supply voltage [V] AC: 24, Multi pack

Actuator size 13.5 mm
Ambient temperature range [°C] [max] 80 °C
Ambient temperature range [°C] [min] -40 °C
Ambient temperature range [°F] [max] 175 °F
Ambient temperature range [°F] [min] -40 °F
Approval CE
EAC
LLC CDC TYSK
Cable diameter [mm] [max] 11 mm
Cable diameter [mm] [min] 6 mm
CE mark Yes
China RoHS compliance Out of scope
China RoHS exemption clause No
Coil connection Connection Box
Coil design standard VDE 0580
Coil fastening Clip-on
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Conductor area [mm2] 0.75 - 1.5 mm2
Contains batteries No
Duty rating Continuous
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Terminal box
Electrical connection size Pg 13.5
Enclosure rating IP IP67
EU RoHS compliance Yes
EU RoHS exemption clause No
Frequency [Hz] 50 Hz
Identical product 018F8707
In scope of WEEE Yes
Packing format Multi pack
Parts Program name EV210B
EV212B
EV220B 15 - 50
EV220B 6 - 22
EV220B 65 - 100
EV222B
EV224B
EV227B
Read more
Power consumption 50Hz [VA] 21 VA
Power consumption [W] 50Hz 12 W
Product accessories Solenoid coil accessories
Quantity per packing format 32 pc
REACH Candidate List substances No
Rel. Humidity [% RH] [max] 100 %
Rel. Humidity [% RH] [min] 0 %
SCIP dossier product name Solenoid coils
Serviceable No
Spare part number 018F6182
Supply voltage 50Hz Max [V] 24 V
Supply voltage [V] AC 24 V
Type designation BE024AS
SKU BE024AS
Shipping Weight 1.0000kg
