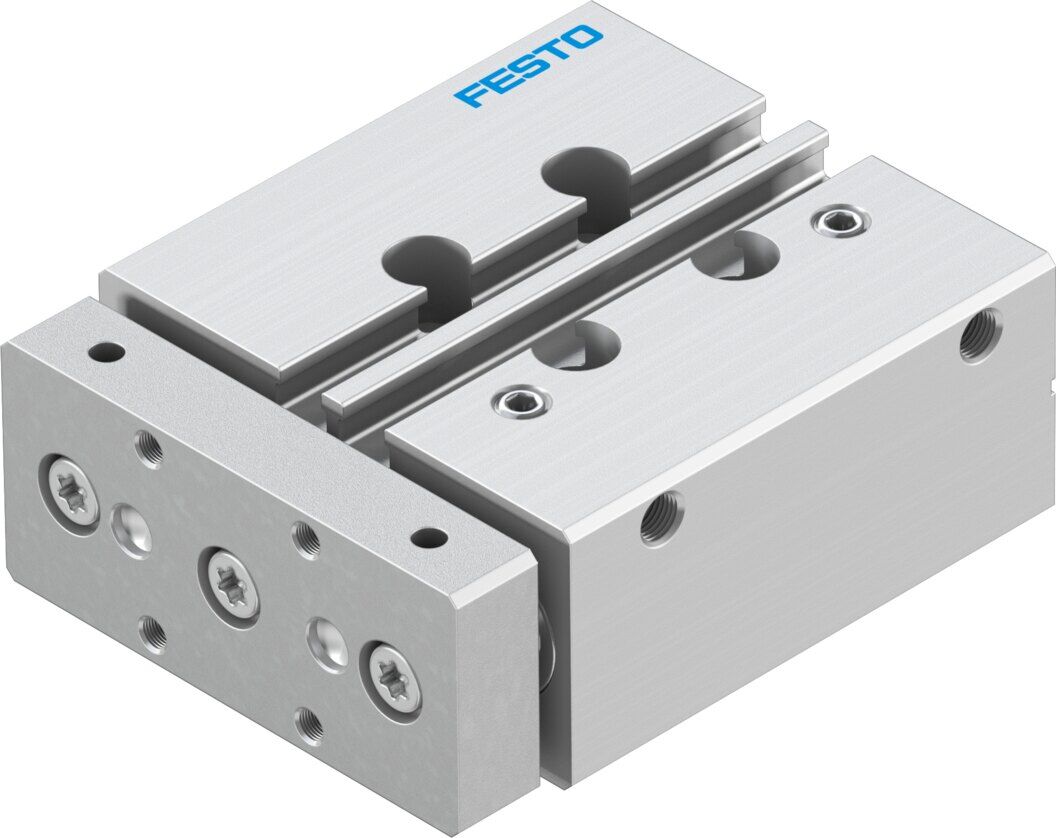

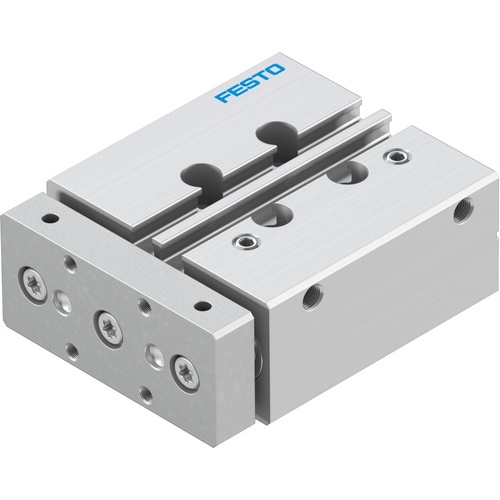

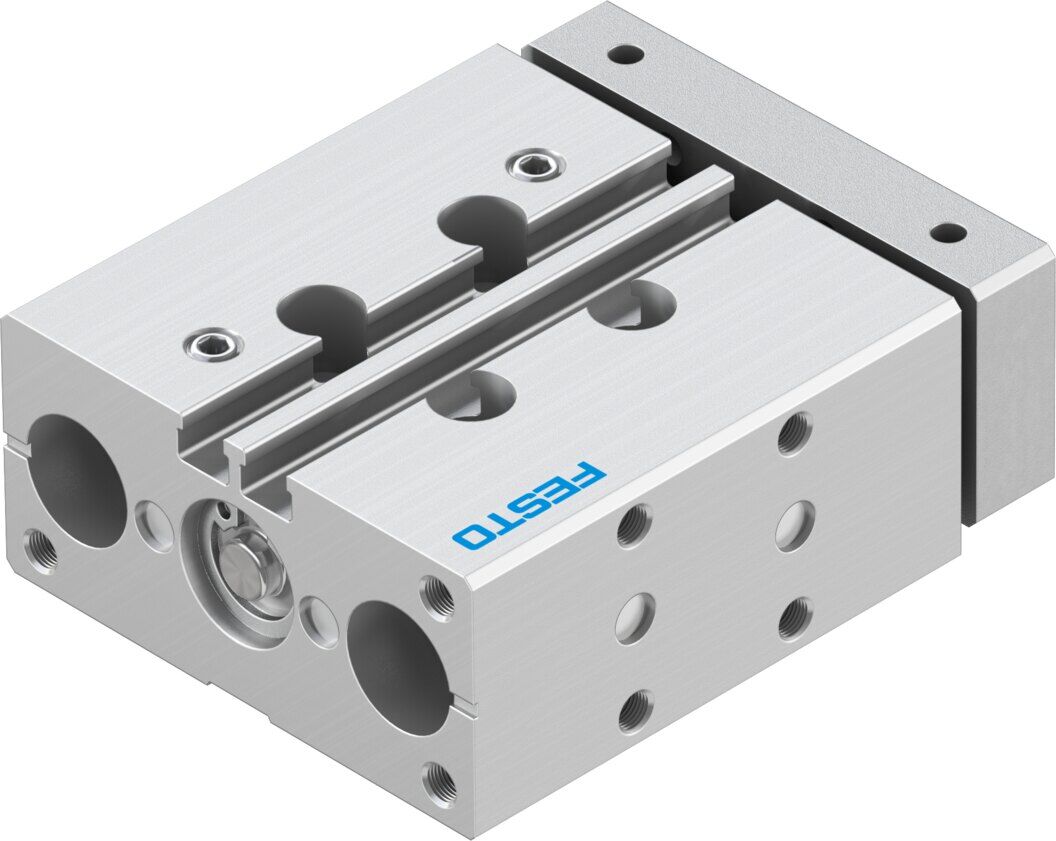

Guided drive DFM-12-25-P-A-KF

170901

GTIN: 4052568139957

Piston diameter
12 mm
Theoretical force at 6 bar, advancing
68 N
Stroke
25 mm
Cushioning
Elastic cushioning rings/pads at both ends
Position sensing
Via proximity switch



Technical Data Guided drive DFM-12-25-P-A-KF

  • Distance of centre of gravity of payload to yoke plate xs25 mm
  • Stroke25 mm
  • Piston diameter12 mm
  • Drive unit operating modeYoke
  • CushioningElastic cushioning rings/pads at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing
  • Structural designGuide
  • Position sensingVia proximity switch
  • Symbol00991737
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. speed0.8 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in the end positions0.07 J
  • Max. force Fy270 N
  • Max. force Fy static355 N
  • Max. force Fz270 N
  • Max. force Fz static355 N
  • Max. torque Mx5.53 Nm
  • Max. static moment Mx7.28 Nm
  • Max. torque My2.43 Nm
  • Max. static moment My3.2 Nm
  • Max. torque Mz2.43 Nm
  • Max. static moment Mz3.2 Nm
  • Max. permissible torque load Mx as a function of the stroke0.9 Nm
  • Max. payload as a function of the stroke at defined distance xs31 N
  • Theoretical force at 6 bar, retracting51 N
  • Theoretical force at 6 bar, advancing68 N
  • Moving mass170 g
  • Product weight375 g
  • Center of gravity of the moving mass as a function of the stroke16.7 mm
  • Alternative connectionsSee product drawing
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Cover materialWrought aluminum alloy
  • Seals materialNBR
  • Housing materialWrought aluminum alloy
  • Piston rod materialhigh-alloy stainless steel
SKU 170901
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
