Guided drive

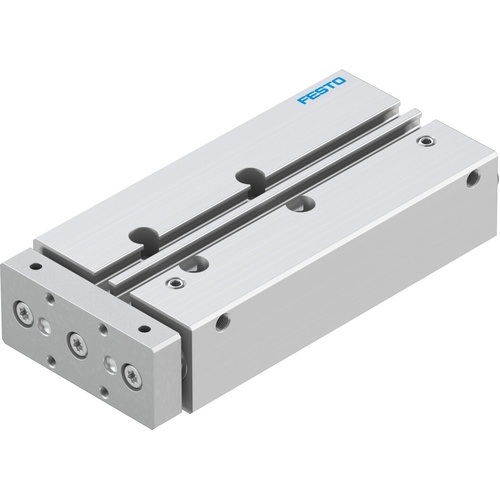

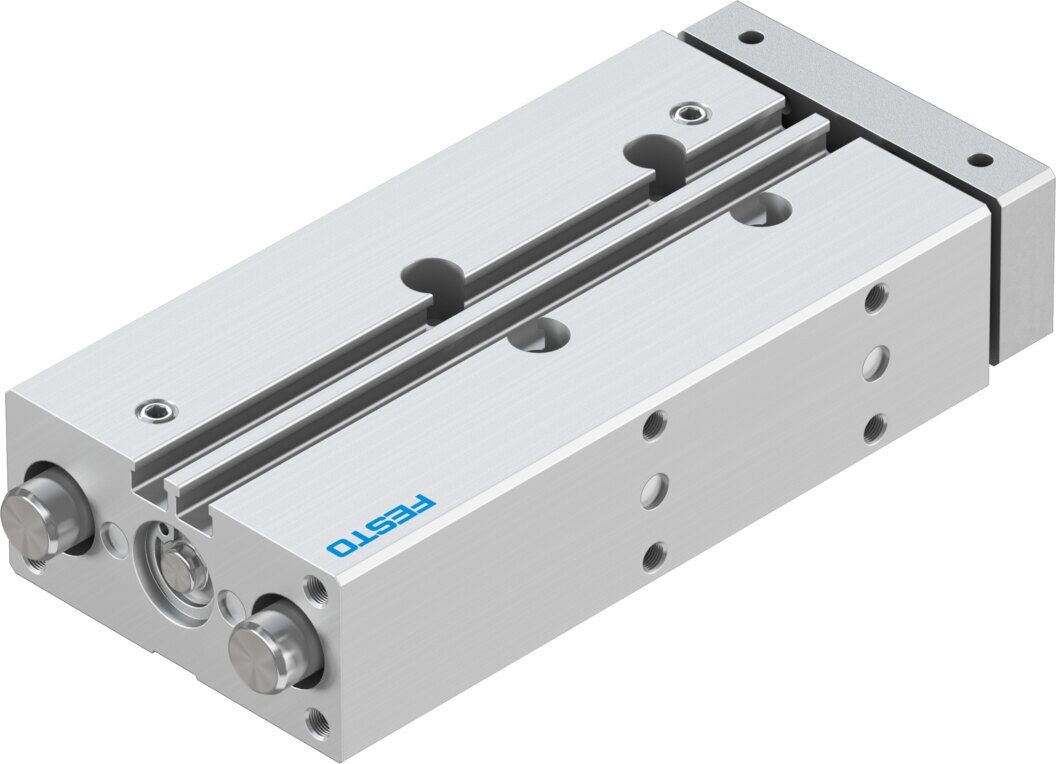

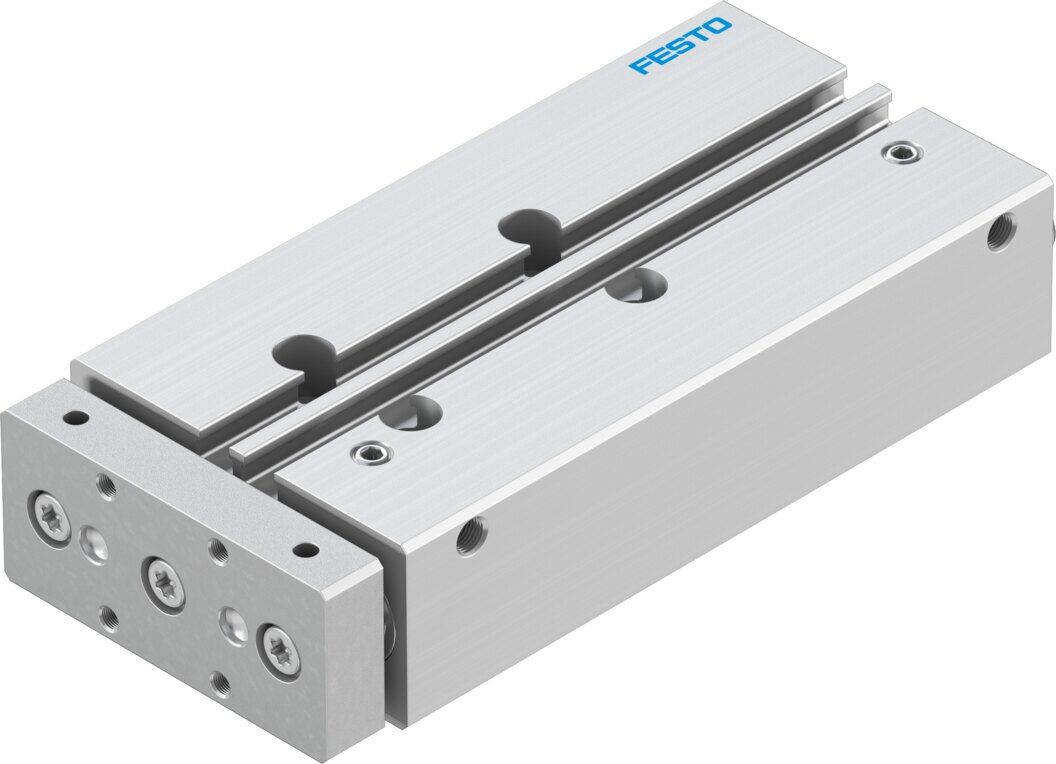

DFM-12-80-P-A-GF

170830





GTIN: 4052568013127


Piston diameter
12 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
68 N
Stroke
80 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch



Technical Data

  • Distance from centre of gravity of load to yoke plate xs25 mm
  • Stroke80 mm
  • Piston diameter12 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuidePlain-bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. speed0.8 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.07 J
  • Max. force Fy240 N
  • Max. force Fy static240 N
  • Max. force Fz240 N
  • Max. force Fz static240 N
  • Max. moment Mx4.92 Nm
  • Max. torque Mx static4.92 Nm
  • Max. moment My3.74 Nm
  • Max. torque My static3.74 Nm
  • Max. moment Mz3.74 Nm
  • Max. torque Mz static3.74 Nm
  • Max. permissible torque load Mx as a function of stroke0.55 Nm
  • Max. effective load dependent upon stroke at defined distance xs22 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke51 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke68 N
  • Moving mass289 g
  • Product weight688 g
  • alternative connectionsSee product drawing
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
