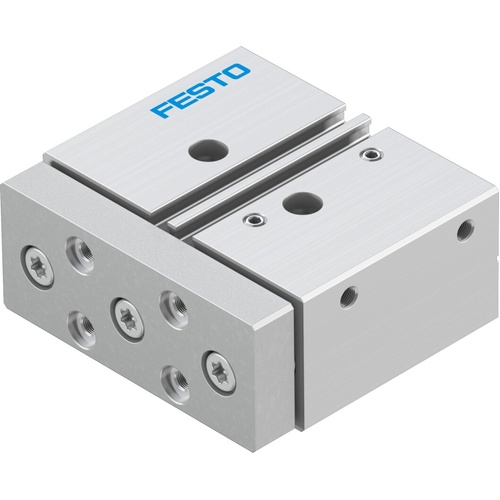

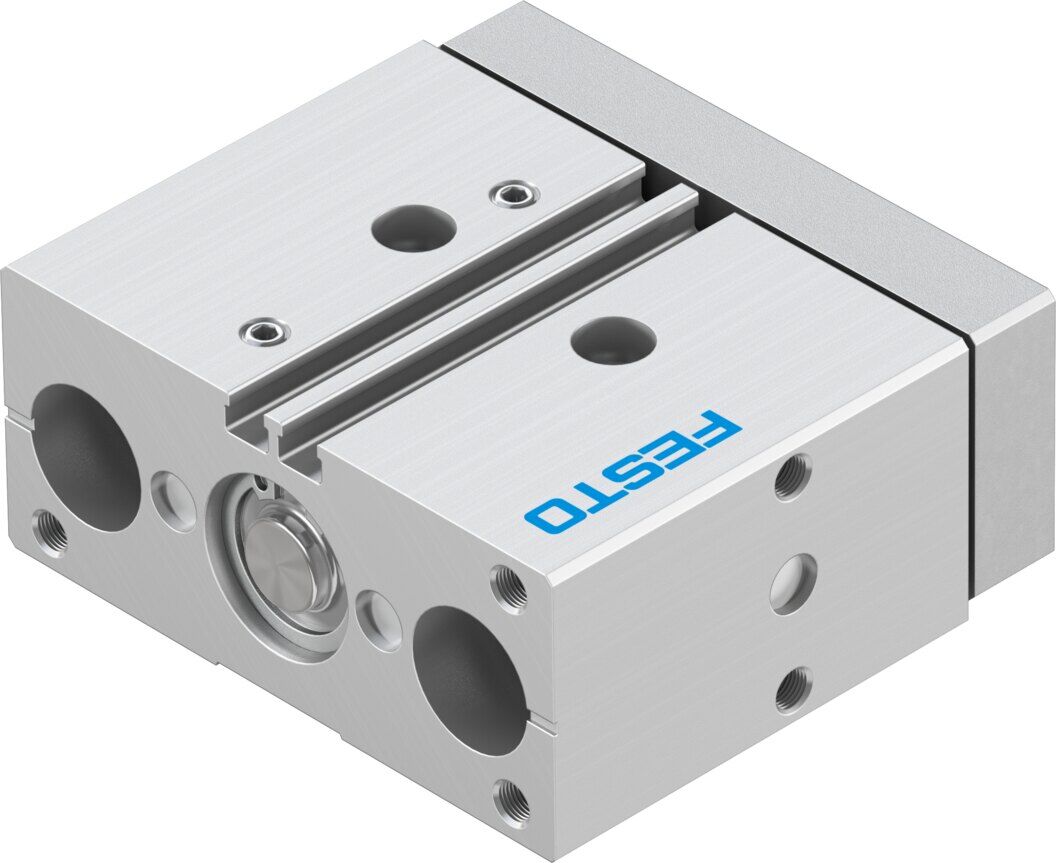

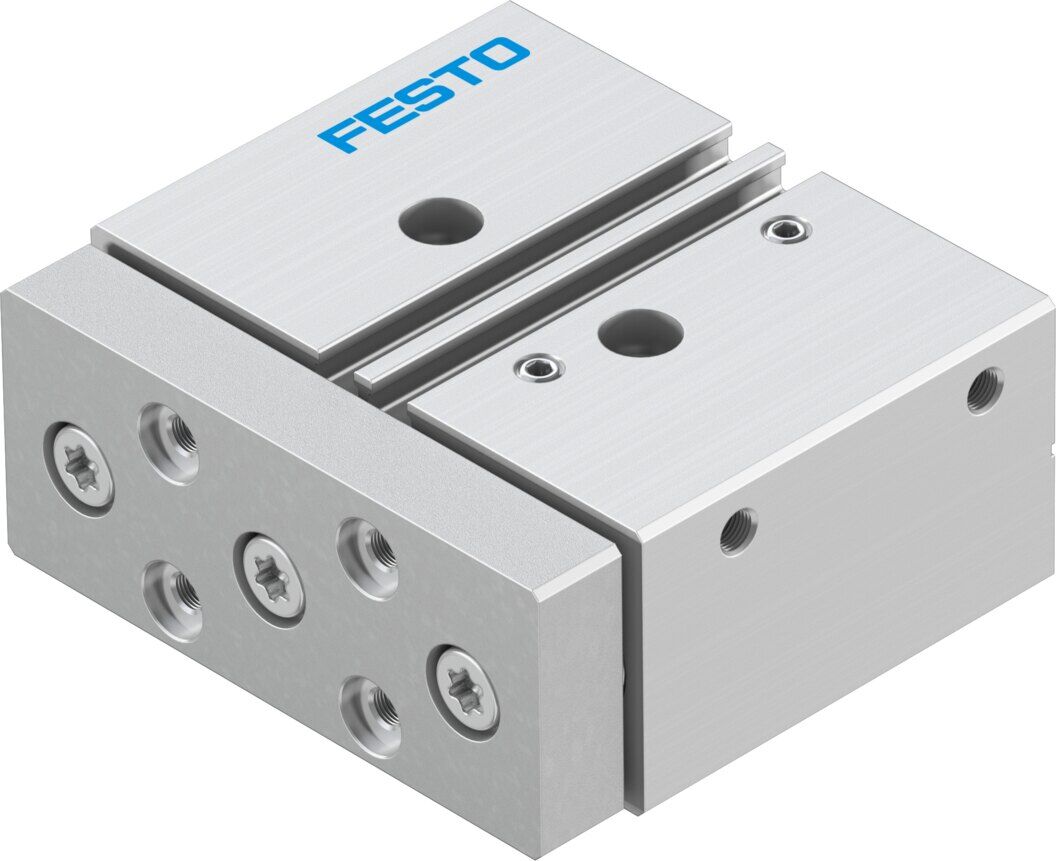

Guided drive DFM-20-20-P-A-KF

170915

GTIN: 4052568013462

Piston diameter
20 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
188 N
Stroke
20 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch





Technical Data Guided drive DFM-20-20-P-A-KF

  • Distance from centre of gravity of load to yoke plate xs50 mm
  • Stroke20 mm
  • Piston diameter20 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. speed0.8 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions0.2 J
  • Max. force Fy408 N
  • Max. force Fy static510 N
  • Max. force Fz408 N
  • Max. force Fz static510 N
  • Max. moment Mx11.84 Nm
  • Max. torque Mx static14.79 Nm
  • Max. moment My4.49 Nm
  • Max. torque My static5.61 Nm
  • Max. moment Mz4.49 Nm
  • Max. torque Mz static5.61 Nm
  • Max. permissible torque load Mx as a function of stroke2.43 Nm
  • Max. effective load dependent upon stroke at defined distance xs46 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N
  • Moving mass376 g
  • Product weight747 g
  • Centre of gravity of moving mass as a function of stroke17.5 mm
  • alternative connectionsSee product drawing
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
SKU 170915
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
