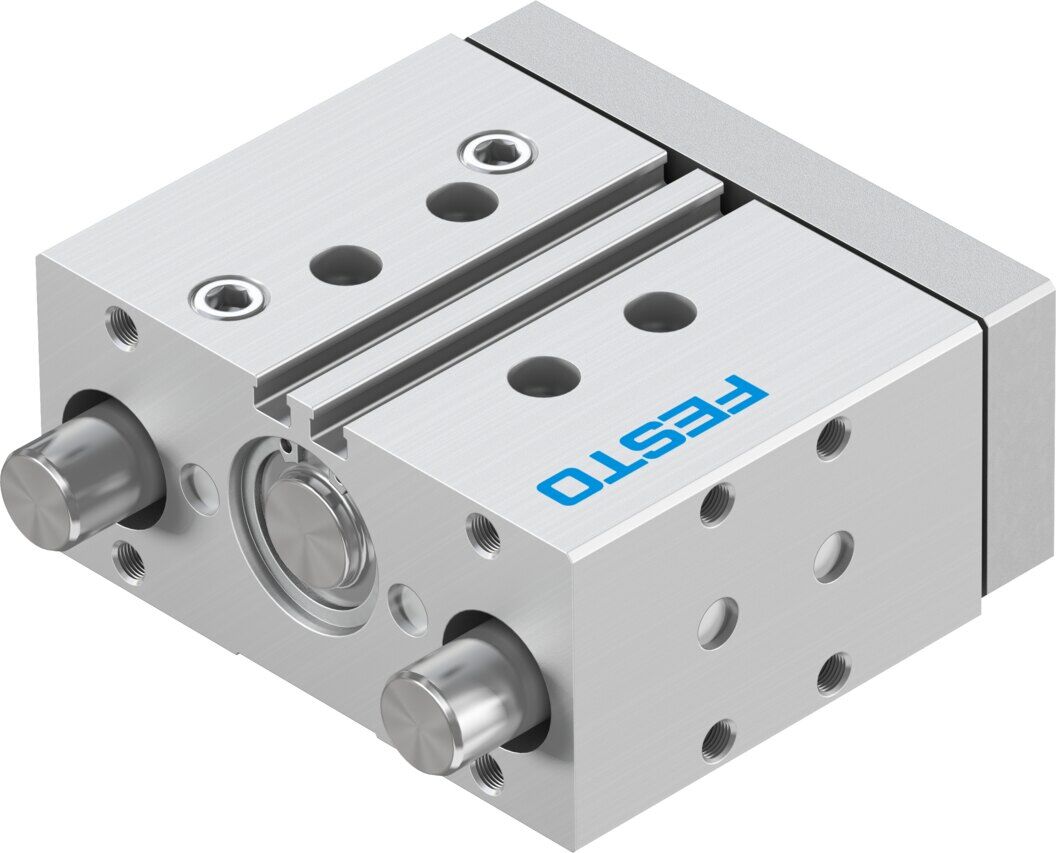

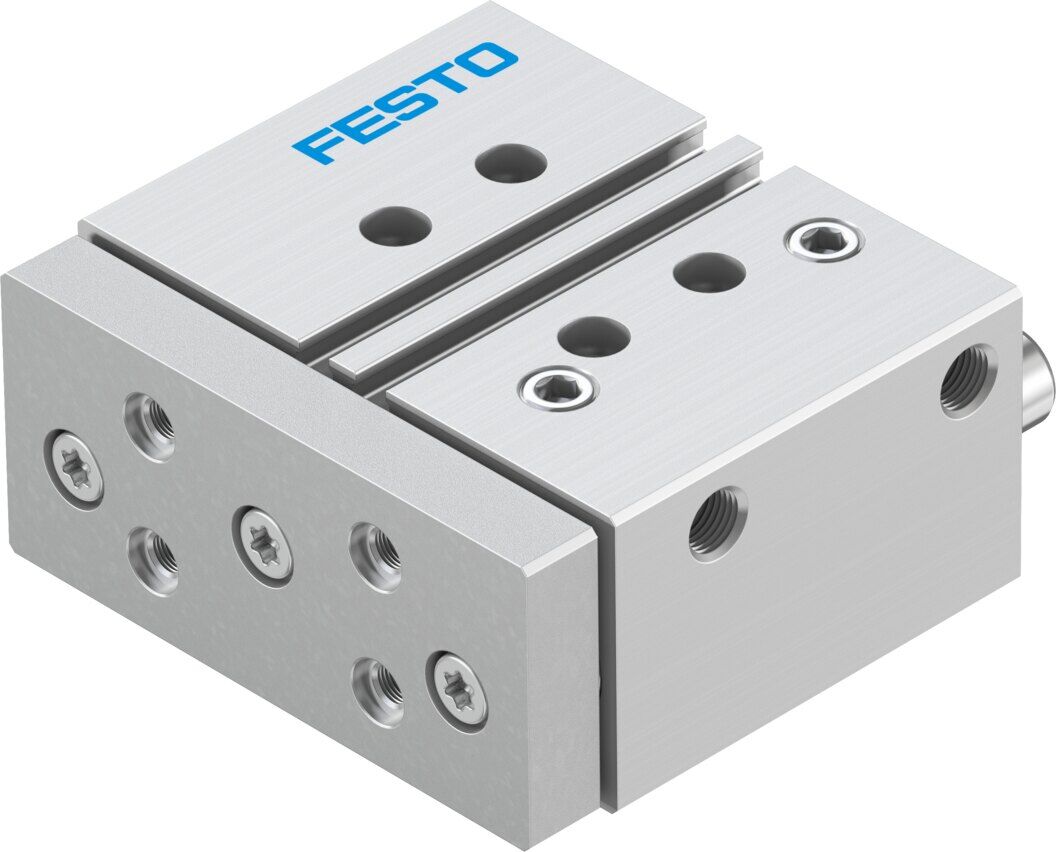

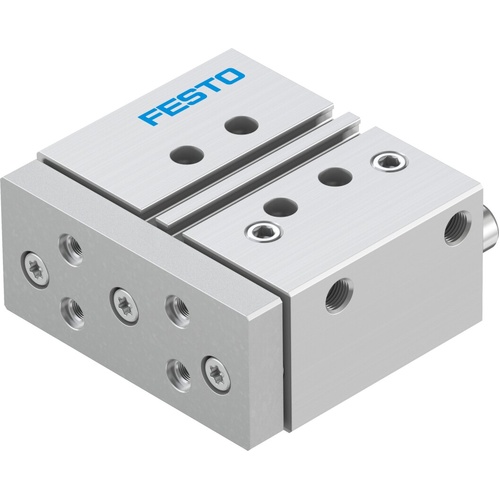

Guided driveDFM-25-25-P-A-KF

170923

GTIN: 4052568140113

Piston diameter
25 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
295 N
Stroke
25 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch





Technical Data Guided drive DFM-25-25-P-A-KF

  • Distance from centre of gravity of load to yoke plate xs50 mm
  • Stroke25 mm
  • Piston diameter25 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.15 MPa ... 1 MPa
  • Operating pressure1.5 bar ... 10 bar
  • Max. speed0.8 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions0.3 J
  • Max. force Fy863 N
  • Max. force Fy static1060 N
  • Max. force Fz863 N
  • Max. force Fz static1060 N
  • Max. moment Mx29.35 Nm
  • Max. torque Mx static36.04 Nm
  • Max. moment My12.52 Nm
  • Max. torque My static15.37 Nm
  • Max. moment Mz12.52 Nm
  • Max. torque Mz static15.37 Nm
  • Max. permissible torque load Mx as a function of stroke5.77 Nm
  • Max. effective load dependent upon stroke at defined distance xs105 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
  • Moving mass611 g
  • Product weight1221 g
  • Centre of gravity of moving mass as a function of stroke26.4 mm
  • alternative connectionsSee product drawing
  • Pneumatic connectionG1/8
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
SKU 170923
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
