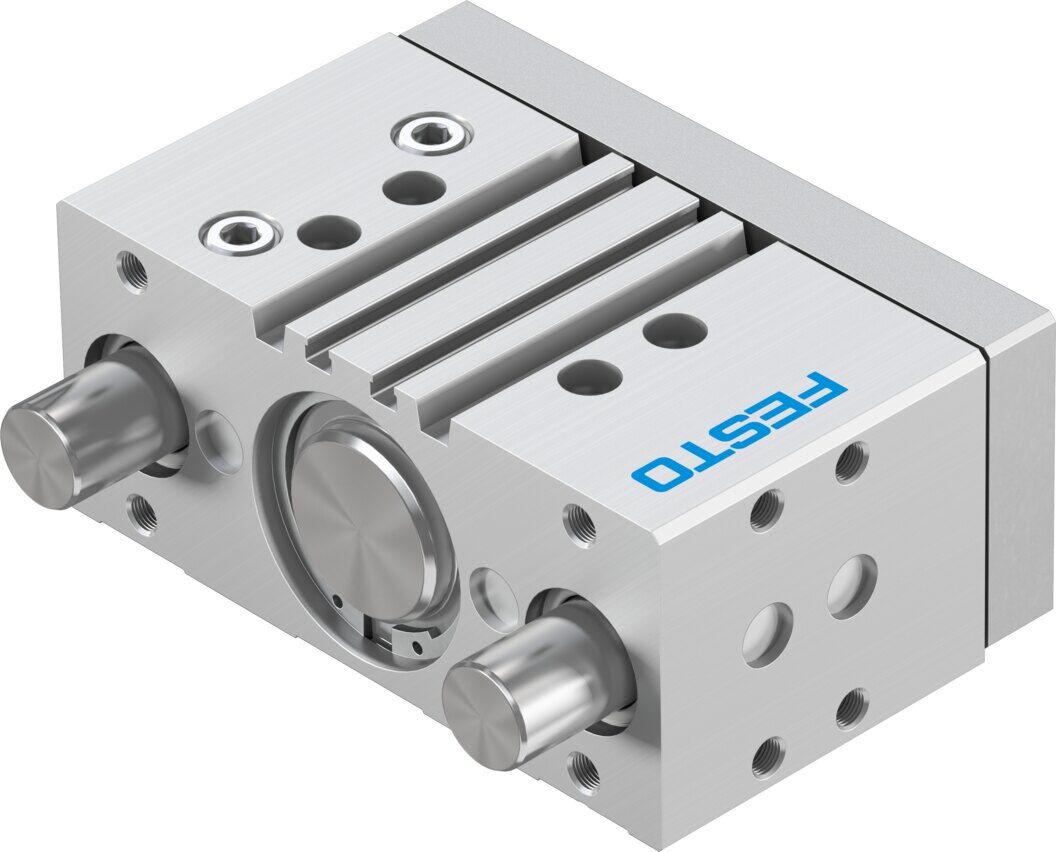

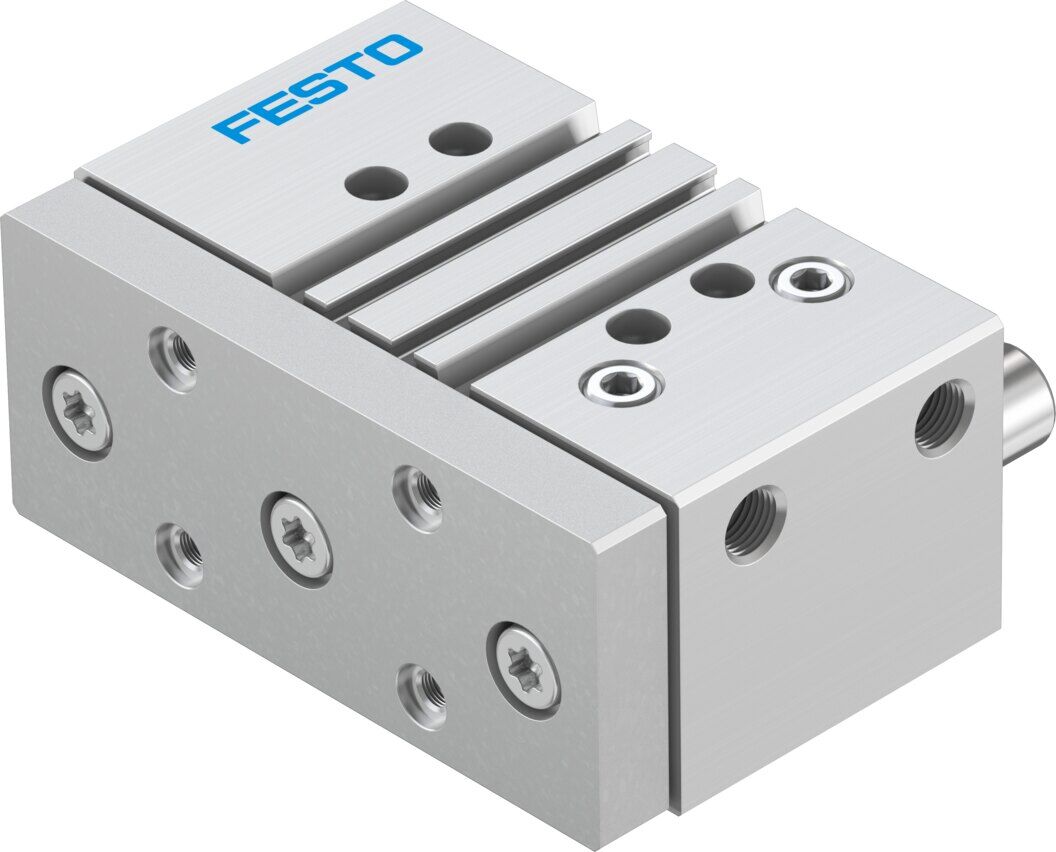

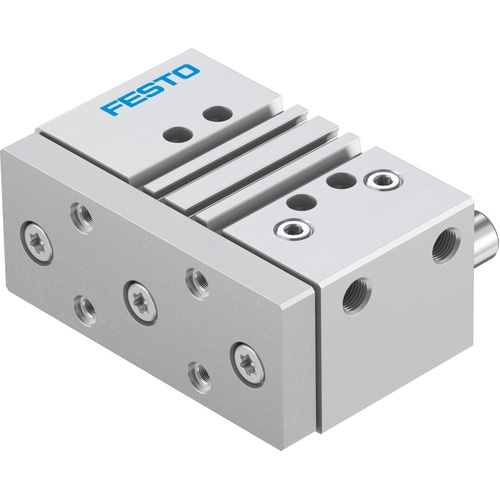

Guided driveDFM-50-25-P-A-KF

170946

GTIN: 4052568140281

Piston diameter
50 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
1178 N
Stroke
25 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch



Technical Data Guided drive DFM-50-25-P-A-KF

  • Distance from centre of gravity of load to yoke plate xs50 mm
  • Stroke25 mm
  • Piston diameter50 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Max. speed0.6 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions1 J
  • Max. force Fy1487 N
  • Max. force Fy static1600 N
  • Max. force Fz1487 N
  • Max. force Fz static1600 N
  • Max. moment Mx81.79 Nm
  • Max. torque Mx static88 Nm
  • Max. moment My31.98 Nm
  • Max. torque My static34.4 Nm
  • Max. moment Mz31.98 Nm
  • Max. torque Mz static34.4 Nm
  • Max. permissible torque load Mx as a function of stroke19.35 Nm
  • Max. effective load dependent upon stroke at defined distance xs235 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1057 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
  • Moving mass1796 g
  • Product weight3212 g
  • Centre of gravity of moving mass as a function of stroke30.6 mm
  • alternative connectionsSee product drawing
  • Pneumatic connectionG1/4
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
