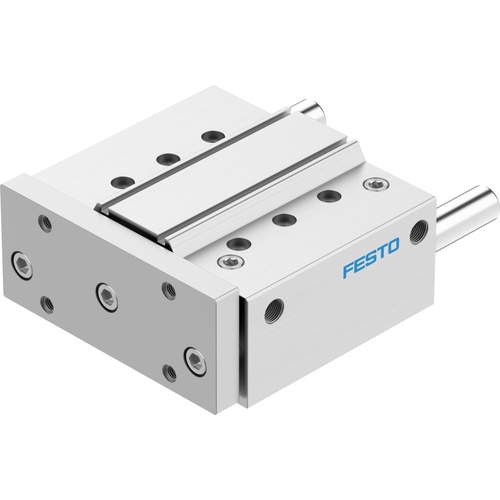

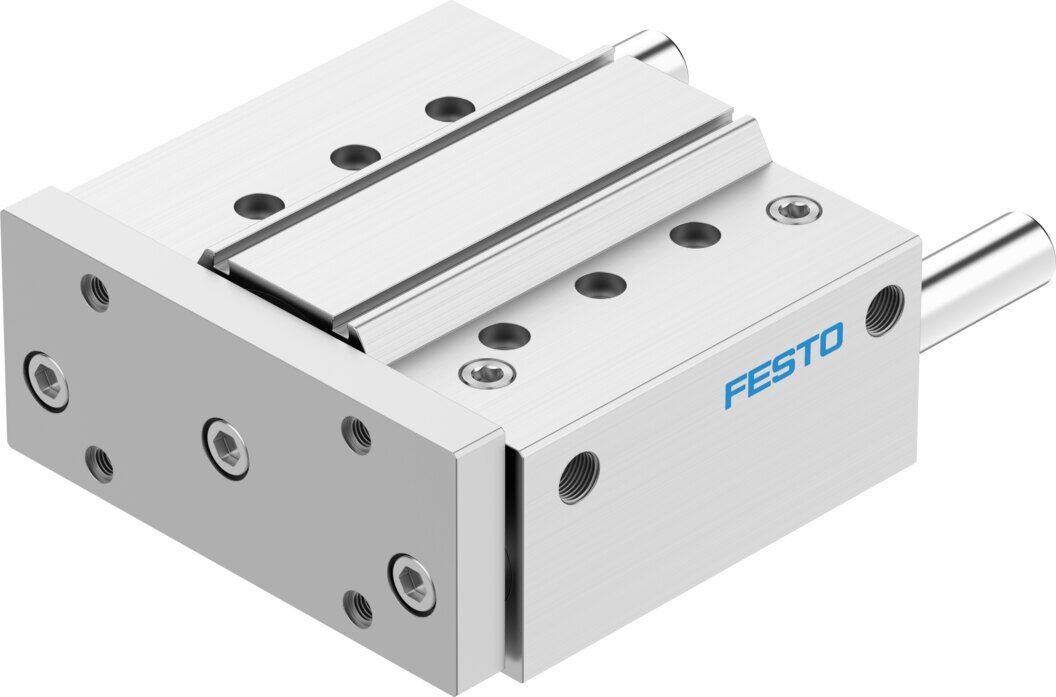

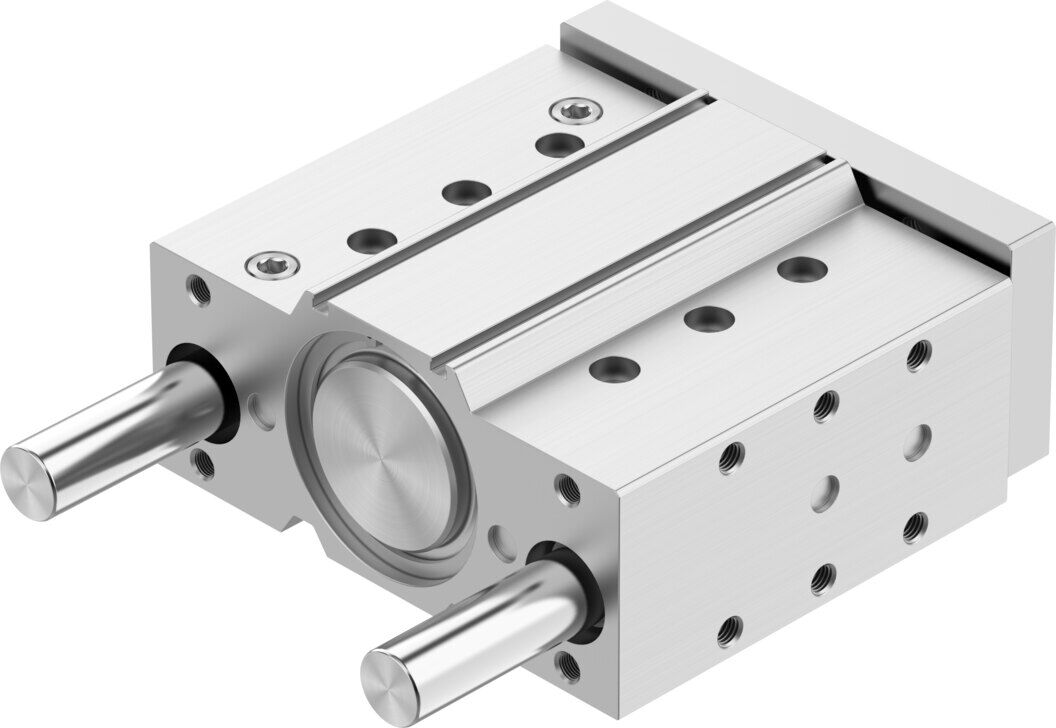

Guided driveDFM-80-100-P-A-KF

170963

GTIN: 4052568140441

Piston diameter
80 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
3016 N
Stroke
100 mm
Cushioning
Elastic cushioning rings/plates at both ends
Position detection
Via proximity switch





Technical Data Guided drive DFM-80-100-P-A-KF

  • Distance from centre of gravity of load to yoke plate xs125 mm
  • Stroke100 mm
  • Piston diameter80 mm
  • Operating mode, drive unitYoke
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Position detectionVia proximity switch
  • Symbol00991737
  • Operating pressure0.05 MPa ... 1 MPa
  • Operating pressure0.5 bar ... 10 bar
  • Max. speed0.4 m/s
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-5 °C ... 60 °C
  • Impact energy in end positions0.75 J
  • Max. force Fy2048 N
  • Max. force Fy static3120 N
  • Max. force Fz2048 N
  • Max. force Fz static3120 N
  • Max. moment Mx158.67 Nm
  • Max. torque Mx static241.8 Nm
  • Max. moment My100.35 Nm
  • Max. torque My static152.9 Nm
  • Max. moment Mz100.35 Nm
  • Max. torque Mz static152.9 Nm
  • Max. permissible torque load Mx as a function of stroke33.3 Nm
  • Max. effective load dependent upon stroke at defined distance xs318 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2827 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016 N
  • Moving mass4837 g
  • Product weight9500 g
  • Centre of gravity of moving mass as a function of stroke74.1 mm
  • alternative connectionsSee product drawing
  • Pneumatic connectionG3/8
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy
  • Material sealsNBR
  • Material housingWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
