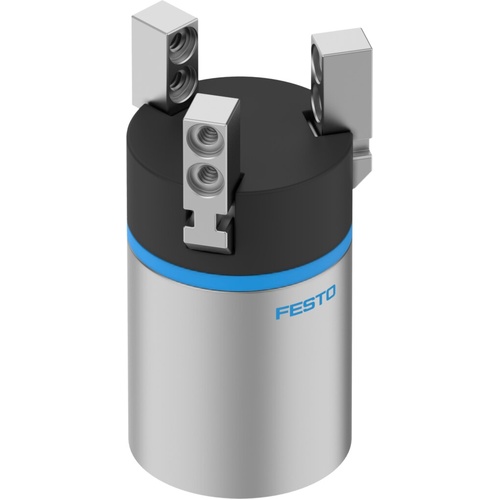

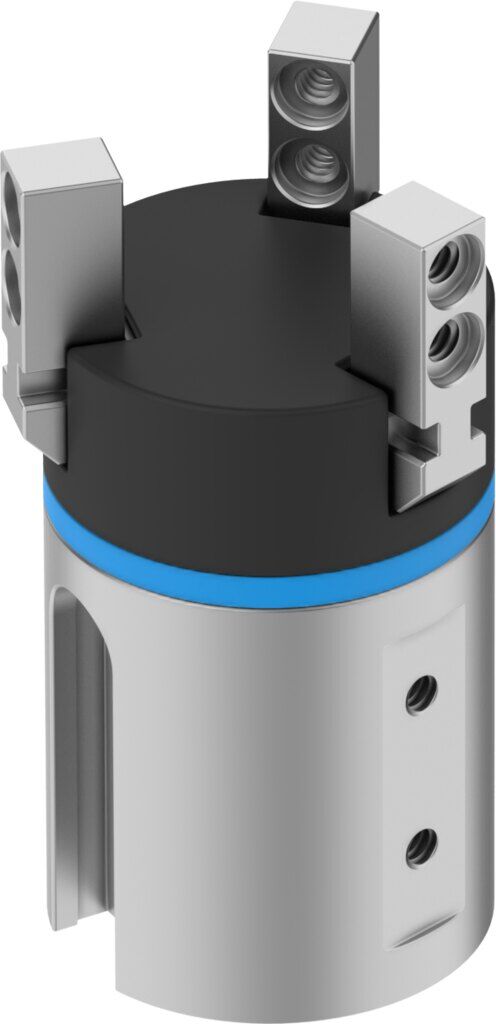

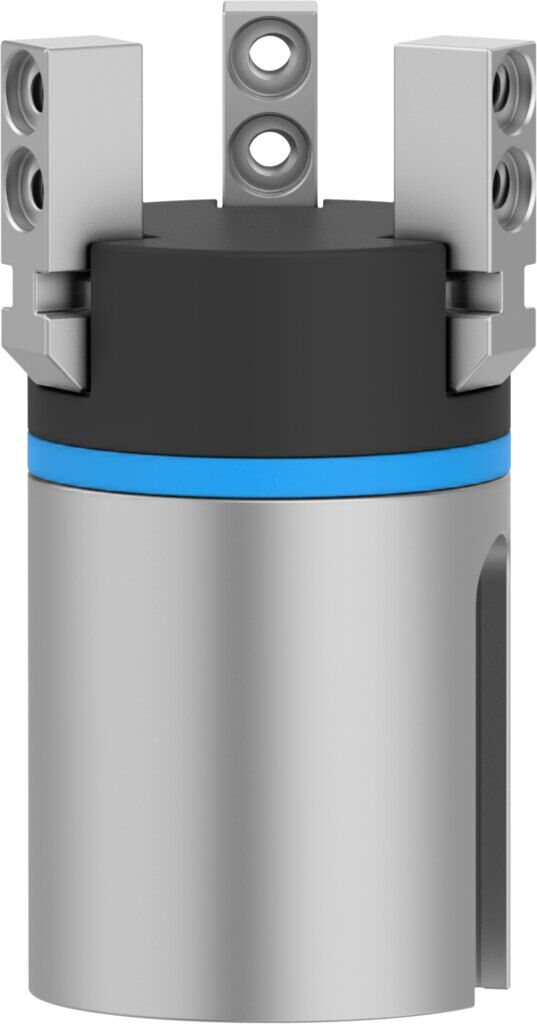

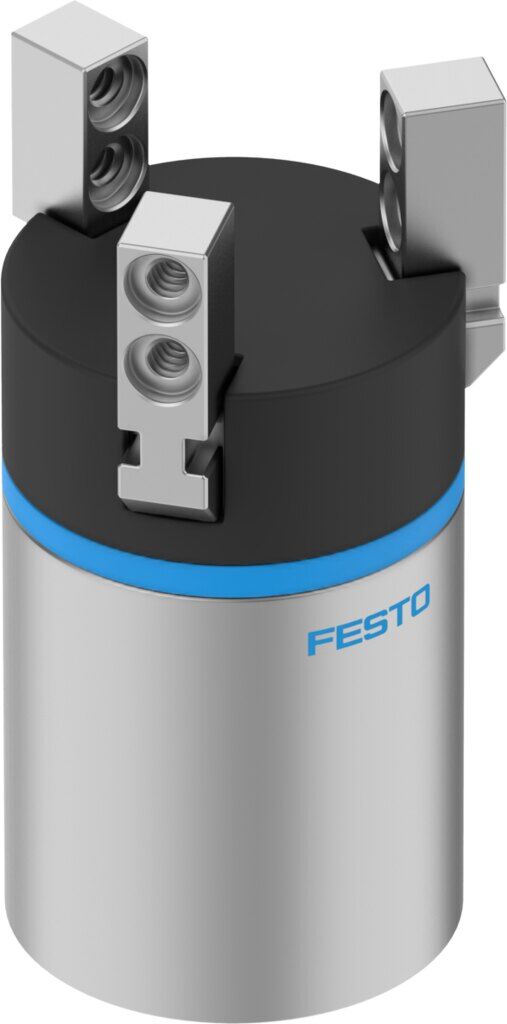

Three-point gripper

DHDS-16-A-NC

1259492





GTIN: 4052568229290

Stroke per gripper jaws
2.5 mm
Position detection
Via Hall sensor
Gripper force back-up
During closing



Technical Data

  • Size16
  • Stroke per gripper jaws2.5 mm
  • Max. replacement accuracy≤0.2 mm
  • Max. angular gripper jaw backlash ax, ay≤0.5 deg
  • Max. gripper jaw backlash Sz≤0.02 mm
  • Rotationally symmetrical≤0.2 mm
  • Repetition accuracy, gripper≤0.04 mm
  • Number of gripper jaws3
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • Gripper function3-point
  • Gripper force back-upDuring closing
  • DesignLever Force pilot operated motion sequence
  • Position detectionVia Hall sensor
  • Symbol00995947
  • Operating pressure4 bar ... 8 bar
  • Max. operating frequency of gripper≤4 Hz
  • Min. opening time at 0.6 MPa (6 bar, 87 psi)31 ms
  • Min. closing time at 0.6 MPa (6 bar, 87 psi)34 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils Metals with more than 1% of copper as an alloy component are excluded from use. Exceptions are printed ci
  • Ambient temperature5 °C ... 60 °C
  • Mass moment of inertia0.139 kgcm²
  • Max. force on gripper jaw Fz static50 N
  • Max. torque at gripper Mx static2 Nm
  • Max. torque at gripper My static2 Nm
  • Max. torque at gripper Mz static2 Nm
  • Lubrication interval for guide components10 MioCyc
  • Max. mass per external gripper finger50 g
  • Product weight99 g
  • Type of mountingVia female thread and dowel pin
  • Pneumatic connectionM3
  • Note on materialsRoHS-compliant
  • Material cover capPA
  • Material housingHard anodised wrought aluminium alloy
  • Material gripper jawsHigh-alloy stainless steel
SKU 1259492
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
