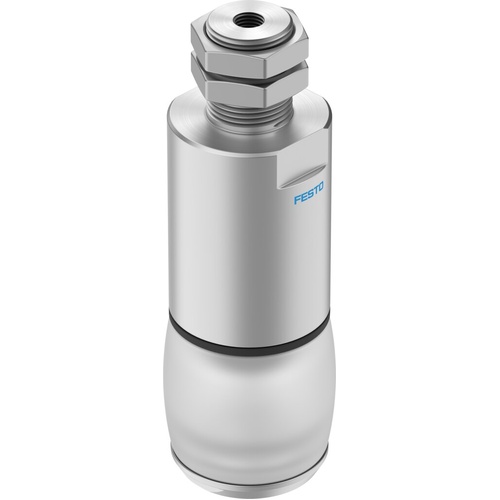

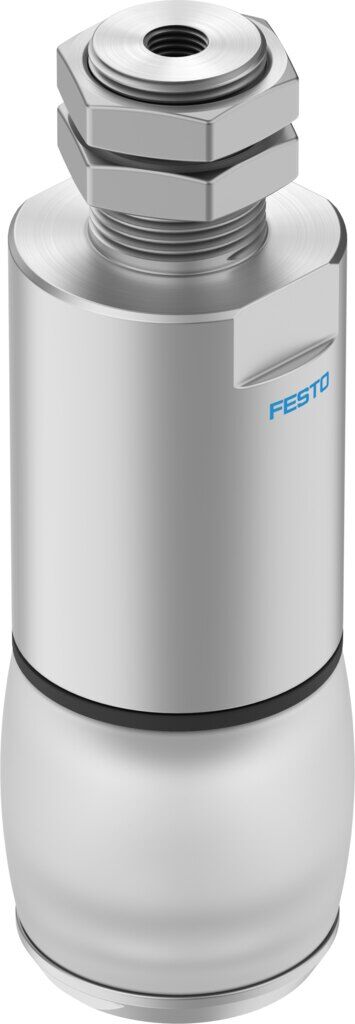

Bellow gripper

DHEB-51-E-D-S-L

1320763





GTIN: 4052568229832

Min. opening time at 0.6 MPa (6 bar, 87 psi)
30 ms
Min. closing time at 0.6 MPa (6 bar, 87 psi)
70 ms
Min. ø to be gripped
54 mm
Max. ø to be gripped
68 mm
Guide value for effective load

Technical Data

  • Size51
  • Stroke of bellows18 mm
  • Min. ø to be gripped54 mm
  • Max. ø to be gripped68 mm
  • Mounting positionoptional
  • Mode of operationSingle-acting Closed
  • Gripper functionAdaptive
  • DesignContracting diaphragm Force pilot operated motion sequence
  • GuideBasic guide
  • Position detectionVia proximity switch
  • Operating pressure4 bar ... 8 bar
  • Reset pressure<1 bar
  • Max. operating frequency of gripper≤4 Hz
  • Min. opening time at 0.6 MPa (6 bar, 87 psi)30 ms
  • Min. closing time at 0.6 MPa (6 bar, 87 psi)70 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature5 °C ... 60 °C
  • Average replacement interval for the bellows1 MioCyc
  • Guide value for effective load2.5 kg
  • Product weight490 g
  • Type of mountingVia male thread Via lock nut
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material bellowsVMQ (silicone)
  • Material housingAluminium Anodised





SKU 1320763
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
