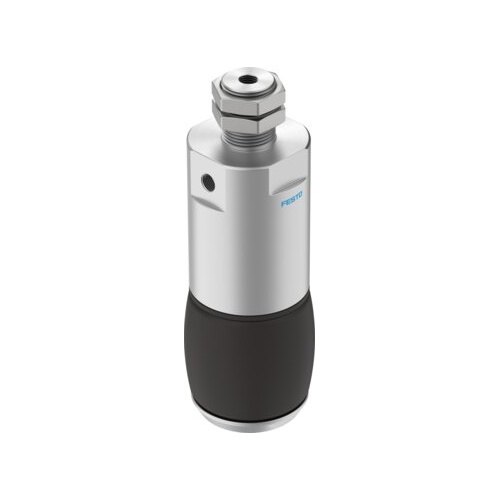

Bellow gripper

DHEB-63-E-D-E-P

1320797





GTIN: 4052568230173

Min. opening time at 0.6 MPa (6 bar, 87 psi)
40 ms
Min. closing time at 0.6 MPa (6 bar, 87 psi)
100 ms
Min. ø to be gripped
66 mm
Max. ø to be gripped
85 mm
Guide value for effective load
5.1 kg

Technical Data

  • Size63
  • Stroke of bellows25 mm
  • Min. ø to be gripped66 mm
  • Max. ø to be gripped85 mm
  • Mounting positionoptional
  • Mode of operationSingle-acting Closed
  • Gripper functionAdaptive
  • DesignContracting diaphragm Force pilot operated motion sequence
  • GuideBasic guide
  • Position detectionVia proximity switch
  • Operating pressure4 bar ... 8 bar
  • Reset pressure<1 bar
  • Max. operating frequency of gripper≤4 Hz
  • Min. opening time at 0.6 MPa (6 bar, 87 psi)40 ms
  • Min. closing time at 0.6 MPa (6 bar, 87 psi)100 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Ambient temperature5 °C ... 60 °C
  • Average replacement interval for the bellows0.5 MioCyc
  • Guide value for effective load5.1 kg
  • Product weight800 g
  • Type of mountingVia male thread Via lock nut
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material bellowsEPDM
  • Material housingAluminium Anodised





SKU 1320797
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
