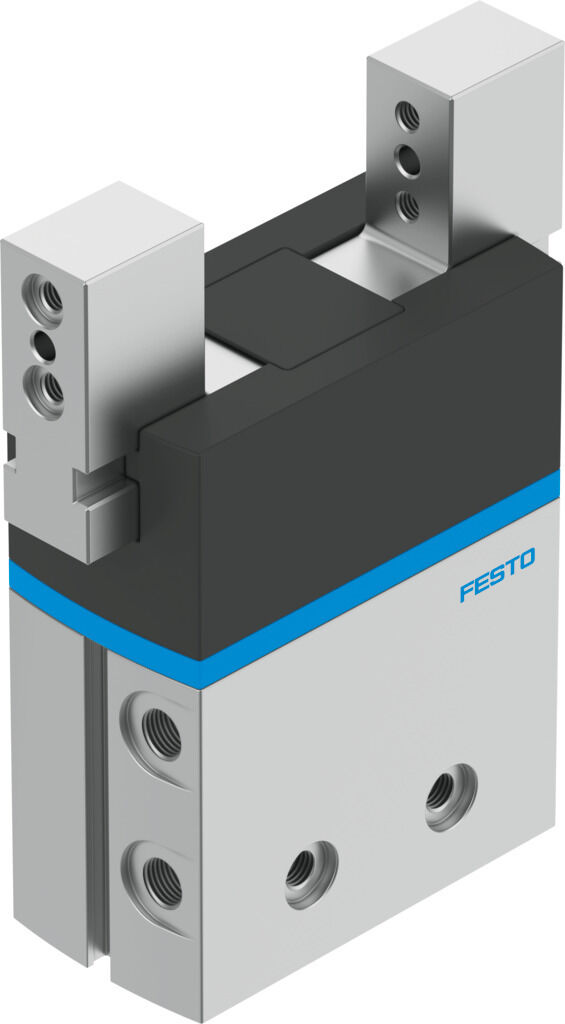

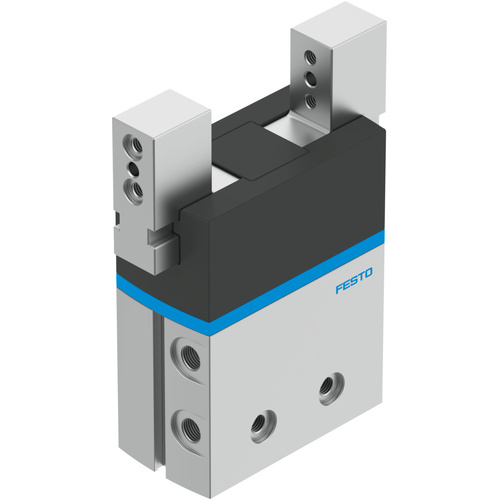

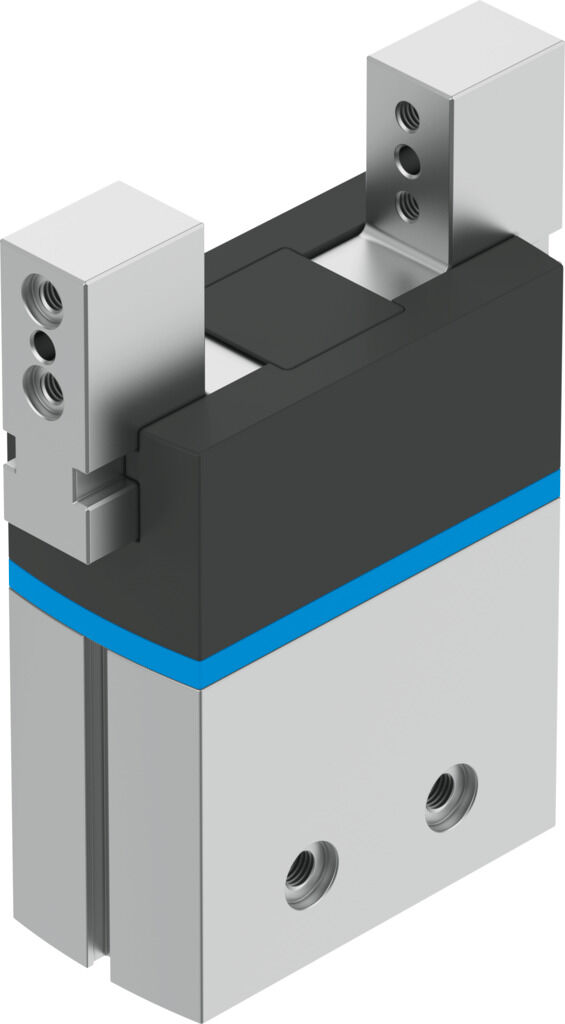

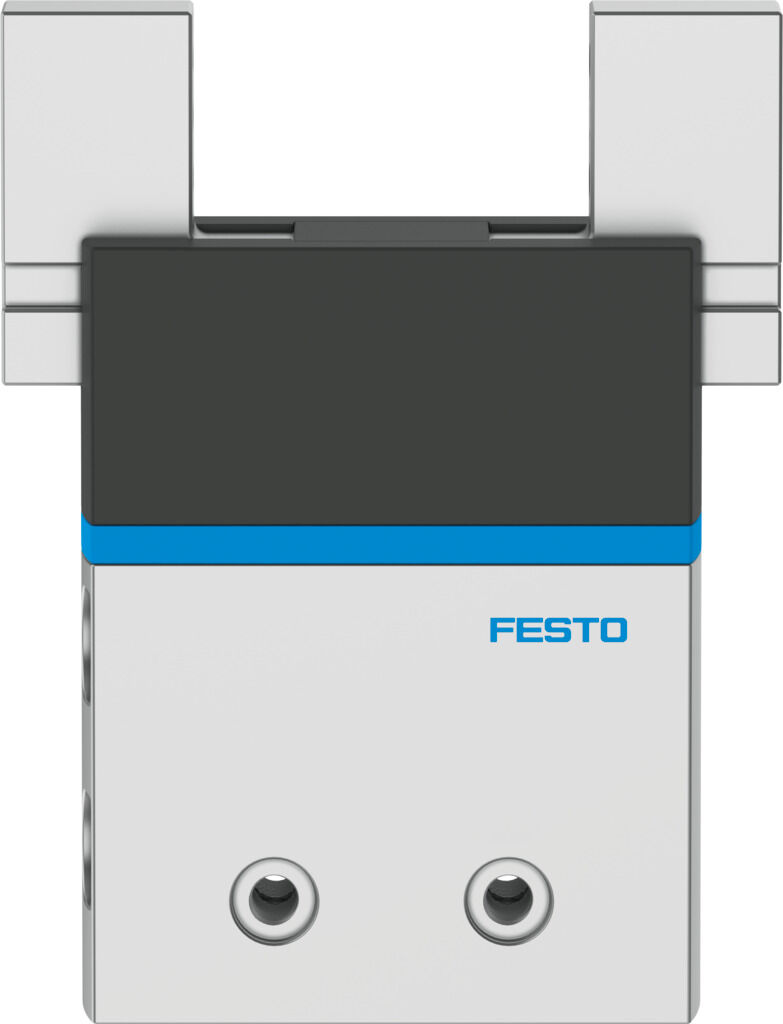

Parallel gripper

GTIN: 4052568229269

Technical Data

• Size35
• Stroke per gripper jaws12.5 mm
• Max. replacement accuracy≤0.2 mm
• Max. angular gripper jaw backlash ax, ay<0.5 deg
• Max. gripper jaw backlash Sz<0.02 mm
• Rotationally symmetrical≤0.2 mm
• Repetition accuracy, gripper<0.02 mm
• Number of gripper jaws2
• Drive systemPneumatic
• Mounting positionoptional
• Mode of operationDouble-acting
• Gripper functionParallel
• Gripper force back-upDuring opening
• DesignLever Force pilot operated motion sequence
• GuidePlain-bearing guide
• Position detectionVia proximity switch
• Symbol00995947
• Operating pressure0.4 MPa ... 0.8 MPa
• Operating pressure4 bar ... 8 bar
• Operating pressure58 psi ... 116 psi
• Max. operating frequency of gripper2 Hz
• Min. opening time at 0.6 MPa (6 bar, 87 psi)88 ms
• Min. closing time at 0.6 MPa (6 bar, 87 psi)151 ms
• Max. mass per external gripper finger450 g
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils Metals with more than 1% of copper as an alloy component are excluded from use. Exceptions are printed ci
• Ambient temperature5 °C ... 60 °C
• Mass moment of inertia12.832 kgcm²
• Max. force on gripper jaw Fz static450 N
• Max. torque at gripper Mx static50 Nm
• Max. torque at gripper My static50 Nm
• Max. torque at gripper Mz static50 Nm
• Lubrication interval for guide components10 MioCyc
• Product weight1345 g
• Type of mountingEither: Via female thread and centring sleeve Via through-hole and centring sleeve
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material cover capPA
• Material housingHard anodised wrought aluminium alloy
• Material gripper jawsHigh-alloy stainless steel
