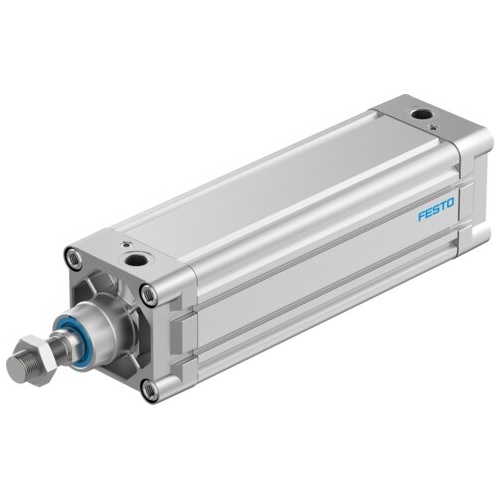

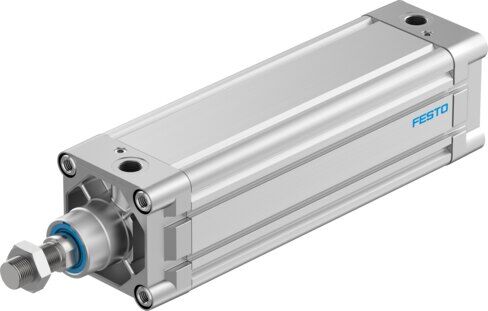

ISO cylinder

DNC-63-150-PPV-A

1922639





GTIN: 4052568250041

Mode of operation
Double-acting
Piston diameter
63 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
1870 N
Stroke
150 mm
Cushioning
Pneumatic cushioning, adjustable at both ends

Technical Data

  • Stroke150 mm
  • Piston diameter63 mm
  • Piston rod threadM16x1.5
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1.2 MPa
  • Operating pressure0.6 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.5 J
  • Cushioning length22 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870 N
  • Moving mass for 0 mm stroke663 g
  • Additional moving mass per 10 mm stroke25 g
  • Basic weight for 0 mm stroke1709 g
  • Additional weight per 10 mm stroke73 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG3/8
  • Note on materialsRoHS-compliant
  • Material coverDie-cast aluminium Coated
  • Material sealsTPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelWrought aluminium alloy Smooth anodised



SKU 1922639
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
