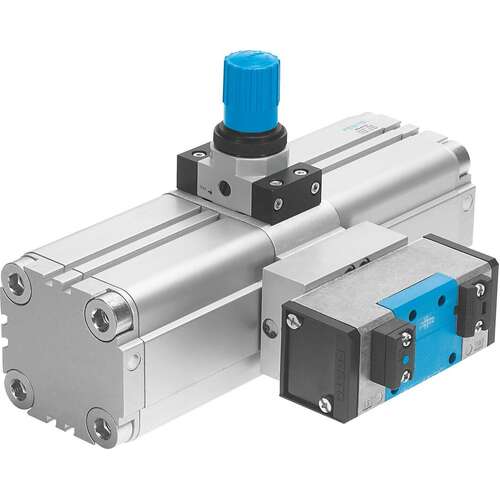

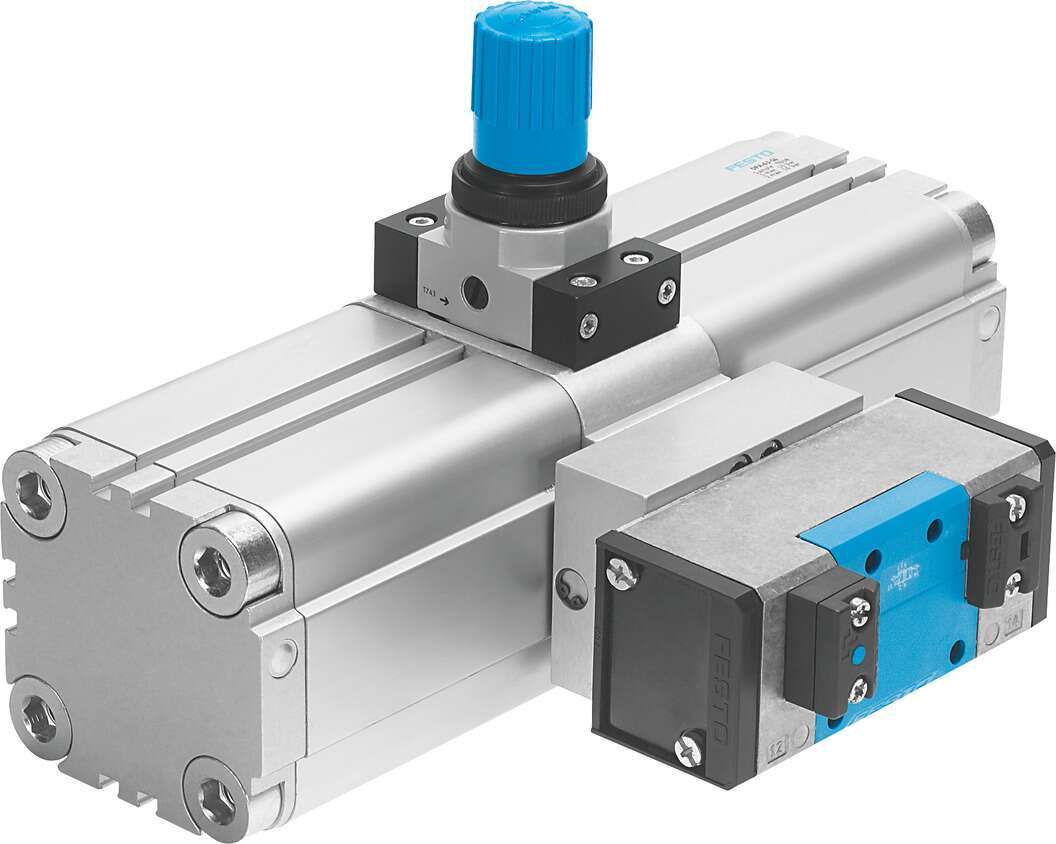

Pressure booster

DPA-100-10-A

549401

Technical Data

• Piston diameter100 mm
• Mounting positionoptional
• DesignWith piston magnet
• Symbol00991432
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4
• Output pressure 20.4 MPa ... 1 MPa
• Output pressure 24 bar ... 10 bar
• Output pressure 258 psi ... 145 psi
• Operating pressure0.2 MPa ... 0.8 MPa
• Operating pressure2 bar ... 8 bar
• Operating pressure29 psi ... 116 psi
• Pressure regulation range0.4 MPa ... 1 MPa
• Pressure regulation range4 bar ... 10 bar
• Pressure regulation range58 psi ... 145 psi
• Inlet pressure 12 bar ... 8 bar
• Inlet pressure 10.2 MPa ... 0.8 MPa
• Inlet pressure 129 psi ... 116 psi
• Note on pressure regulation rangeIf the controller spring is tensioned to the maximum, the maximum output pressure can be exceeded by 40%.
• Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]
• Note on operating and pilot mediumLubricated operation not possible
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature5 °C ... 60 °C
• Ambient temperature5 °C ... 60 °C
• Product weight13000 g
• Type of mountingVia female thread
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Pneumatic connection, port 3G1/2
• Note on materialsRoHS-compliant

GTIN: 4052568190507
