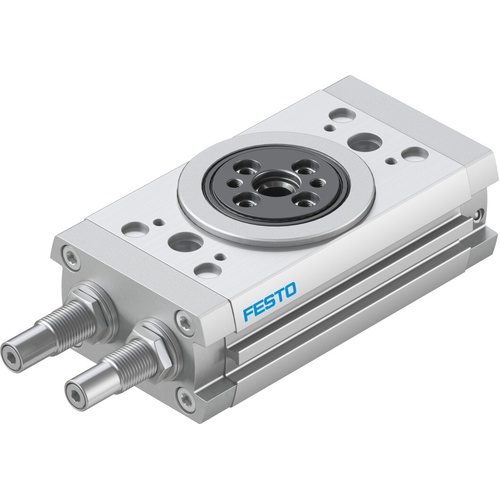

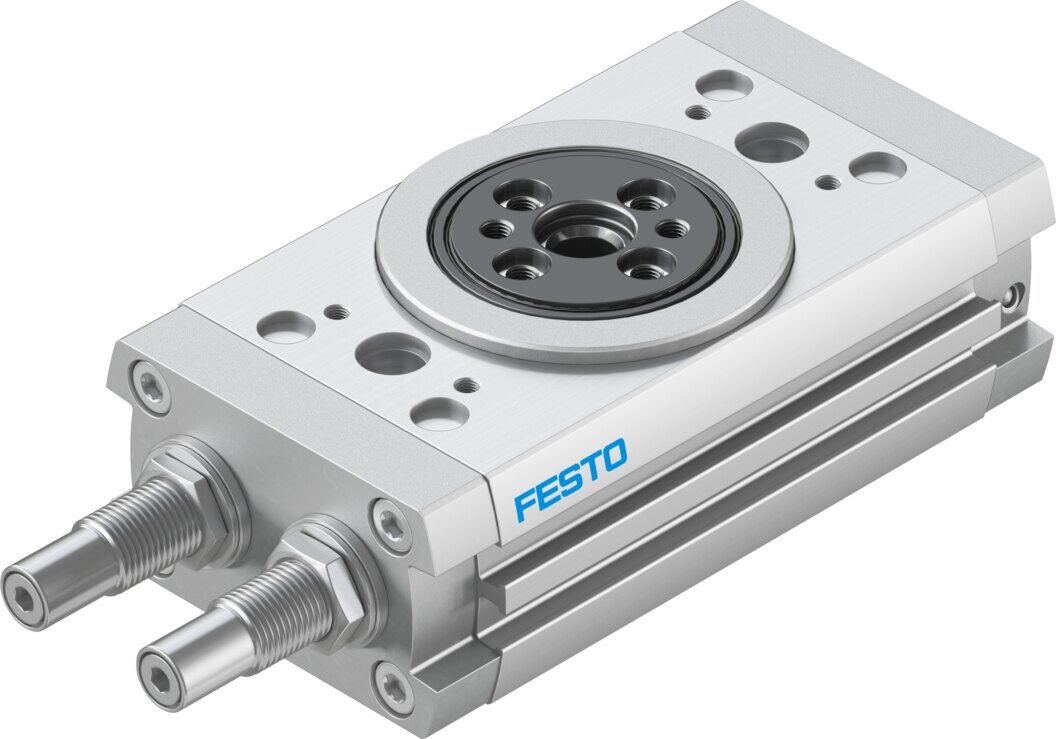

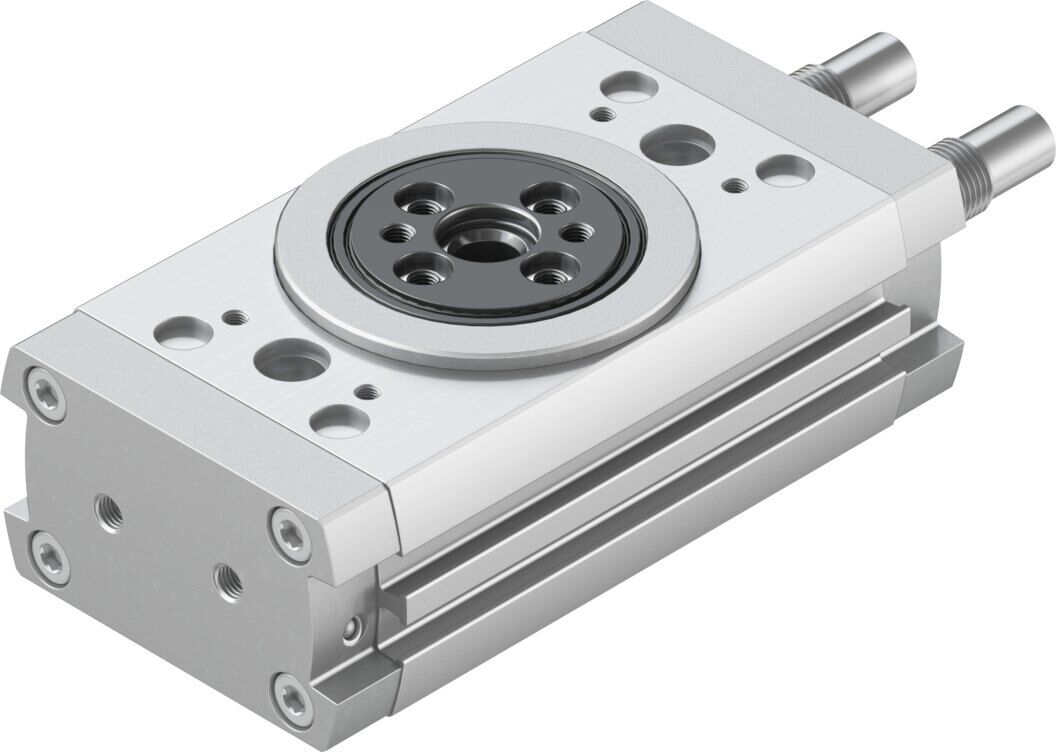

Semi-rotary drive

DRRD-16-180-FH-Y9A

1644389





GTIN: 4052568243340

Size
16
Swivel angle
180 deg
Permissible mass moment of inertia
0.07 kgm²
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
1.59 Nm
Position detection
Via proximity switch


Technical Data

  • Size16
  • Cushioning angle43 deg
  • Setting range of swivel angle for each end position+10 /-170 deg
  • Swivel angle180 deg
  • CushioningInternal hydraulic cushioning normal
  • Mounting positionAny
  • DesignRack and pinion
  • Position detectionVia proximity switch
  • Symbol00991265
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364 zone III
  • Ambient temperature-10 °C ... 60 °C
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)1.59 Nm
  • Permissible mass moment of inertia0.07 kgm²
  • Product weight650 g
  • Type of mountingWith through-hole With female thread
  • Pneumatic connectionM5
  • Note on materialsRoHS compliant
  • Material drive shaftTempered steel
  • Material coverWrought aluminium alloy anodised
  • Material sealsNBR TPE-U(PU)
  • Material housingSmooth-anodised







SKU 1644389
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
