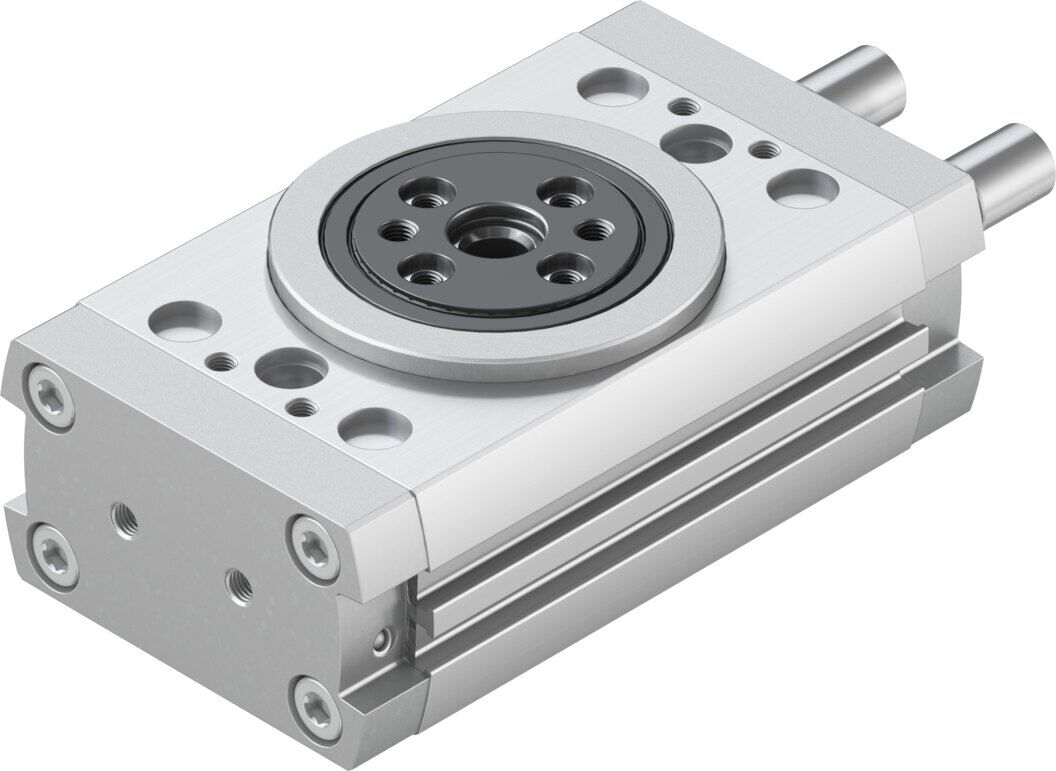

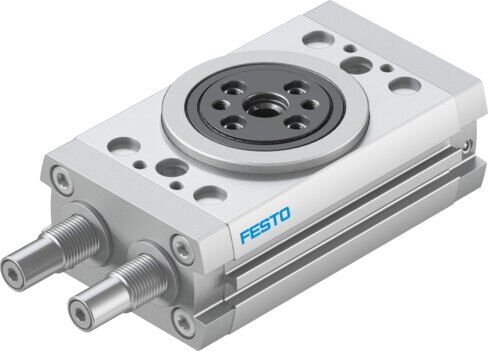

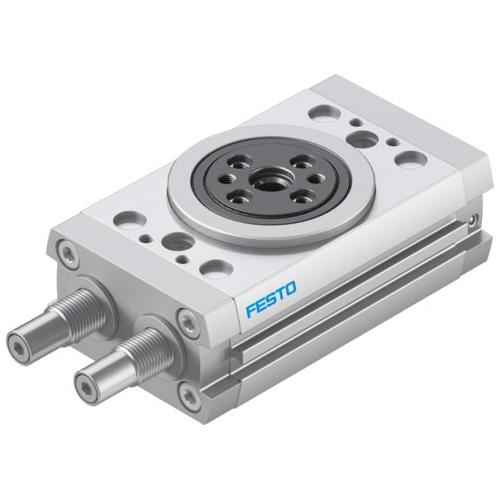

Semi-rotary drive

DRRD-20-180-FH-Y9A

1427379





GTIN: 4052568232580

Size
20
Swivel angle
180 deg
Permissible mass moment of inertia
0.125 kgm²
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
2.41 Nm
Position detection
Via proximity switch

Technical Data

  • Size20
  • Cushioning angle72 deg
  • Setting range of swivel angle for each end position+10/-190 deg
  • Swivel angle180 deg
  • CushioningInternal hydraulic cushioning normal
  • Mounting positionoptional
  • DesignRack and pinion
  • Position detectionVia proximity switch
  • Symbol00991265
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364 zone III
  • Ambient temperature-10 °C ... 60 °C
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)2.41 Nm
  • Permissible mass moment of inertia0.125 kgm²
  • Product weight883 g
  • Type of mountingWith through-hole Via female thread
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material drive shaftTempered steel
  • Material coverWrought aluminium alloy Anodised
  • Material sealsNBR TPE-U(PU)
  • Material housingSmooth anodised





SKU 1427379
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
