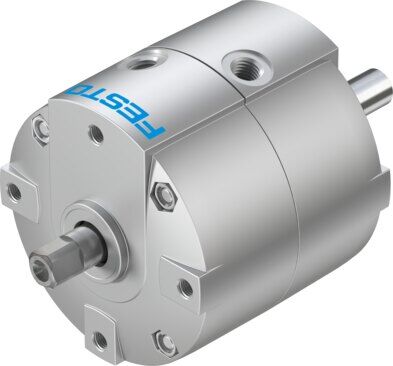

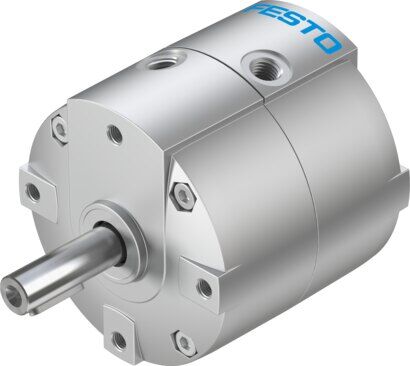

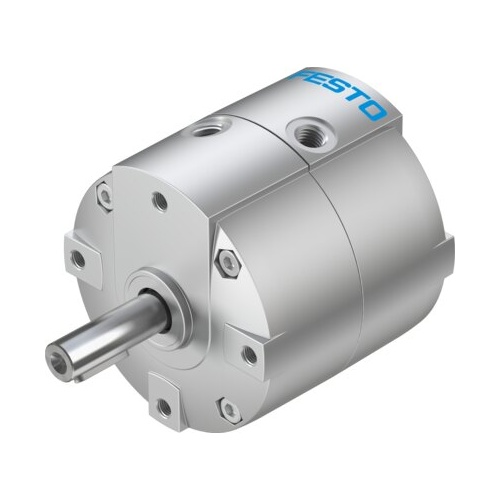

Semi-rotary driveDRVS-32-270-P

1845721

GTIN: 4052568264260

Size
32
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
10 Nm
Swivel angle
0 deg - 270 deg
Pneumatic connection
G1/8
Permissible mass moment of inertia
0.02 kgm²



Technical Data Semi-rotary drive DRVS-32-270-P

  • Size32
  • Cushioning angle0.5 deg
  • Swivel angle0 deg ... 270 deg
  • Permissible stop radius≥28 mm
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionVia proximity switch
  • Symbol00991265
  • VariantsSpigot shaft
  • Operating pressure0.2 MPa ... 0.8 MPa
  • Operating pressure2 bar ... 8 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)2 Hz
  • Repetition accuracy1 deg
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
  • Ambient temperature0 °C ... 60 °C
  • Max. stop force480 N
  • Max. axial force75 N
  • Max. radial force200 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)10 Nm
  • Permissible mass moment of inertia0.02 kgm²
  • Product weight896 g
  • Type of mountingWith female thread
  • Pneumatic connectionG1/8
  • Note on materialsRoHS compliant
  • Material drive shaftNickel-plated steel
  • Material sealsTPE-U(PU)
  • Material housingPainted die cast aluminium
SKU 1845721
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
