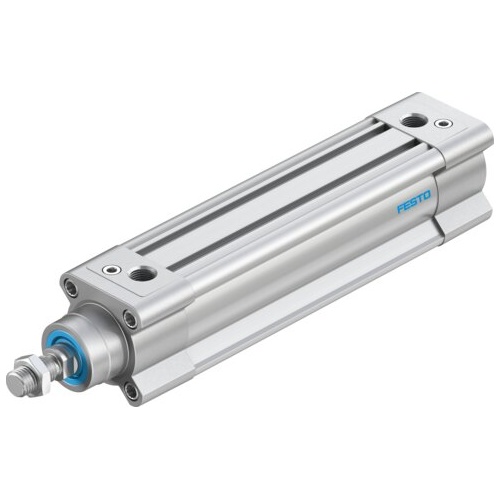

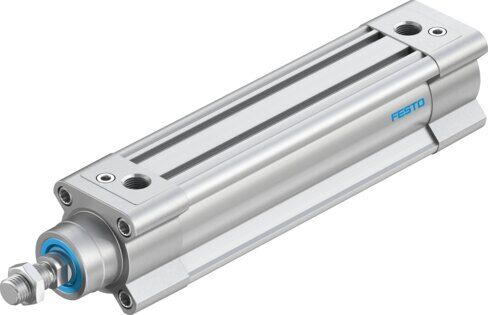

ISO cylinder

DSBC-40-125-PPVA-N3

1376661





GTIN: 4052568016722

Mode of operation
Double-acting
Piston diameter
40 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
754 N
Stroke
125 mm
Cushioning
Pneumatic cushioning, adjustable at both ends

Technical Data

  • Stroke125 mm
  • Piston diameter40 mm
  • Piston rod threadM12x1.25
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1.2 MPa
  • Operating pressure0.6 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.7 J
  • Cushioning length19 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
  • Moving mass405 g
  • Moving mass for 0 mm stroke205 g
  • Additional moving mass per 10 mm stroke16 g
  • Product weight1203 g
  • Basic weight for 0 mm stroke740 g
  • Additional weight per 10 mm stroke37 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG1/4
  • Note on materialsRoHS-compliant
  • Material coverCoated die-cast aluminium
  • Material piston sealTPE-U(PU)
  • Material pistonWrought aluminium alloy
  • Material piston rodHigh-alloy steel
  • Material piston rod wiperTPE-U(PU)
  • Buffer seal materialTPE-U(PU)
  • Material of cushioning bossPOM
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
  • Material nutGalvanised steel
  • Material bearingPOM
  • Material collar screwsGalvanised steel





SKU 1376661
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
