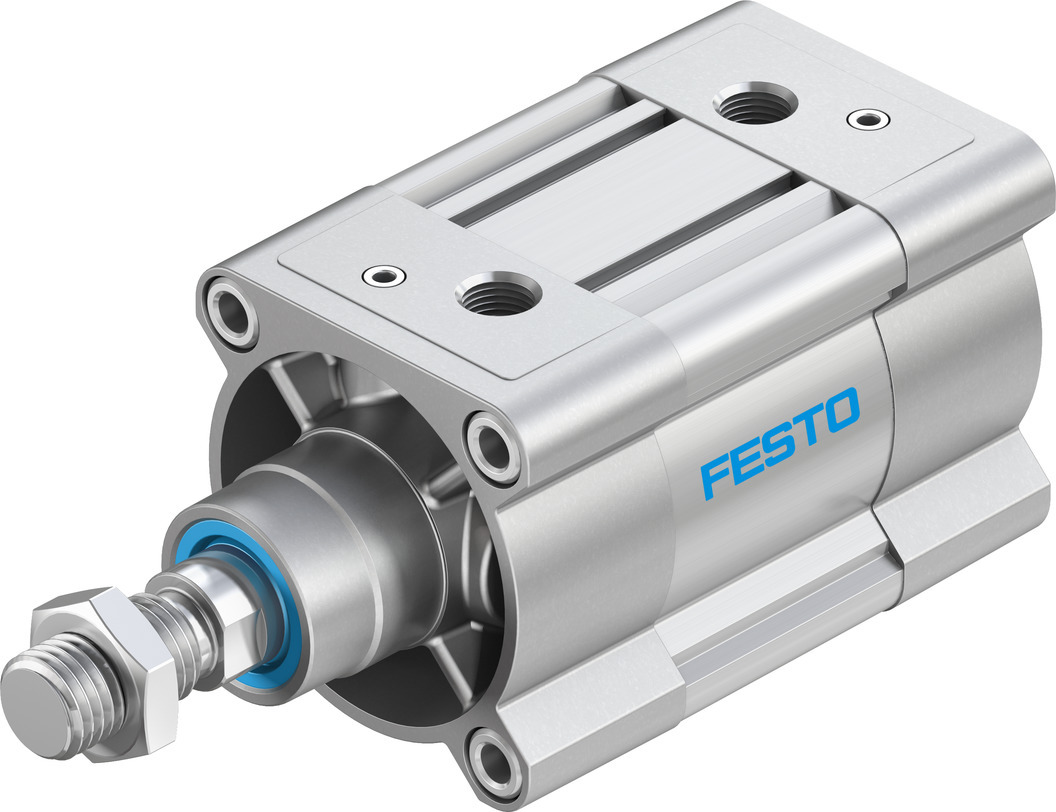

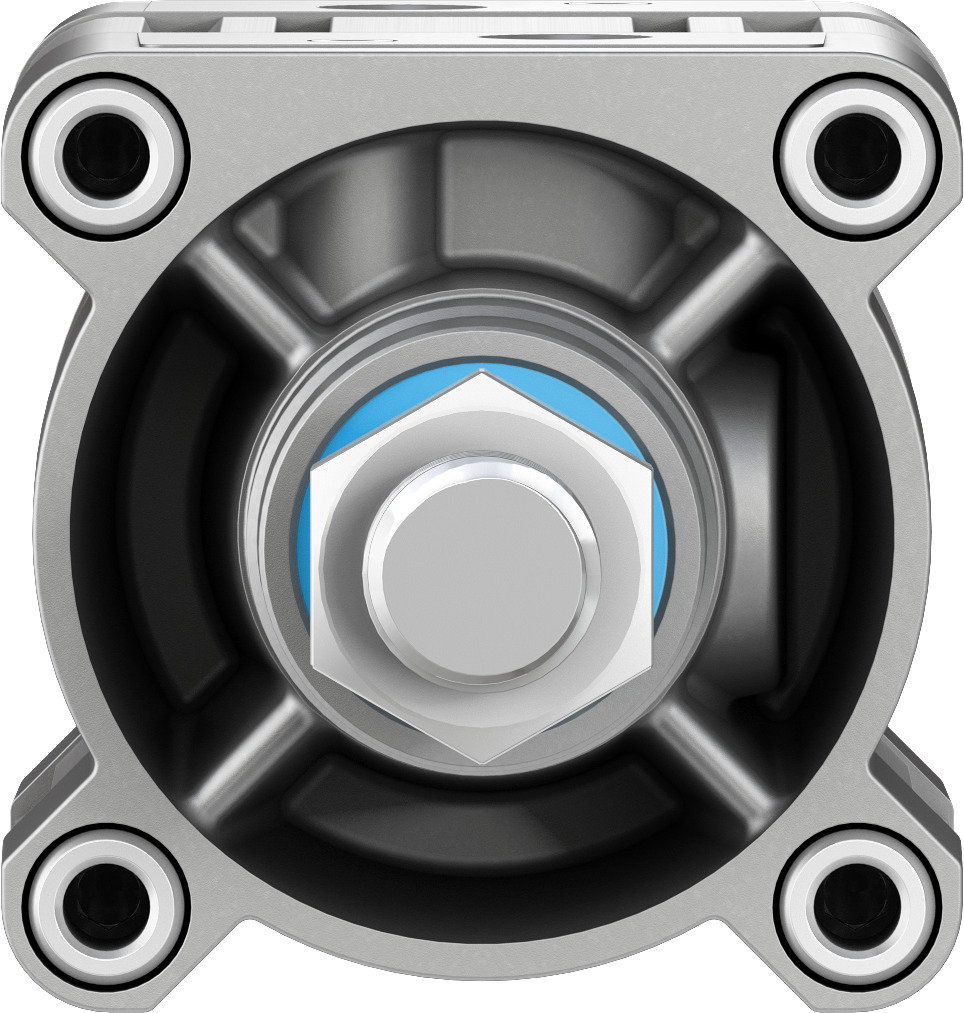

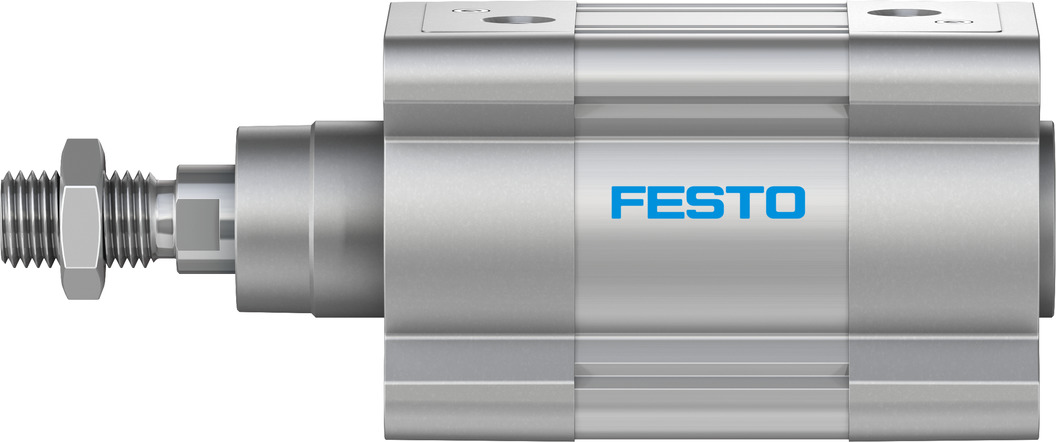

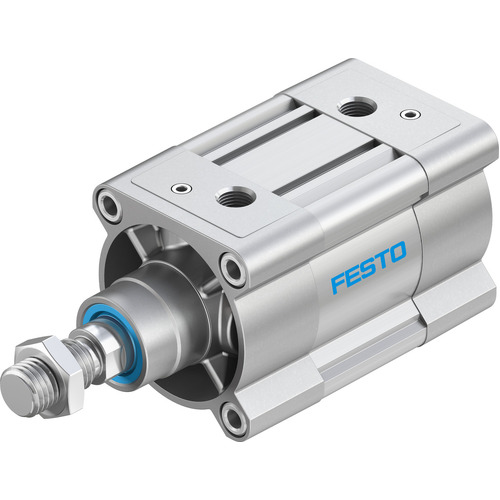

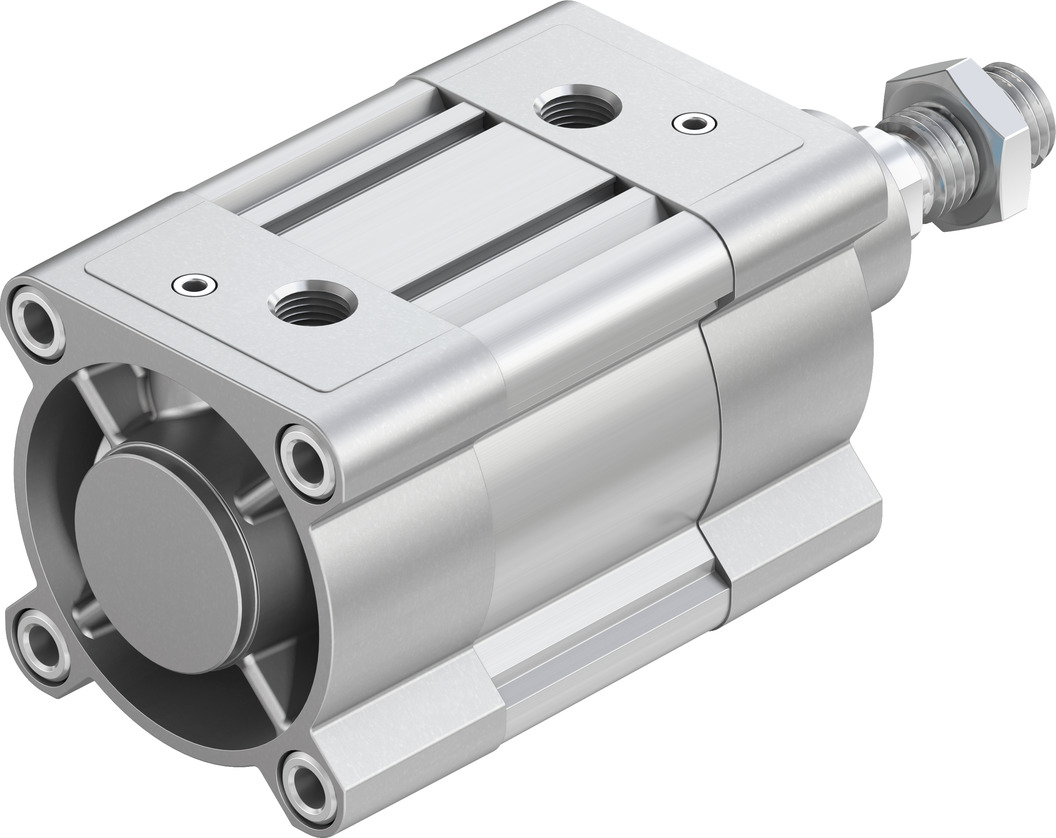

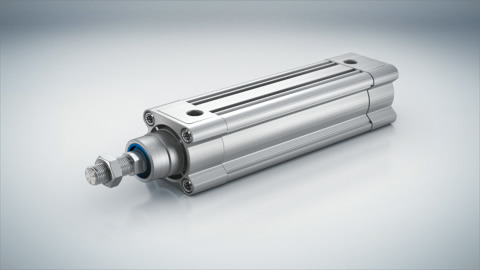

ISO cylinder

DSBC-80-125-PPVA-N3

1383338

DSBC-80-125-PPVA-N3

GTIN: 4052568232016

Downloads

DSBC_EN.PDF

Technical data

CAD data

Links

Spare parts

Pieces

Mode of operation Double-acting

Piston diameter 80 mm Can be changed - Contact us

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3016 N

Stroke 125 mm (Can be changed Contact us)

Cushioning Pneumatic cushioning, adjustable at both ends

Technical Data

• Stroke TBC when ordering mm . We will contact you via email once order is confimed to verfify stroke required
• Piston diameter TBC when ordering mm . We will contact you via email once order is confimed to verfify stroke required
• Piston rod thread M20x1.5
• Cushioning Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Conforms to standard ISO 15552
• Piston-rod end Male thread
• Design Piston Piston rod Profile barrel
• Position detection Via proximity switch
• Symbo l00991235
• Variants Piston rod at one end
• Operating pressure 0.04 MPa ... 1.2 MPa
• Operating pressure 0.4 bar ... 12 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -20 °C ... 80 °C
• Impact energy in end positions 1.8 J
• Cushioning length 31 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 2721 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3016 N
• Moving mass for 0 mm stroke 810 g
• Additional moving mass per 10 mm stroke 39 g
• Basic weight for 0 mm stroke 2660 g
• Additional weight per 10 mm stroke 92 g
• Type of mounting Either: Via female thread With accessories
• Pneumatic connection G3/8
• Note on materials RoHS-compliant
• Material cover Die-cast aluminium, coated
• Material piston seal TPE-U(PU)
• Material piston Wrought aluminium alloy
• Material piston rod High-alloy steel
• Material piston rod wiper TPE-U(PU)
• Buffer seal materia TPE-U(PU)
• Cushioning piston material POM
• Material cylinder barrel Smooth-anodised wrought aluminium alloy
• Material nut Galvanised steel
• Material bearing POM
• Material collar screws Galvanised steel
