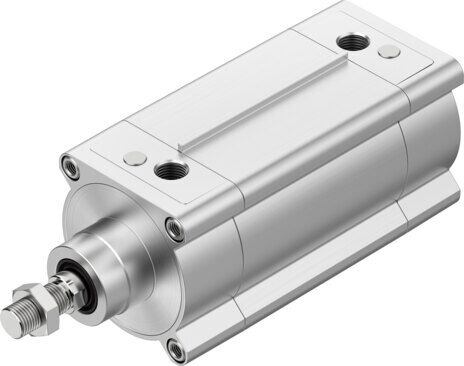

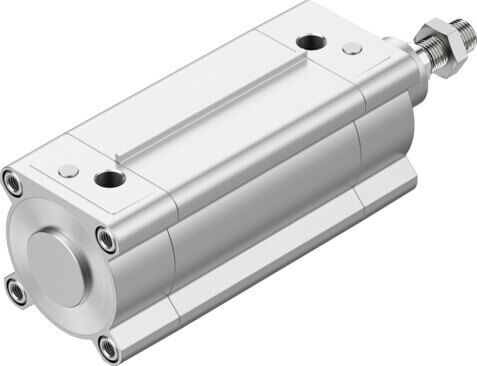

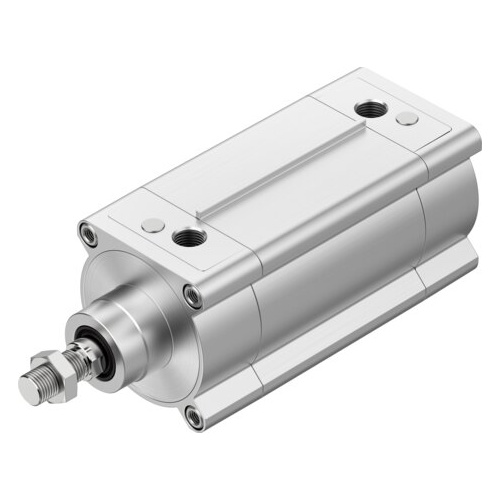

ISO cylinder

DSBF-C-125-50-PPVA-N3-R

1785014





GTIN: 4052568248246


Mode of operation
Double-acting
Piston diameter
125 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
7363 N
Stroke
50 mm
Cushioning
Pneumatic cushioning, adjustable at both ends

Technical Data

  • Stroke50 mm
  • Piston diameter125 mm
  • Piston rod threadM27x2
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • Operating pressure0.02 MPa ... 1 MPa
  • Operating pressure0.2 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions3.3 J
  • Cushioning length45 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke6881 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke7363 N
  • Moving mass2560 g
  • Moving mass for 0 mm stroke2245 g
  • Additional moving mass per 10 mm stroke63 g
  • Product weight7743 g
  • Basic weight for 0 mm stroke6928 g
  • Additional weight per 10 mm stroke163 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG1/2
  • Note on materialsRoHS-compliant
  • Material coverCoated die-cast aluminium
  • Material piston sealTPE-U(PU)
  • Material pistonWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
  • Material piston rod wiperTPE-U(PU)
  • Buffer seal materialTPE-U(PU)
  • Material of cushioning bossPOM
  • Material cylinder barrelAnodised wrought aluminium alloy
  • Material nutHigh-alloy stainless steel
  • Material bearingPOM
  • Material collar screwsGalvanised steel
