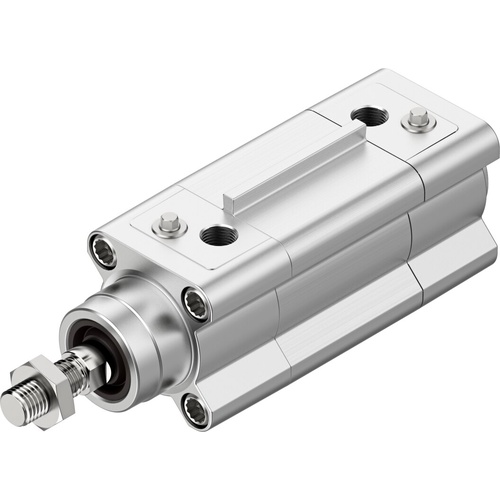

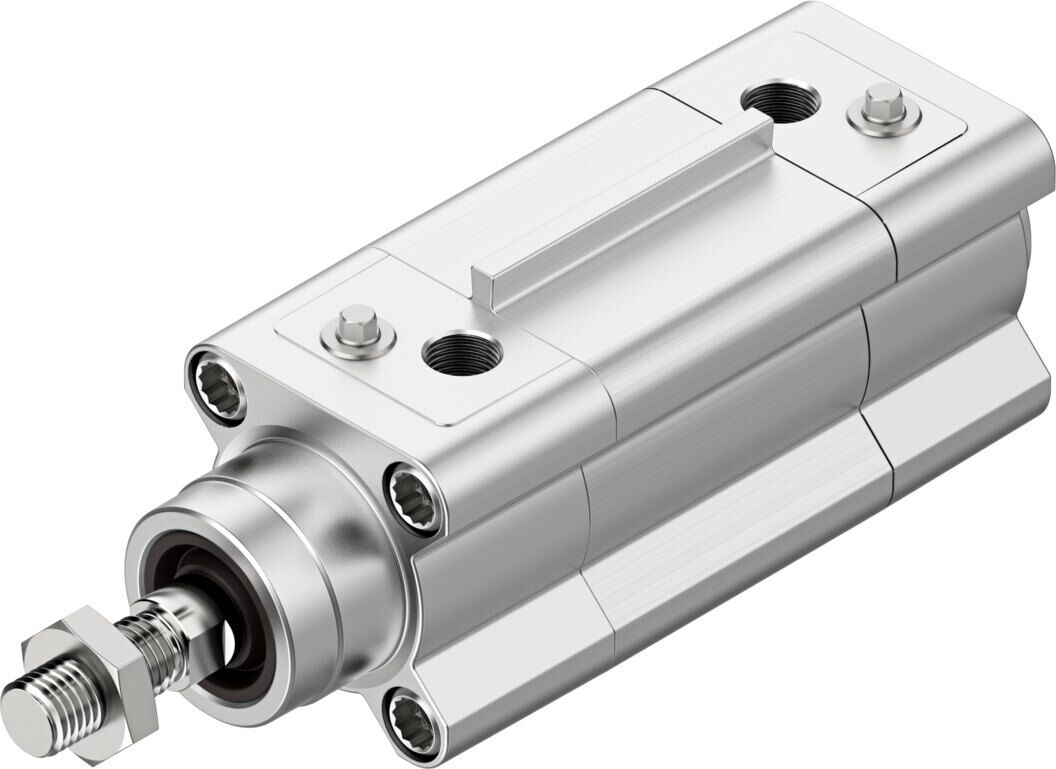

FESTO DSBF-C-40-160-PPVA-N3-R standards-based cylinder 1774265
DSBF-C-40-160-PPVA-N3-R
$377.90
SAVE $45.30 (11%)
In Stock
ISO cylinder
DSBF-C-40-160-PPVA-N3-R
1774265
GTIN: 4052568246945
Technical Data
- Stroke160 mm
- Piston diameter40 mm
- Piston rod threadM12x1.25
- CushioningPneumatic cushioning, adjustable at both ends
- Mounting positionoptional
- Conforms to standardISO 15552
- Piston-rod endMale thread
- DesignPiston Piston rod Profile barrel
- Position detectionVia proximity switch
- Symbol00991235
- Operating pressure0.06 MPa ... 1.2 MPa
- Operating pressure0.6 bar ... 12 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC3 - high corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.7 J
- Cushioning length19 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
- Moving mass460 g
- Moving mass for 0 mm stroke204 g
- Additional moving mass per 10 mm stroke16 g
- Product weight1418 g
- Basic weight for 0 mm stroke778 g
- Additional weight per 10 mm stroke40 g
- Type of mountingVia female thread With accessories
- Pneumatic connectionG1/4
- Note on materialsRoHS-compliant
- Material coverCoated die-cast aluminium
- Material piston sealTPE-U(PU)
- Material pistonWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel
- Material piston rod wiperTPE-U(PU)
- Buffer seal materialTPE-U(PU)
- Material of cushioning bossPOM
- Material cylinder barrelAnodised wrought aluminium alloy
- Material nutHigh-alloy stainless steel
- Material bearingPOM
- Material collar screwsGalvanised steel
Technical Data
- Stroke160 mm
- Piston diameter40 mm
- Piston rod threadM12x1.25
- CushioningPneumatic cushioning, adjustable at both ends
- Mounting positionoptional
- Conforms to standardISO 15552
- Piston-rod endMale thread
- DesignPiston Piston rod Profile barrel
- Position detectionVia proximity switch
- Symbol00991235
- Operating pressure0.06 MPa ... 1.2 MPa
- Operating pressure0.6 bar ... 12 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC3 - high corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.7 J
- Cushioning length19 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
- Moving mass460 g
- Moving mass for 0 mm stroke204 g
- Additional moving mass per 10 mm stroke16 g
- Product weight1418 g
- Basic weight for 0 mm stroke778 g
- Additional weight per 10 mm stroke40 g
- Type of mountingVia female thread With accessories
- Pneumatic connectionG1/4
- Note on materialsRoHS-compliant
- Material coverCoated die-cast aluminium
- Material piston sealTPE-U(PU)
- Material pistonWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel
- Material piston rod wiperTPE-U(PU)
- Buffer seal materialTPE-U(PU)
- Material of cushioning bossPOM
- Material cylinder barrelAnodised wrought aluminium alloy
- Material nutHigh-alloy stainless steel
- Material bearingPOM
- Material collar screwsGalvanised steel
| SKU | 1774265 |
| Brand | FESTO |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
