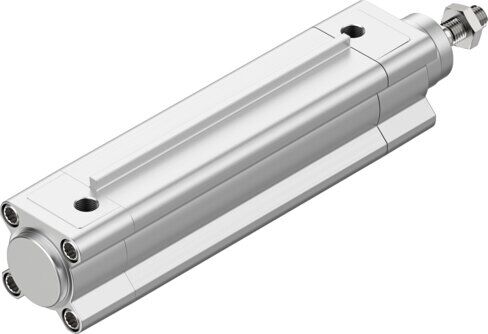

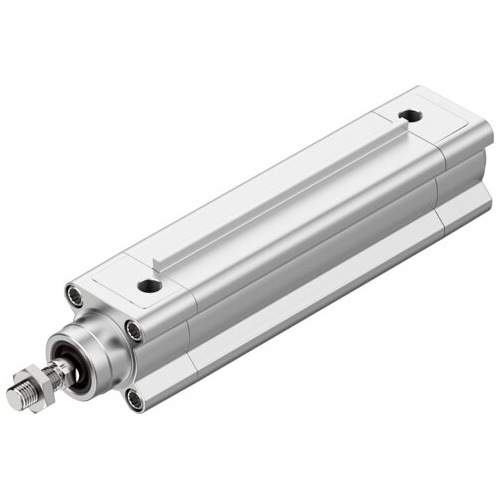

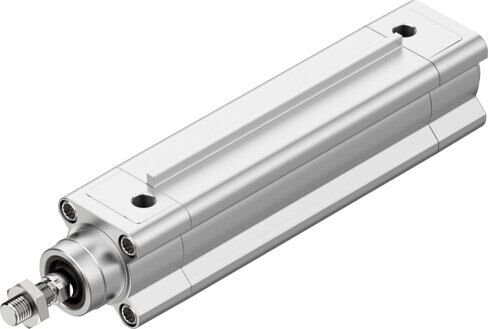

ISO cylinder

DSBF-C-50-100-PPSA-N3-R

1780287





GTIN: 4052568247645

Mode of operation
Double-acting
Piston diameter
50 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
1178 N
Stroke
100 mm
Cushioning
Self-adjusting pneumatic end-position cushioning

Technical Data

  • Stroke100 mm
  • Piston diameter50 mm
  • Piston rod threadM16x1.5
  • CushioningSelf-adjusting pneumatic end-position cushioning
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00992970
  • Operating pressure0.04 MPa ... 1.2 MPa
  • Operating pressure0.4 bar ... 12 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions1 J
  • Cushioning length22 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
  • Moving mass613 g
  • Moving mass for 0 mm stroke363 g
  • Additional moving mass per 10 mm stroke25 g
  • Product weight1821 g
  • Basic weight for 0 mm stroke1241 g
  • Additional weight per 10 mm stroke58 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG1/4
  • Note on materialsRoHS-compliant
  • Material coverCoated die-cast aluminium
  • Material piston sealTPE-U(PU)
  • Material pistonWrought aluminium alloy
  • Material piston rodHigh-alloy stainless steel
  • Material piston rod wiperTPE-U(PU)
  • Buffer seal materialTPE-U(PU)
  • Material of cushioning bossPOM
  • Material cylinder barrelAnodised wrought aluminium alloy
  • Material nutHigh-alloy stainless steel
  • Material bearingPOM
  • Material collar screwsGalvanised steel



SKU 1780287
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
