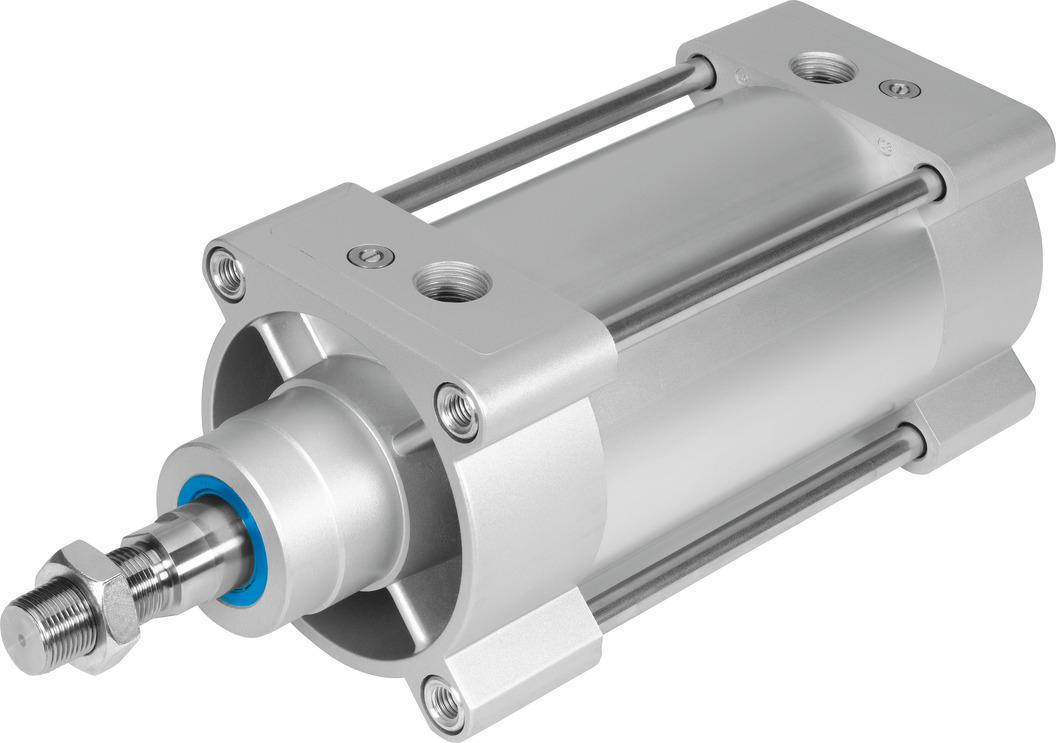

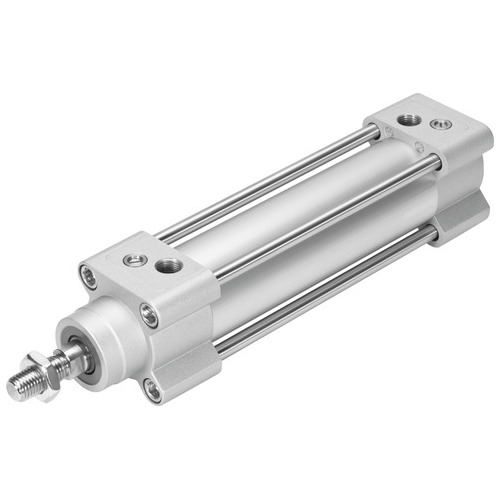

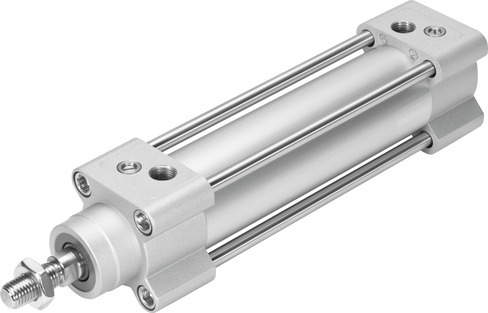

ISO cylinder

DSBG-80-320-PPVA-N3

1646780

DSBG-80-320-PPVA-N3

GTIN: 4052568244255

Downloads

Technical data

Links Spare parts

Pieces

Mode of operation Double-acting

Piston diameter 80 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3016 N

Stroke 320 mm

Cushioning Pneumatic cushioning, adjustable at both ends

Technical Data

Stroke320 mm
Piston diameter80 mm
Piston rod threadM20x1.5
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionoptional
Conforms to standardISO 15552
Piston-rod endMale thread
DesignPiston Piston rod Tie rod Cylinder barrel
Position detectionVia proximity switch

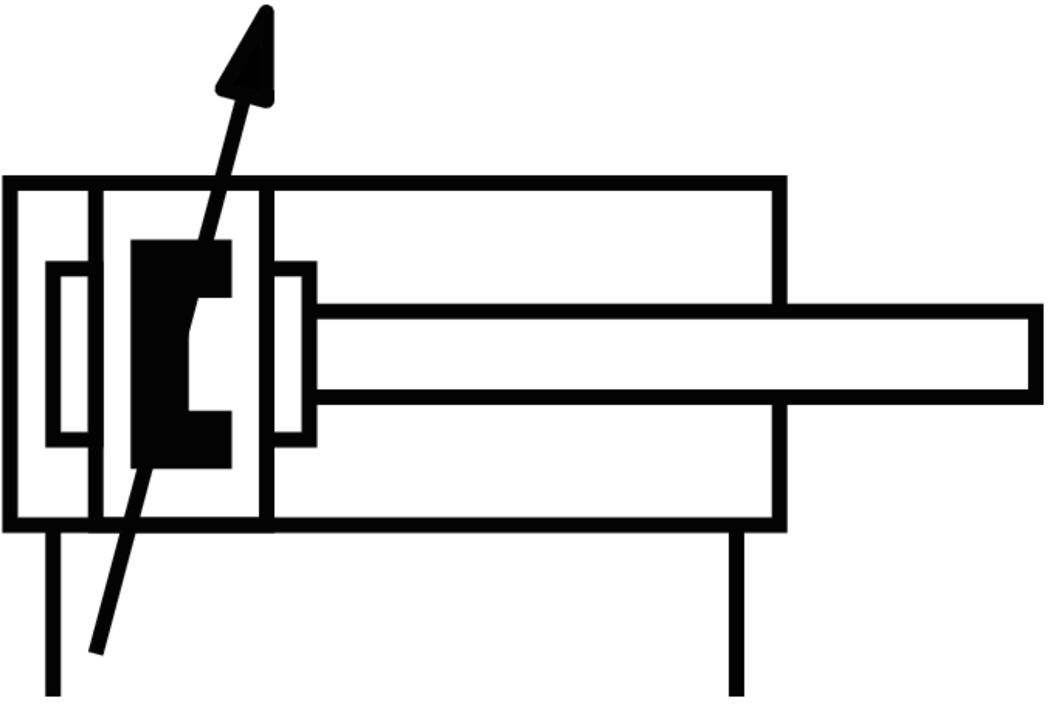

Symbol00991235
VariantsPiston rod at one end
Operating pressure0.04 MPa ... 1.2 MPa
Operating pressure0.4 bar ... 12 bar
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20 °C ... 80 °C
Impact energy in end positions1.8 J
Cushioning length31 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2721 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016 N
Moving mass2058 g
Moving mass for 0 mm stroke810 g
Additional moving mass per 10 mm stroke39 g
Product weight5380 g
Basic weight for 0 mm stroke2660 g
Additional weight per 10 mm stroke85 g
Type of mountingEither: Via female thread With accessories
Pneumatic connectionG3/8
Note on materialsRoHS-compliant
Material coverDie-cast aluminium, coated
Material piston sealTPE-U(PU)
Material pistonWrought aluminium alloy
Material piston rodHigh-alloy steel
Material piston rod wiperTPE-U(PU)
Buffer seal materialTPE-U(PU)
Cushioning piston materialPOM
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Material nutGalvanised steel
Material bearingPOM
Material collar nutGalvanised steel
Material tie rodHigh-alloy steel
