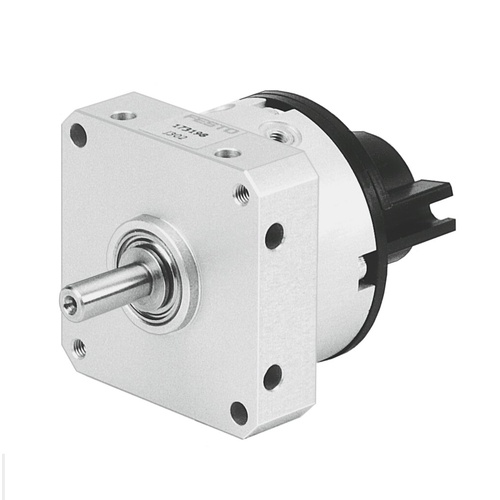

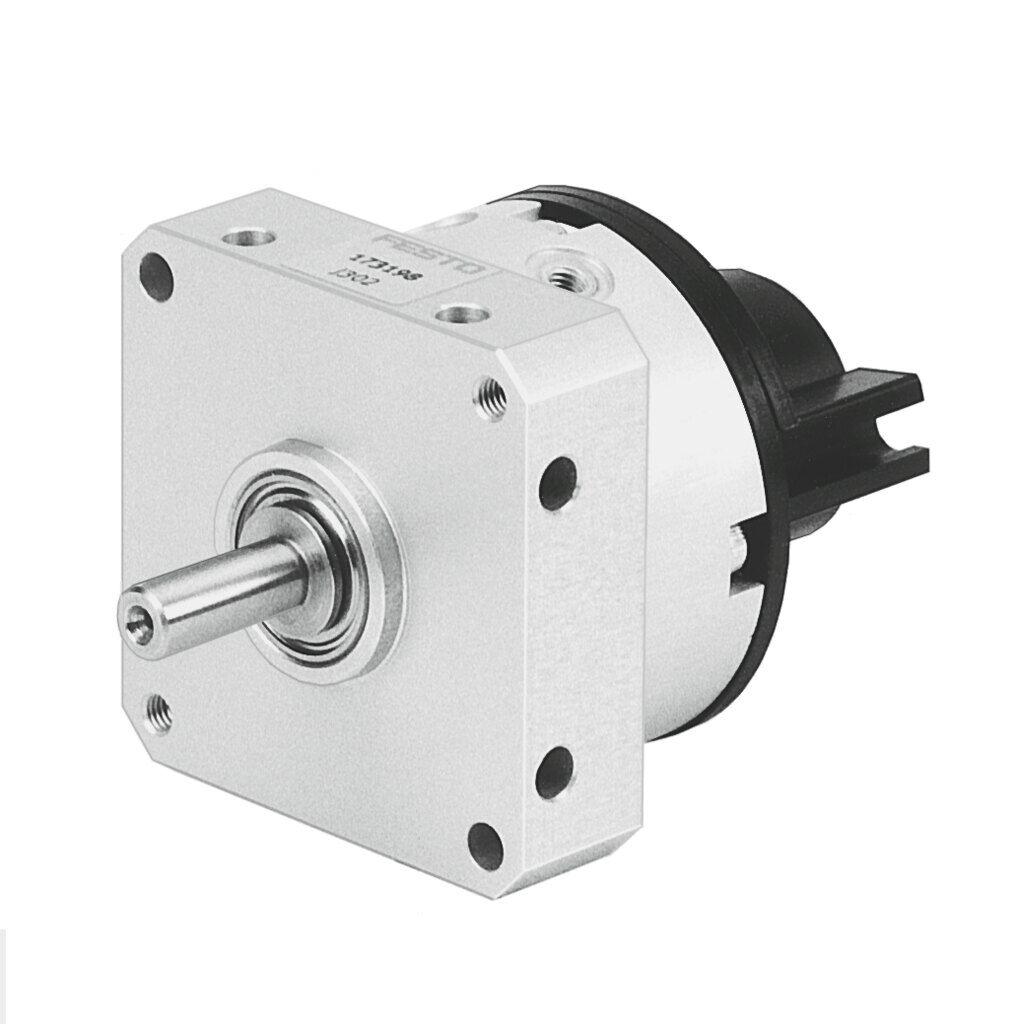

Semi-rotary driveDSM-10-90-P-A

173199

GTIN: 4052568013783

Size
10
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
0.85 Nm
Swivel angle
0 deg - 90 deg
Position detection
Via proximity switch



Technical Data Semi-rotary drive DSM-10-90-P-A

  • Size10
  • Cushioning angle0.5 deg
  • Swivel angle0 deg ... 90 deg
  • Permissible stop radius≥13 mm
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionVia proximity switch
  • Symbol00991265
  • Operating pressure0.25 MPa ... 0.8 MPa
  • Operating pressure2.5 bar ... 8 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3 Hz
  • Repetition accuracy1 deg
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature0 °C ... 60 °C
  • Max. stop force60 N
  • Max. axial force10 N
  • Max. radial force30 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)0.85 Nm
  • Permissible mass moment of inertia0.0026 kgm²
  • Product weight149 g
  • Type of mountingWith female thread
  • Pneumatic connectionM3
  • Note on materialsRoHS compliant
  • Material drive shaftHigh-alloy stainless steel
  • Material sealsTPE-U(PU)
  • Material housinganodised
