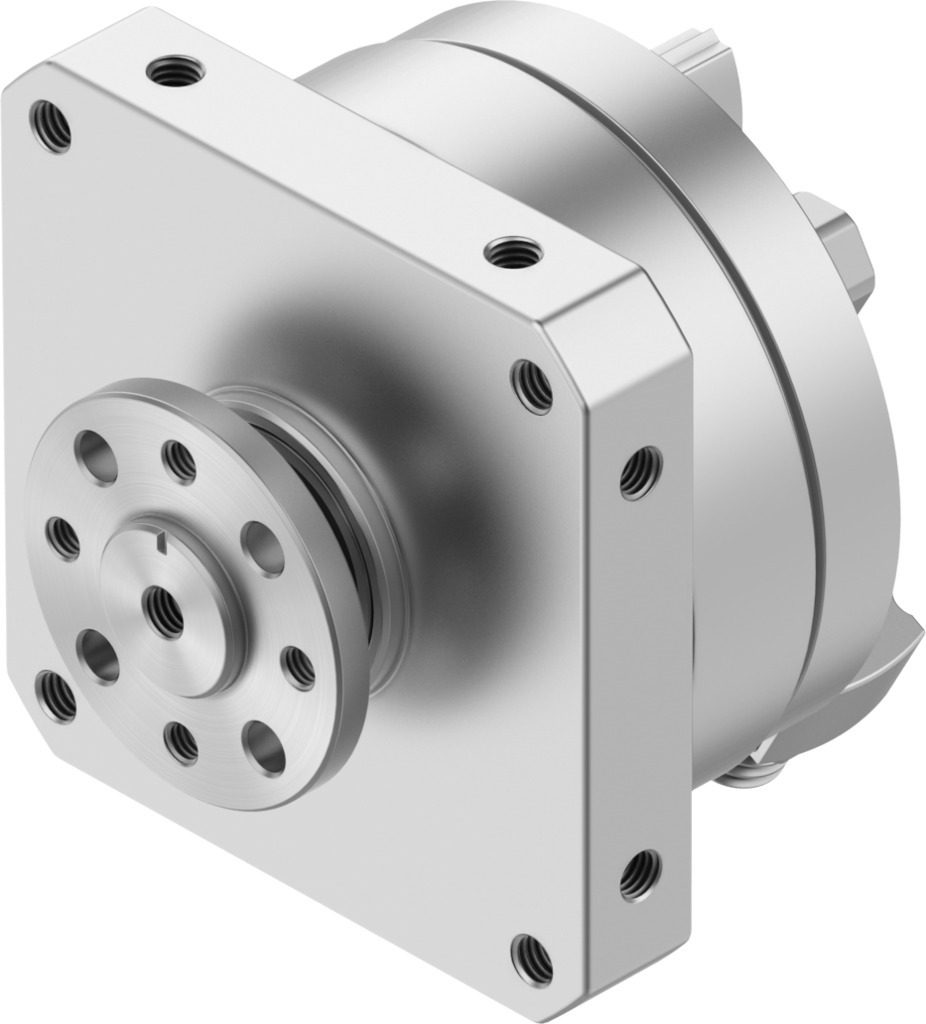

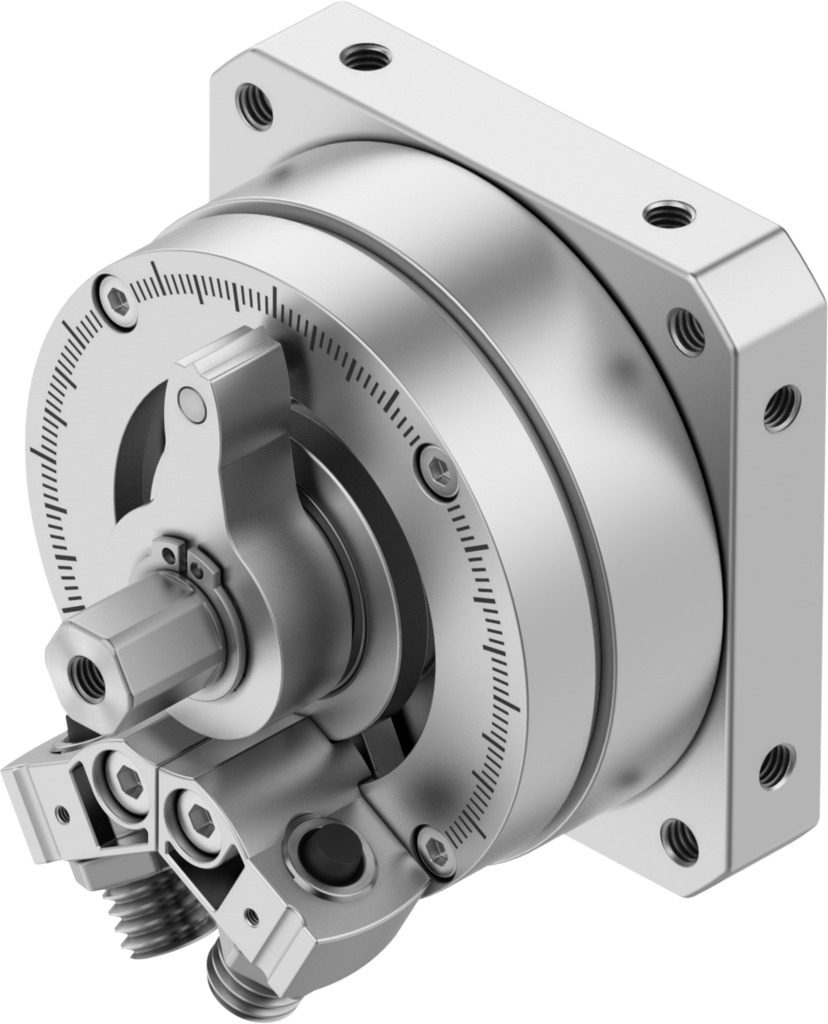

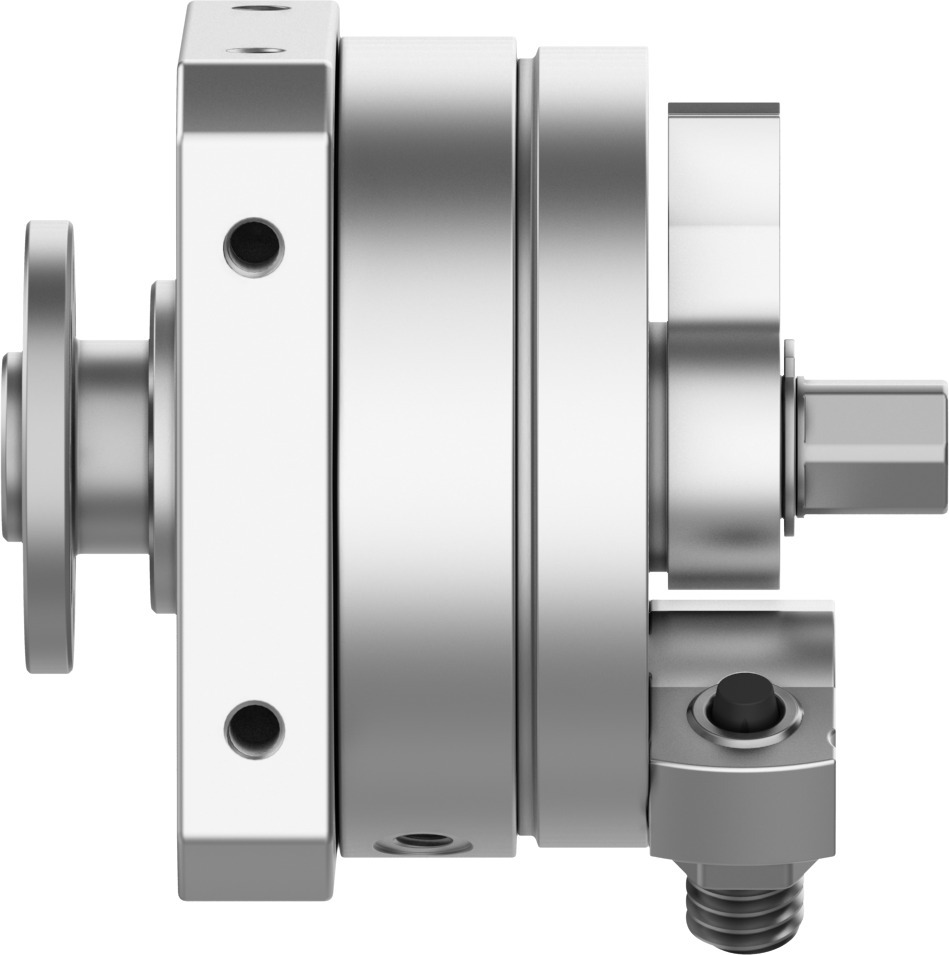

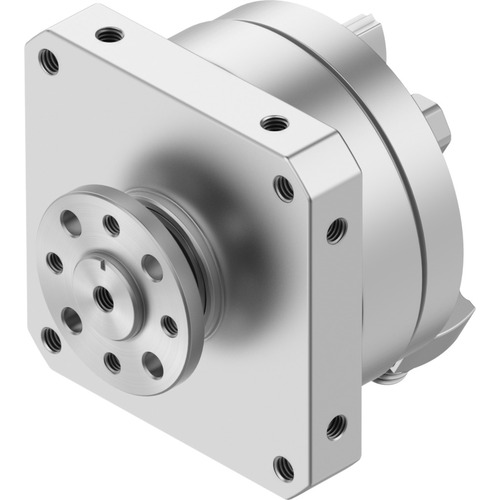

Semi-rotary drive

Semi-rotary drive

DSM-16-270-P-FW-A-B

547575



Size
16
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
2.5 Nm
Swivel angle
0 deg - 270 deg
Position detection
Via proximity switch

GTIN: 4052568188962

Technical Data

  • Size16
  • Cushioning angle1.4 deg
  • Rotation angle adjustment range0 deg ... 270 deg
  • Swivel angle0 deg ... 270 deg
  • Permissible stop radius≥17 mm
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • Fine adjustment-6 deg
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionVia proximity switch
  • Symbol00991265
  • Operating pressure0.18 MPa ... 1 MPa
  • Operating pressure1.8 bar ... 10 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)2 Hz
  • Repetition accuracy1 deg
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-10 °C ... 60 °C
  • Max. stop force160 N
  • Max. axial force30 N
  • Max. radial force75 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)2.5 Nm
  • Permissible mass moment of inertia0.01 kgm²
  • Product weight510 g
  • Type of mountingVia female thread
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material drive shaftSteel Nickel-plated
  • Material sealsTPE-U(PU)
  • Material housingWrought aluminium alloy

Downloads



DSM_B_EN.PDF

Technical data

Links

Spare parts



Size 16

Theoretical torque at 0.6 MPa (6 bar, 87 psi) 2.5 Nm

Swivel angle 0 deg - 270 deg

Position detection Via proximity switch

SKU 547575
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
