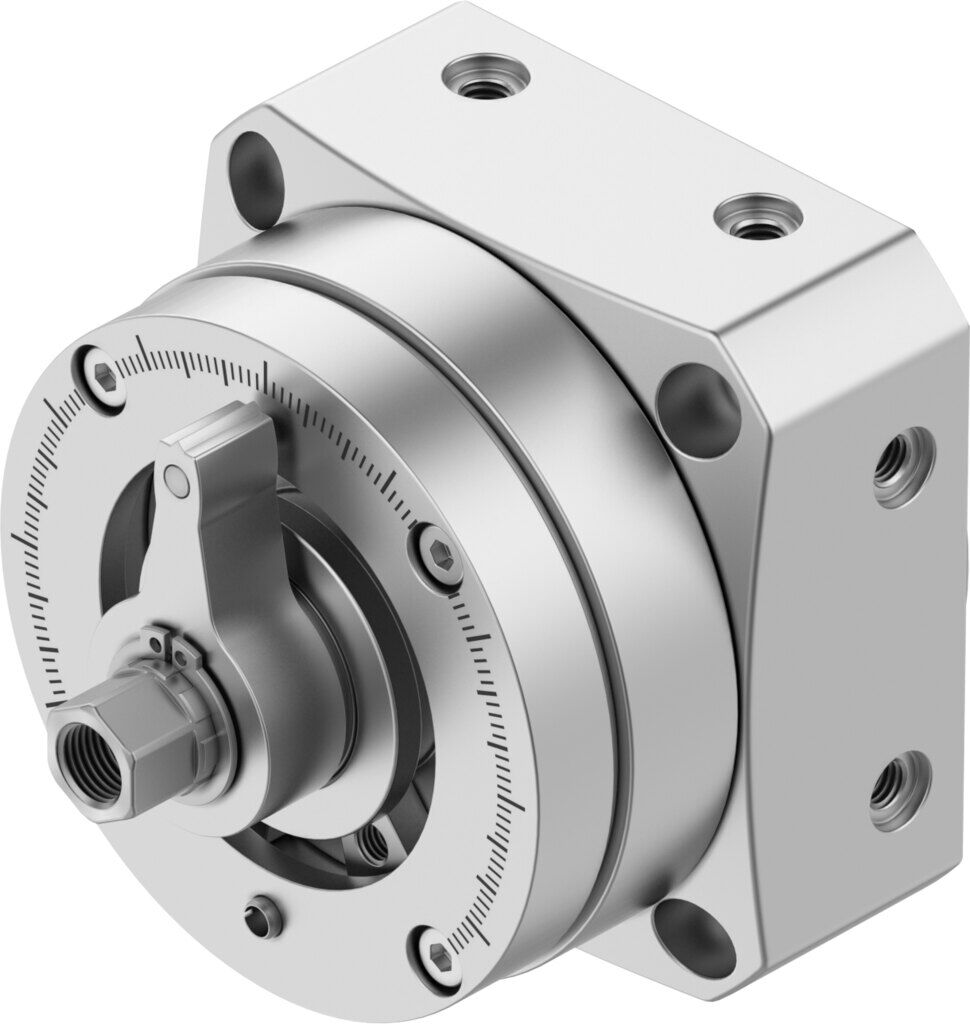

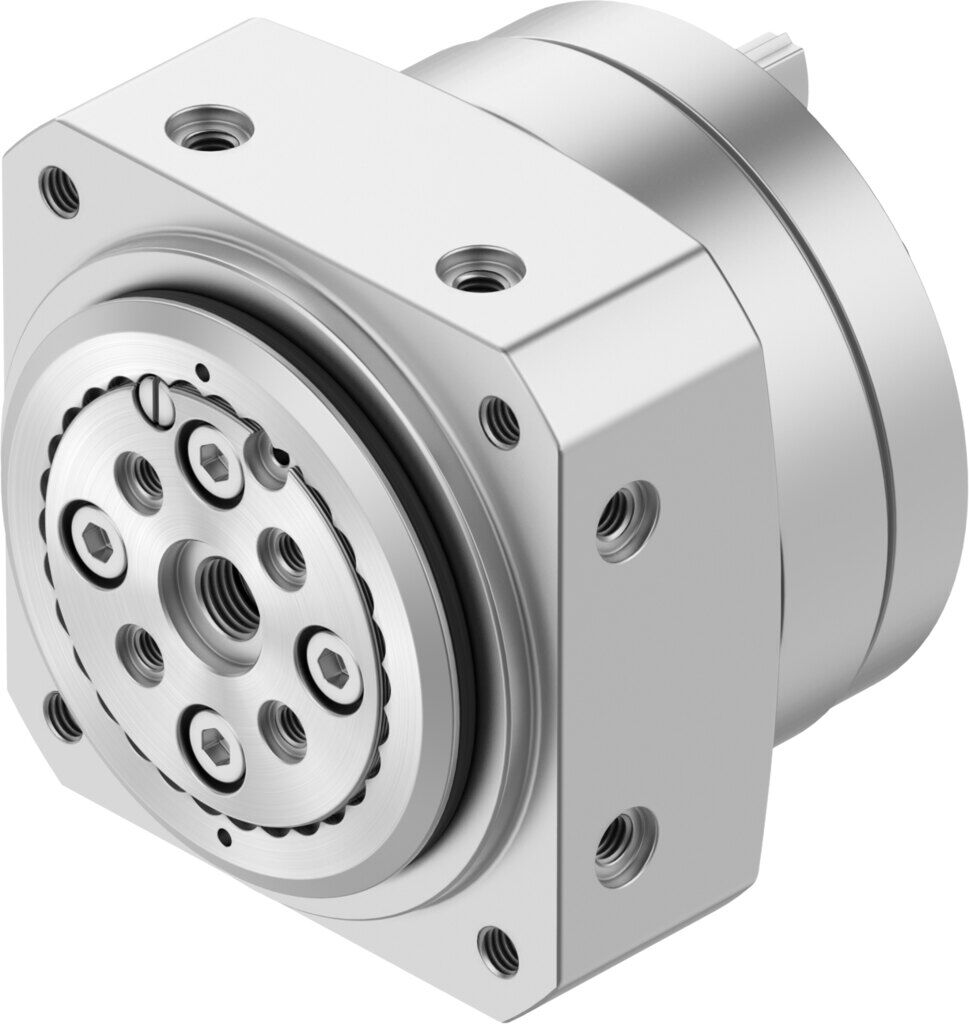

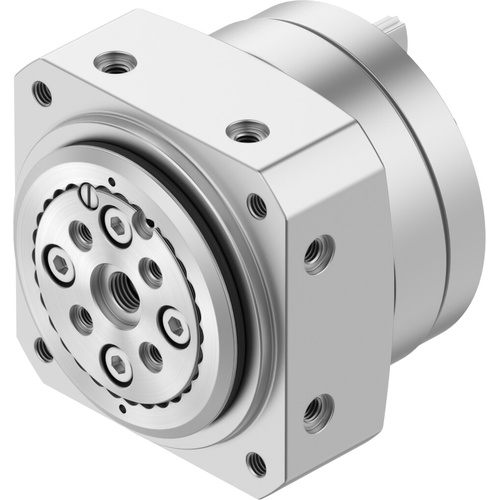

Semi-rotary drive

DSM-25-270-HD-A-B

1369112





GTIN: 4052568231163

Size
25
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
5 Nm
Swivel angle
0 deg - 270 deg
Position detection
Without

Technical Data

  • Size25
  • Swivel angle0 deg ... 270 deg
  • Permissible stop radius≥21 mm
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionWithout
  • Symbol00991265
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)1.5 Hz
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. stop force320 N
  • Max. axial force350 N
  • Max. radial force450 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)5 Nm
  • Product weight950 g
  • Type of mountingVia female thread
  • Pneumatic connectionM5
  • Note on materialsRoHS-compliant
  • Material drive shaftSteel Nickel-plated
  • Material sealsTPE-U(PU)
  • Material housingAnodised aluminium



SKU 1369112
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
