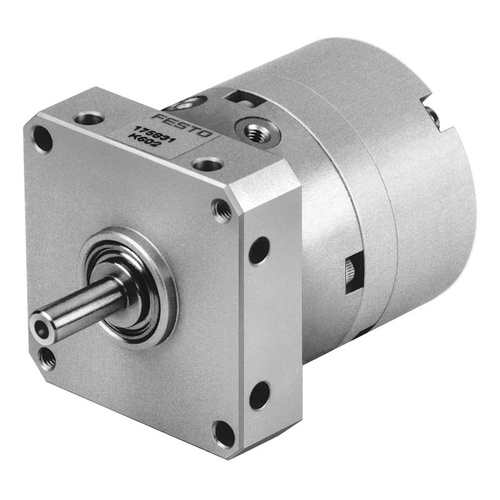

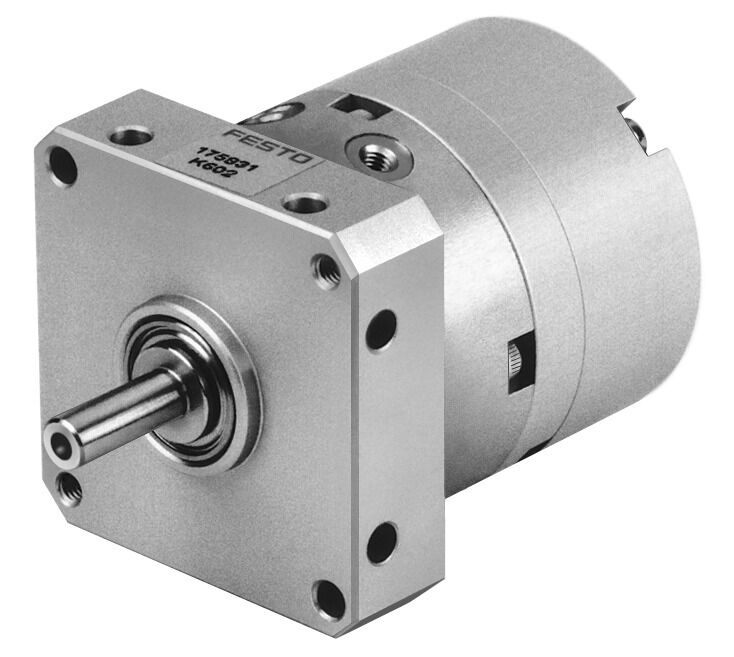

Semi-rotary driveDSM-6-180-P-FF

175827

GTIN: 4052568143428

Size
6
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
0.15 Nm
Swivel angle
0 deg - 180 deg
Position detection
None



Technical Data Semi-rotary drive DSM-6-180-P-FF

  • Size6
  • Cushioning angle0 deg
  • Rotation angle adjustment range0 deg ... 180 deg
  • Swivel angle0 deg ... 180 deg
  • Permissible stop radius≥10 mm
  • Mounting positionAny
  • Fine adjustment-5 deg
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionNone
  • Symbol00991265
  • Operating pressure0.35 MPa ... 0.8 MPa
  • Operating pressure3.5 bar ... 8 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3 Hz
  • Repetition accuracy1 deg
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Max. stop force15 N
  • Max. axial force10 N
  • Max. radial force15 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)0.15 Nm
  • Permissible mass moment of inertia6.5E-4 kgm²
  • Product weight70 g
  • Type of mountingWith female thread
  • Pneumatic connectionM3
  • Material coveringReinforced PA
  • Note on materialsRoHS compliant
  • Material drive shaftHigh-alloy stainless steel
  • Material sealsTPE-U(PU)
  • Material housinganodised
SKU 175827
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
