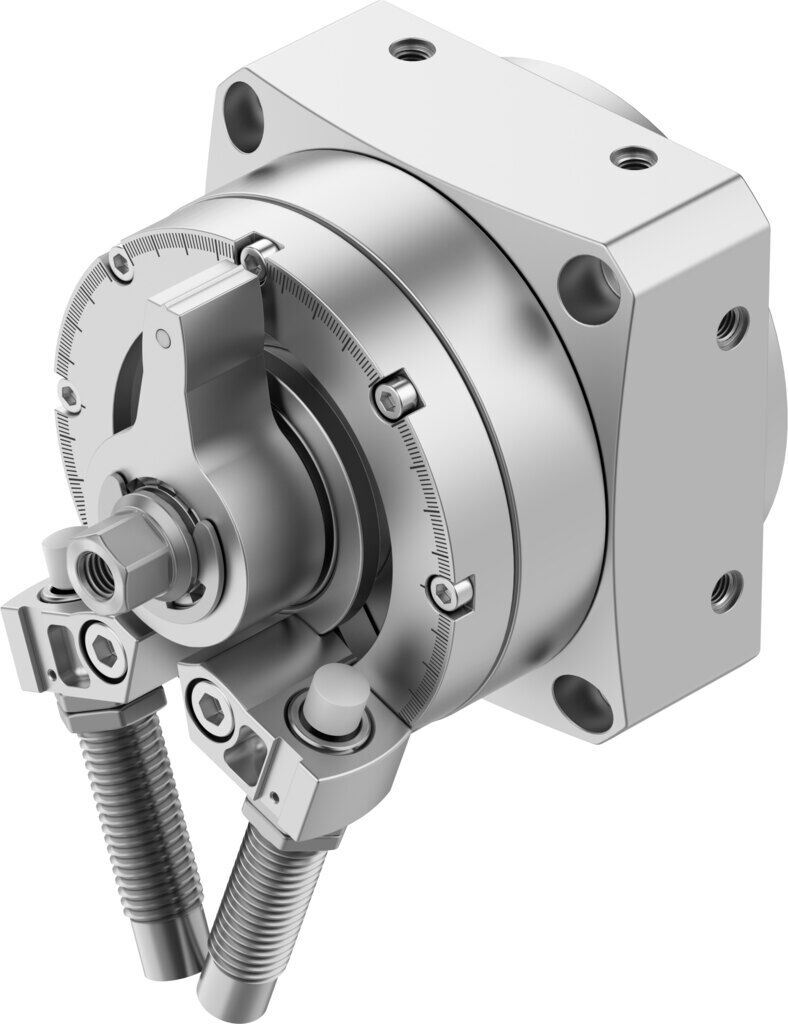

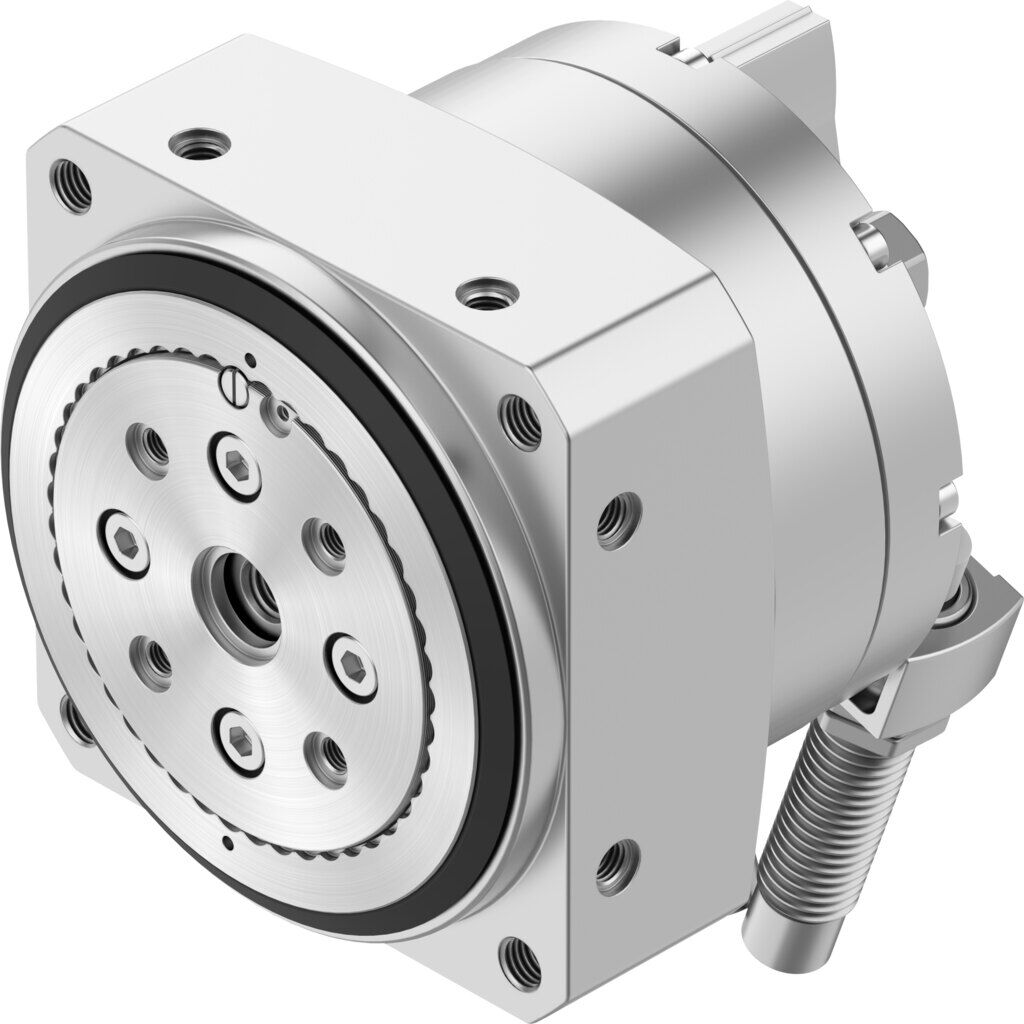

Semi-rotary drive

DSM-63-270-CC-HD-A-B

1369127





GTIN: 4052568231316

Size
63
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
40 Nm
Swivel angle
0 deg - 240 deg
Position detection
Via proximity switch

Technical Data

  • Size63
  • Cushioning angle17.5 deg
  • Rotation angle adjustment range0 deg ... 240 deg
  • Swivel angle0 deg ... 240 deg
  • Permissible stop radius≥50 mm
  • CushioningShock absorber at both ends
  • Mounting positionoptional
  • Fine adjustment-3 deg
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionVia proximity switch
  • Symbol00991265
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)0.5 Hz
  • Repetition accuracy0.1 deg
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. stop force1050 N
  • Max. axial force1300 N
  • Max. radial force1600 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)40 Nm
  • Permissible mass moment of inertia0.5 kgm²
  • Product weight6660 g
  • Type of mountingVia female thread
  • Pneumatic connectionG1/4
  • Note on materialsRoHS-compliant
  • Material drive shaftSteel Nickel-plated
  • Material sealsTPE-U(PU)
  • Material housingAnodised aluminium
