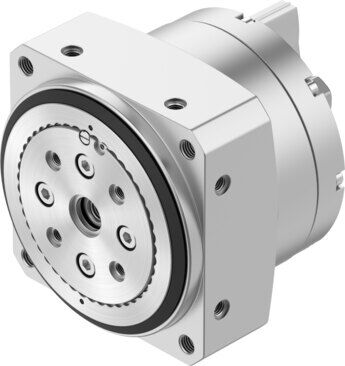

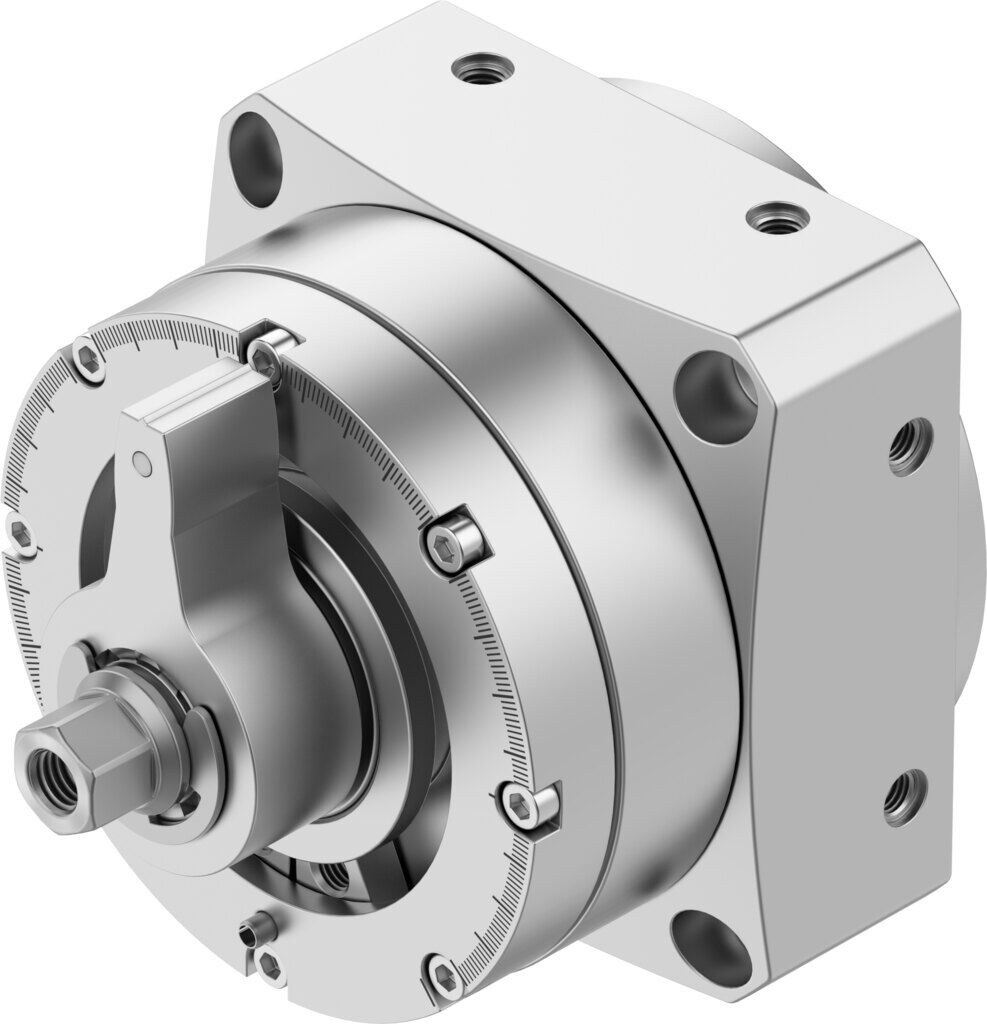

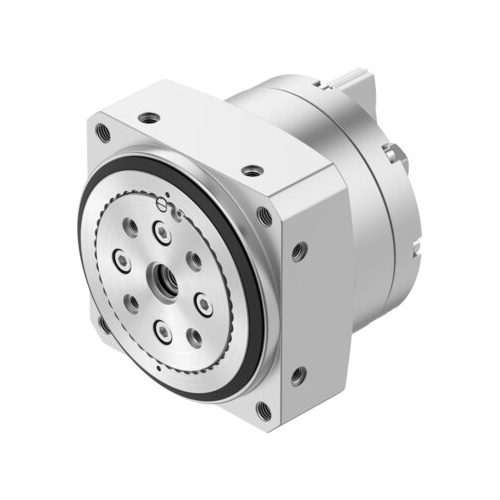

Semi-rotary drive

DSM-63-270-HD-A-B

1369115





GTIN: 4052568231194

Size
63
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
40 Nm
Swivel angle
0 deg - 270 deg
Position detection
Without

Technical Data

  • Size63
  • Swivel angle0 deg ... 270 deg
  • Permissible stop radius≥50 mm
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionWithout
  • Symbol00991265
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)1 Hz
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. stop force1050 N
  • Max. axial force1300 N
  • Max. radial force1600 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)40 Nm
  • Product weight5730 g
  • Type of mountingVia female thread
  • Pneumatic connectionG1/4
  • Note on materialsRoHS-compliant
  • Material drive shaftSteel Nickel-plated
  • Material sealsTPE-U(PU)
  • Material housingAnodised aluminium



SKU 1369115
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
