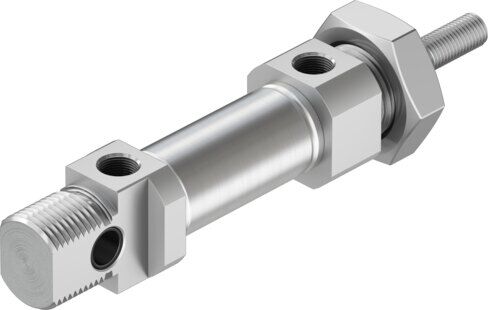

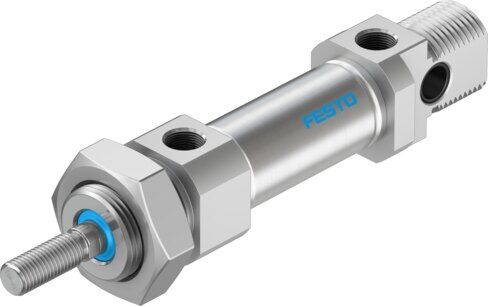

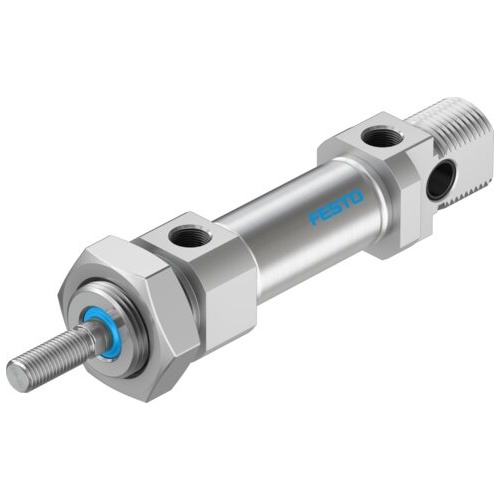

ISO cylinderDSNU-20-10-PPS-A

1908297

GTIN: 4052568108779

Mode of operation
Double-acting
Piston diameter
20 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
188.5 N
Stroke
10 mm
Cushioning
Self-adjusting pneumatic end-position cushioning



Technical Data ISO cylinder DSNU-20-10-PPS-A

  • Stroke10 mm
  • Piston diameter20 mm
  • Piston rod threadM8
  • CushioningSelf-adjusting pneumatic end-position cushioning
  • Mounting positionAny
  • Conforms to standardISO 6432
  • Piston-rod endMale thread
  • DesignPiston Piston rod Cylinder barrel
  • VariantsPiston rod at one end
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.2 J
  • Cushioning length15 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158.3 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188.5 N
  • Moving mass for 0 mm stroke44 g
  • Additional moving mass per 10 mm stroke4 g
  • Basic weight for 0 mm stroke186.8 g
  • Additional weight per 10 mm stroke7.2 g
  • Type of mountingWith accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS compliant
  • Material coverWrought aluminium alloy Colourless anodised
  • Material sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy stainless steel
  • Material cylinder barrelHigh-alloy stainless steel
