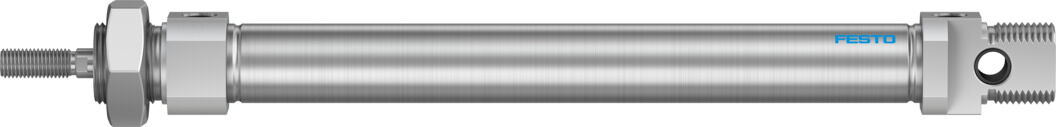

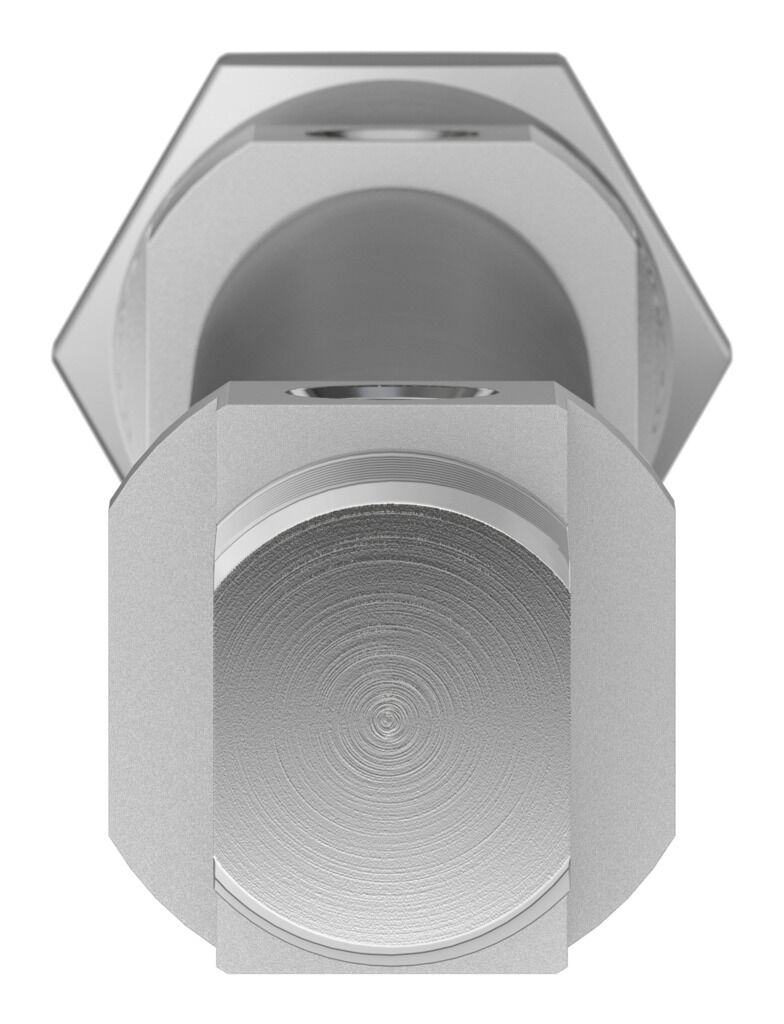

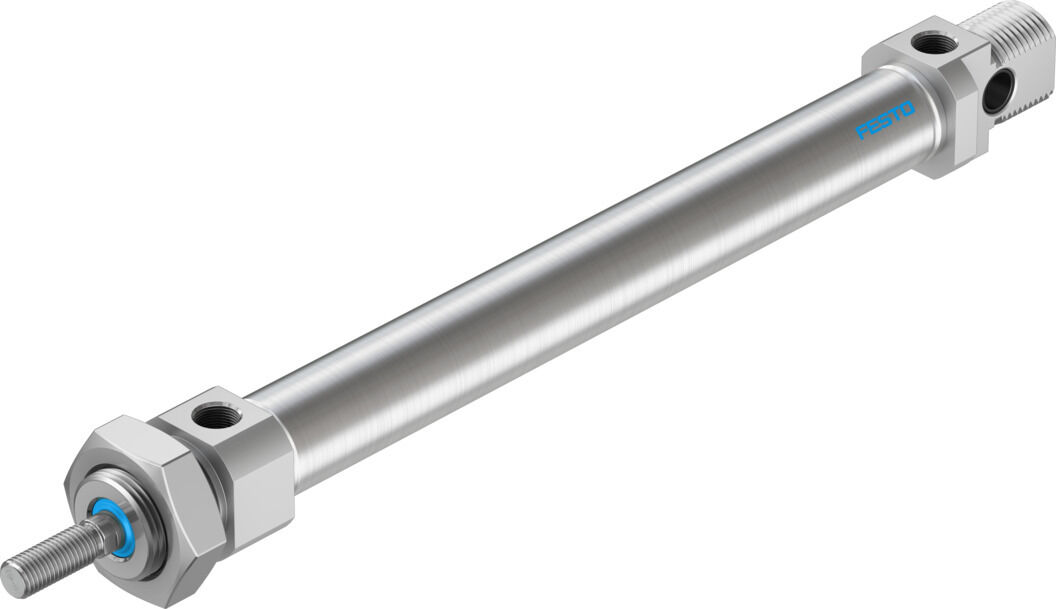

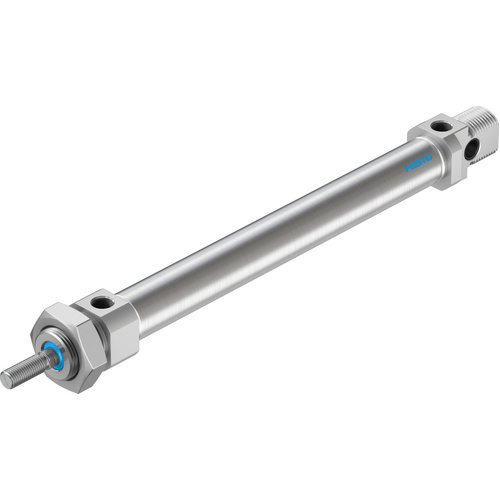

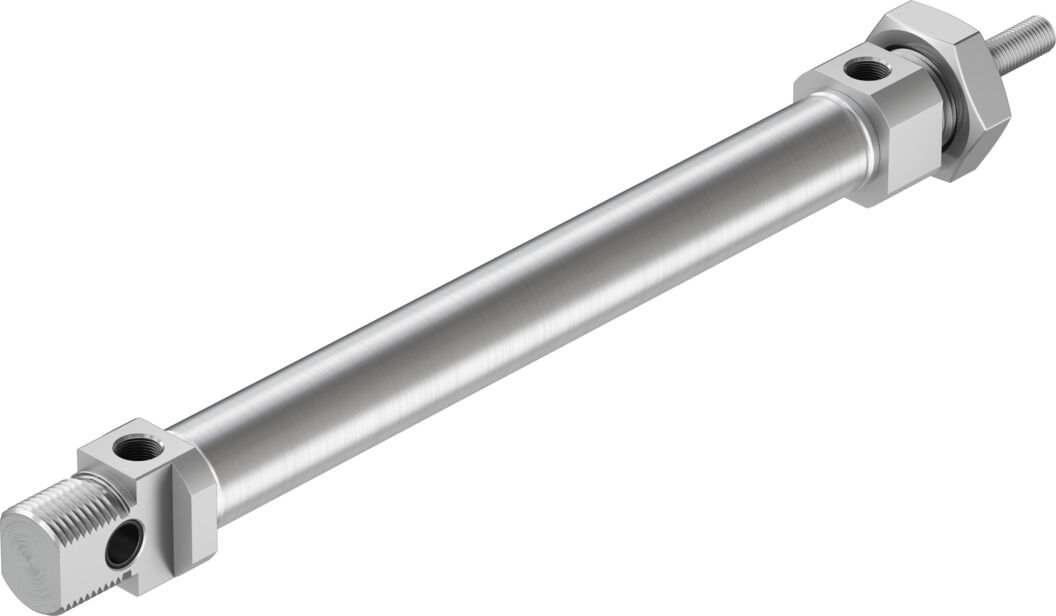

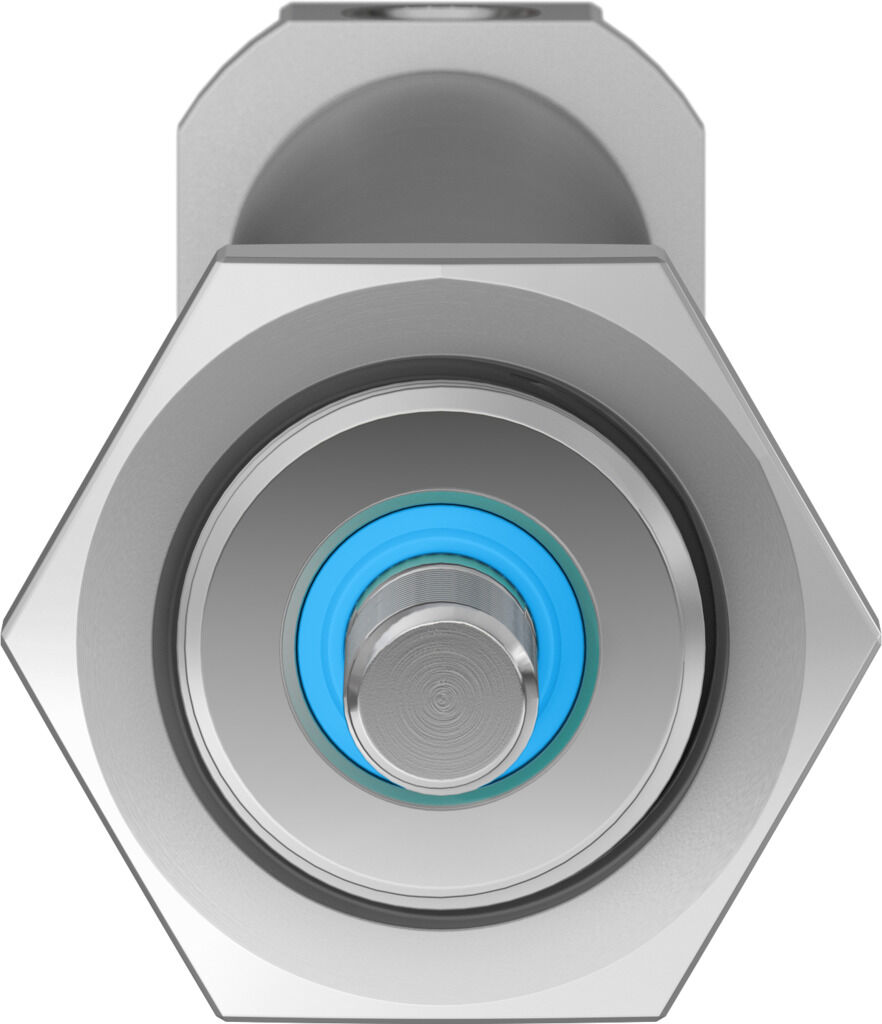

DSNU-20-150-P-A standards-based cylinder

DSNU-20-150-P-A

$133.54
RRP $149.60
SAVE $16.06 (11%)


ISO cylinder

Technical Data

  • Stroke150 mm
  • Piston diameter 20 mm
  • Piston rod thread M8
  • Cushioning Elastic cushioning rings/plates at both ends
  • Mounting position optional
  • Conforms to standard CETOP RP 52 P ISO 6432
  • Piston-rod end Male thread
  • Design Piston Piston rod Cylinder barrel
  • Position detection Via proximity switch
  • Symbol 00991217
  • Variants Piston rod at one end
  • Operating pressure 0.1 MPa ... 1 MPa
  • Operating pressure 1 bar ... 10 bar
  • Mode of operation Double-acting
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Cleanroom classClass 6 according to ISO 14644-1
  • Ambient temperature -20 °C ... 80 °C
  • Impact energy in end positions 0.2 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 158.3 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 188.5 N
  • Moving mass for 0 mm stroke 44 g
  • Additional moving mass per 10 mm stroke 4 g
  • Basic weight for 0 mm stroke186.8 g
  • Additional weight per 10 mm stroke 7.2 g
  • Type of mounting With accessories
  • Pneumatic connection G1/8
  • Note on materials RoHS-compliant
  • Material cover Wrought aluminium alloy Colourless anodised
  • Material seals NBR TPE-U(PU)
  • Material piston rod High-alloy stainless steel
  • Material cylinder barrel High-alloy stainless steel

ISO cylinder

DSNU-20-150-P-A

1908288





GTIN: 4052568108694
