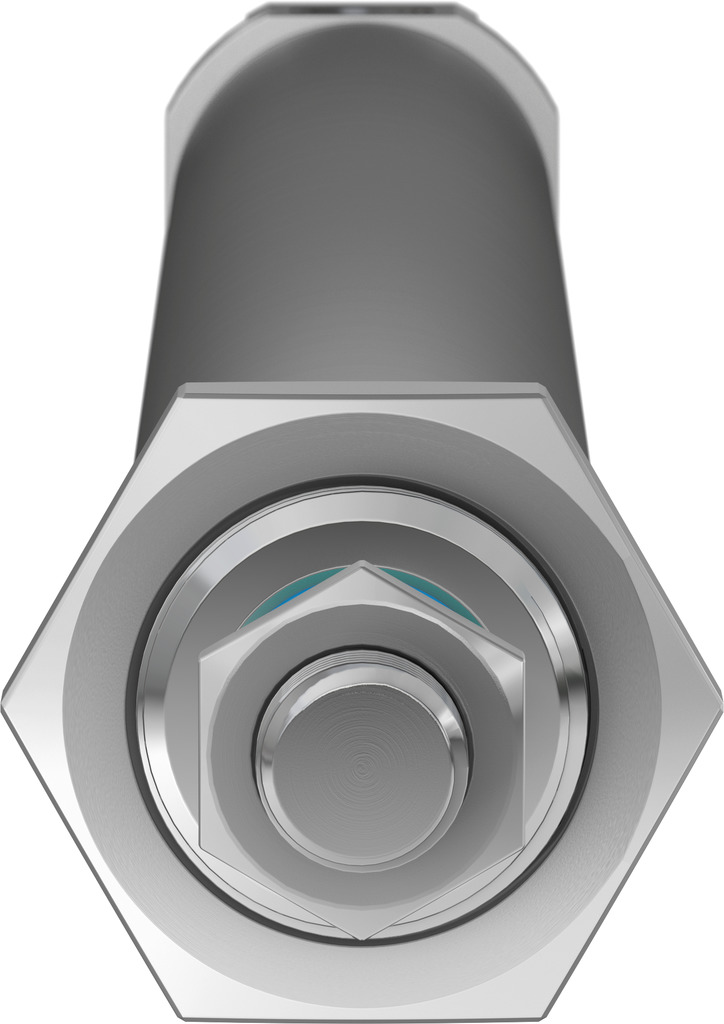

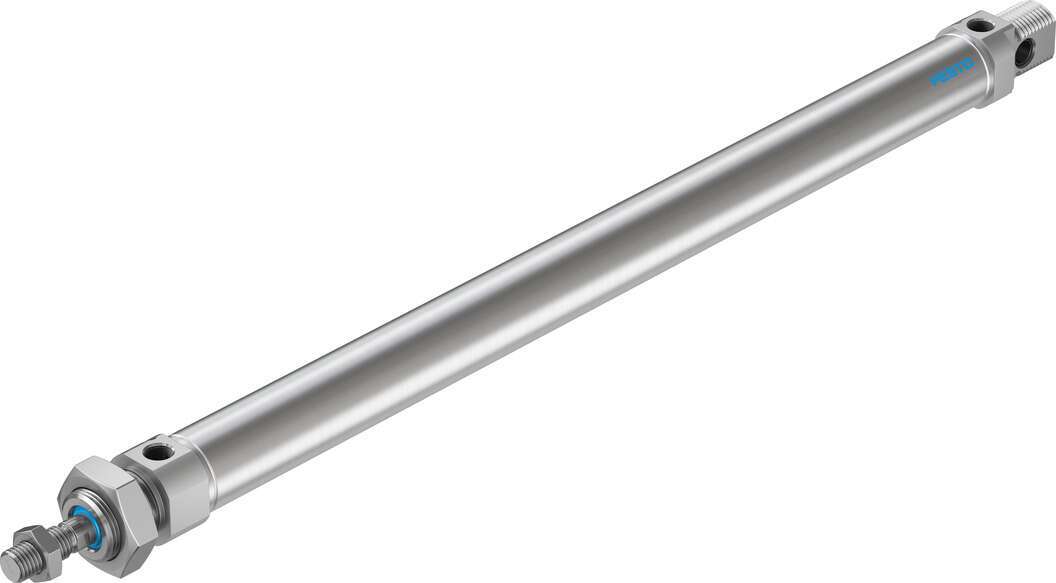

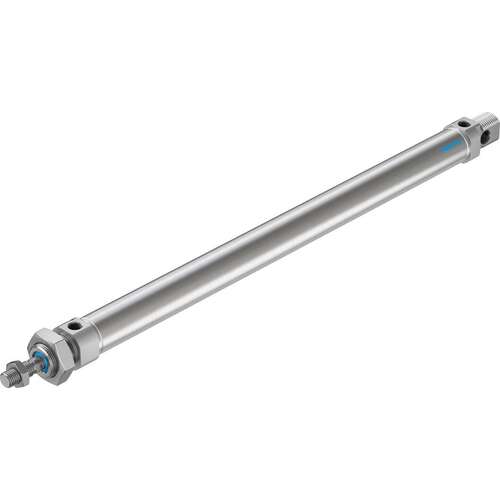

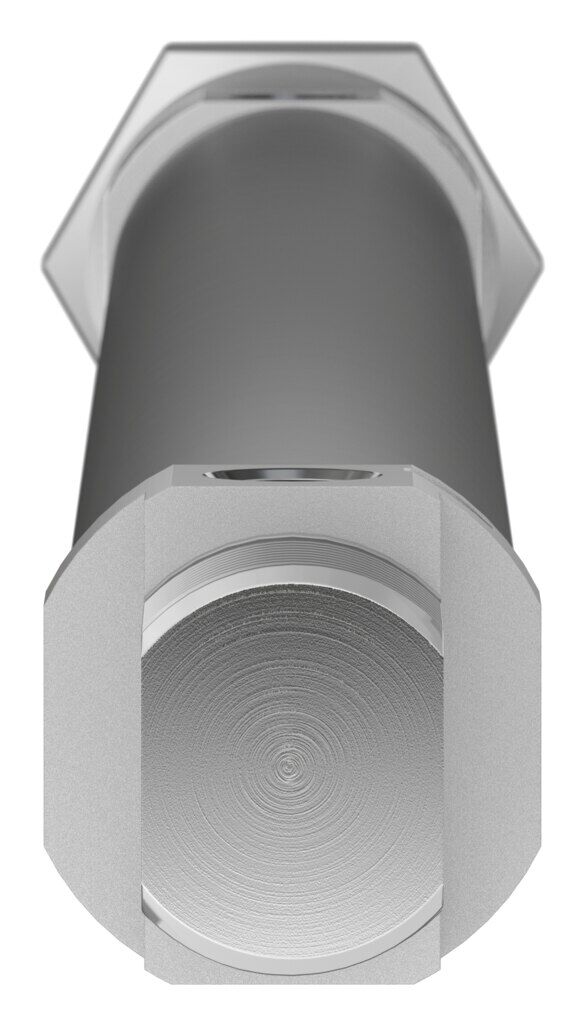

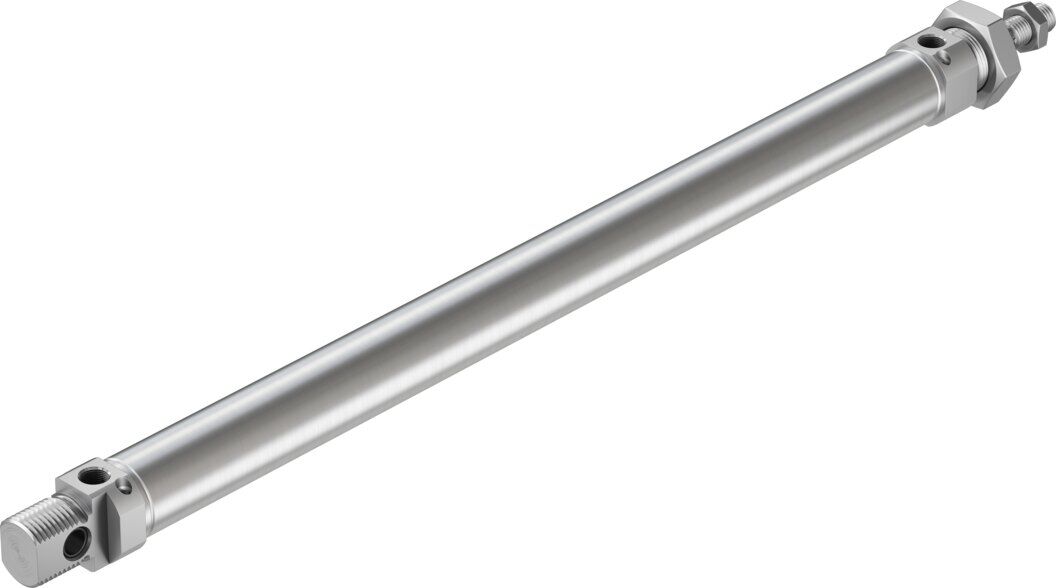

DSNU-25-400-PPV-A

ISO cylinder

DSNU-25-400-PPV-A

35193

Mode of operation
Double-acting
Piston diameter
25 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
294.5 N
Stroke
400 mm
Cushioning
Pneumatic cushioning, adjustable at both ends

GTIN: 4052568010096

Technical Data

  • Stroke400 mm
  • Piston diameter25 mm
  • Piston rod threadM10x1.25
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 6432
  • Piston-rod endMale thread
  • DesignPiston Piston rod Cylinder barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.3 J
  • Cushioning length17 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247.4 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke294.5 N
  • Moving mass for 0 mm stroke71 g
  • Additional moving mass per 10 mm stroke6 g
  • Basic weight for 0 mm stroke238 g
  • Additional weight per 10 mm stroke11 g
  • Type of mountingWith accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material coverWrought aluminium alloy Colourless anodised
  • Material sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy stainless steel
  • Material cylinder barrelHigh-alloy stainless steel



DSNU_EN.PDF

ISO cylinder



ISO cylinder

ISO cylinder

SKU 35193
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
