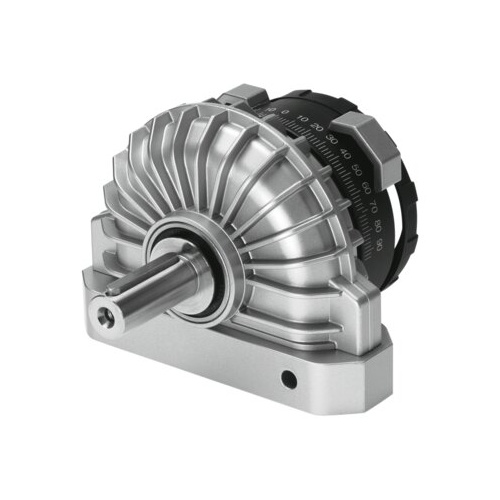

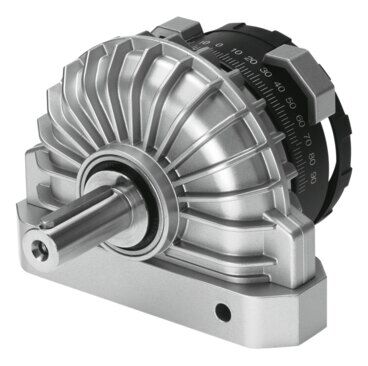

Semi-rotary drive

DSR-40-180-P

13467





GTIN: 4052568002558

Size
40
Theoretical torque at 0.6 MPa (6 bar, 87 psi)
20 Nm
Swivel angle
0 deg - 180 deg
Position detection
Without

Technical Data

  • Size40
  • Cushioning angle0.9 deg
  • Rotation angle adjustment range0 deg ... 180 deg
  • Swivel angle0 deg ... 180 deg
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • DesignVane
  • Position detectionWithout
  • Symbol00991265
  • Operating pressure1.5 bar ... 8 bar
  • Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3 Hz
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. axial force120 N
  • Max. radial force350 N
  • Theoretical torque at 0.6 MPa (6 bar, 87 psi)20 Nm
  • Product weight2400 g
  • Type of mountingWith through-hole
  • Pneumatic connectionG1/4
  • Material coveringPA-reinforced
  • Material drive shaftSteel Nickel-plated
  • Material sealsNBR
  • Material housingDie-cast zinc







SKU 13467
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
