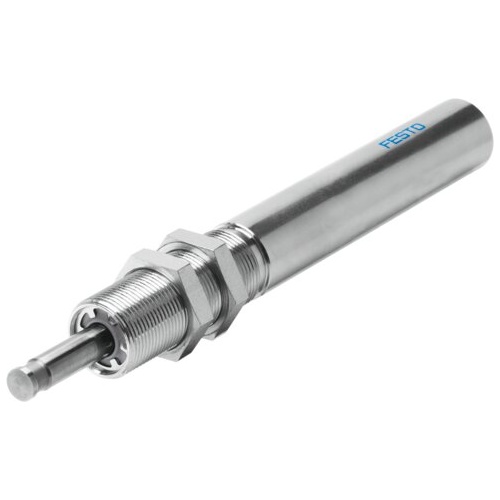

Hydraulic cushioning cylinder

DYHR-16-40-Y5

1155691

GTIN: 4052568227791

Technical Data

  • Size16
  • Stroke40 mm
  • CushioningAdjustable
  • Mounting positionoptional
  • Mode of operationPushing Single-acting
  • Position detectionWithout
  • Max. impact speed0.3 m/s
  • Feed speed0.2 mm/s ... 100 mm/s
  • Reset time at room temperature0.8 s
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature0 °C ... 80 °C
  • Max. stop force1600 N
  • Max. energy consumption per stroke64 J
  • Max. energy consumption per hour100000 J
  • Min. feed force160 N
  • Max. feed force1600 N
  • Max. residual energy0.16 J
  • Reset force5.4 N
  • Product weight255 g
  • Type of mountingVia lock nut
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingSteel Galvanised
  • Material piston rodHardened High-alloy steel

Downloads

Technical data

Links

Spare parts

Hydraulic cushioning cylinder

SKU 1155691
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
