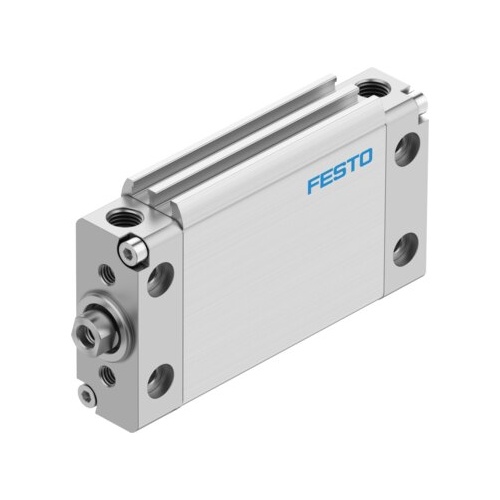

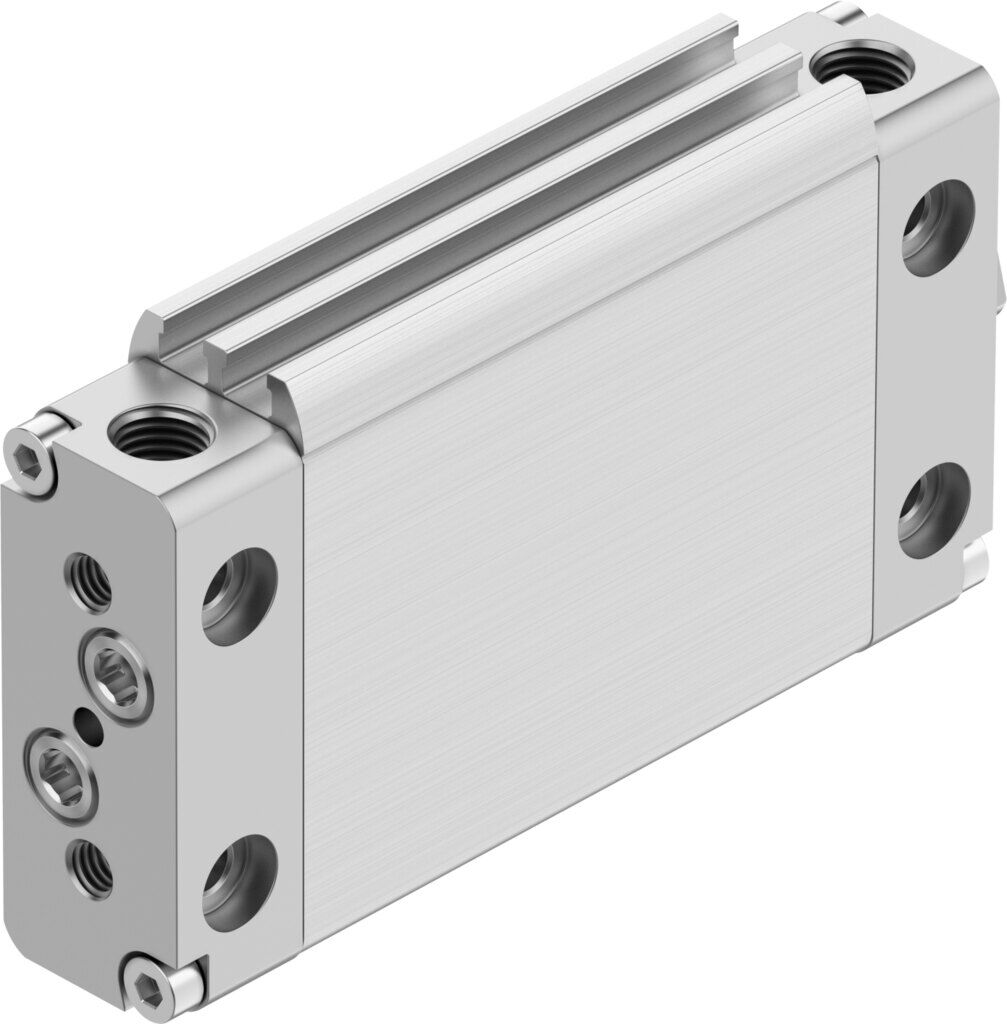

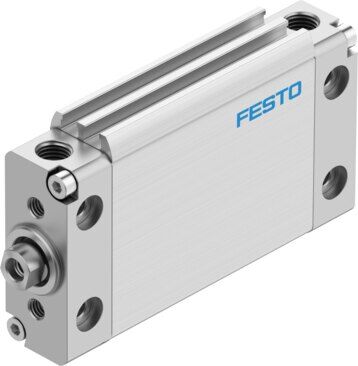

Flat cylinder

DZF-32-40-P-A

164041





GTIN: 4052568136482

Mode of operation
Double-acting
Piston diameter
32 mm - Equivalent diameter
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
483 N
Stroke
40 mm
Cushioning
Elastic cushioning rings/plates at both ends



Technical Data

  • Stroke40 mm
  • Piston diameter32 mm Equivalent diameter
  • Piston rod threadM6
  • Torsional backlash at piston rod +/-0.8 deg
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • Mode of operationDouble-acting
  • DesignPiston Piston rod
  • Position detectionVia proximity switch
  • Symbol00991217
  • VariantsPiston rod at one end
  • Protection against torque/guideOval piston
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.4 J
  • Max. torque for protection against torsion0.8 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N
  • Moving mass for 0 mm stroke65 g
  • Additional moving mass per 10 mm stroke9 g
  • Additional weight per 10 mm stroke24 g
  • Basic weight for 0 mm stroke272 g
  • Type of mountingWith female thread With accessories
  • Pneumatic connectionG1/8
  • Material coverDie-cast aluminium
  • Material sealsHNBR TPE-U(PU)
  • Material housingAnodised wrought aluminium alloy
  • Material piston sealNBR
  • Material piston rodHigh-alloy steel



SKU 164041
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
