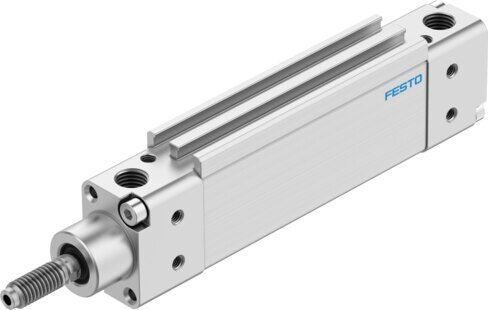

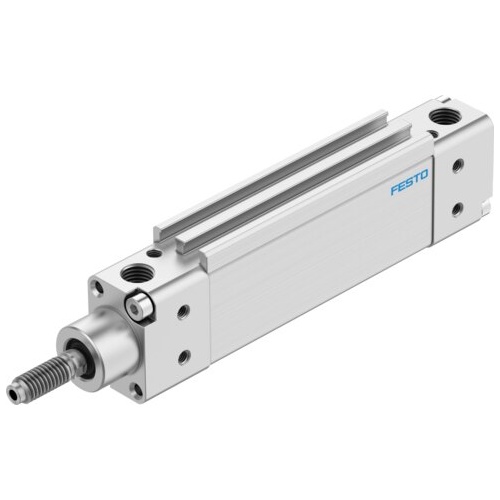

Flat cylinder

DZH-20-40-PPV-A

151135





GTIN: 4052568116811

Mode of operation
Double-acting
Piston diameter
20 mm - Equivalent diameter
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
188 N
Stroke
40 mm
Cushioning
Pneumatic cushioning, adjustable at both ends

Technical Data

  • Stroke40 mm
  • Piston diameter20 mm Equivalent diameter
  • Piston rod threadM8
  • Torsional backlash at piston rod +/-2.6 deg
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Mode of operationDouble-acting
  • DesignPiston Piston rod Profile barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Protection against torque/guideOval piston
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Cushioning length17 mm
  • Max. torque for protection against torsion0.6 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N
  • Moving mass87 g
  • Product weight298 g
  • Additional weight per 10 mm stroke15.9 g
  • Basic weight for 0 mm stroke234 g
  • Type of mountingVia female thread With accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material coverAluminium
  • Material sealsTPE-U(PU)
  • Material housingAluminium
  • Material piston sealTPE-U(PU)
  • Material piston rodHigh-alloy steel





SKU 151135
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
