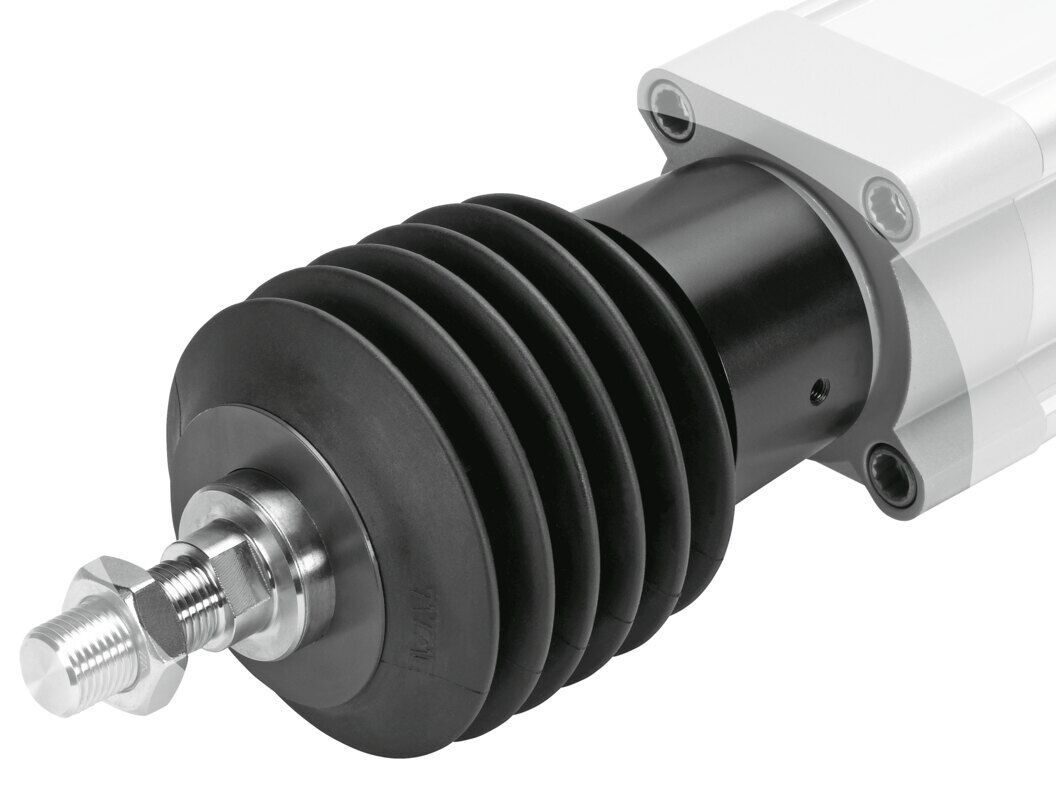

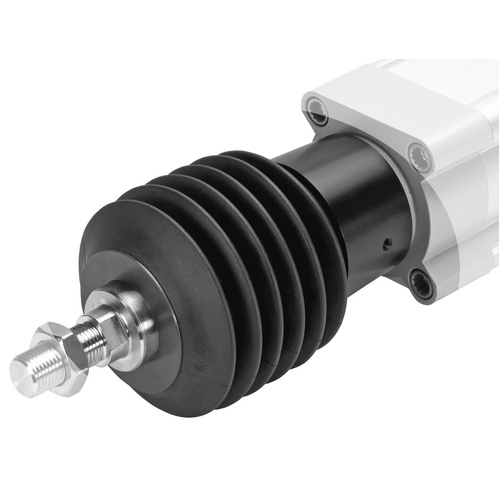

Bellows kit

EADB-V2-63-S401-500

1488365





GTIN: 4052568233570

Technical Data

  • Outside diameter93 mm
  • Size63
  • Stroke range401 mm ... 500 mm
  • Piston rod extension117 mm
  • DesignRound
  • Mounting positionoptional
  • DesignWith ducted exhaust air
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media resistanceDust Chips Oils Grease Petrol
  • Degree of protectionIP65 To IEC 60529
  • Ambient temperature-10 °C ... 80 °C
  • Moving mass267 g
  • Product weight391 g
  • Type of mountingPush-on Via threaded pin
  • Pneumatic connectionG1/4
  • Note on materialsRoHS-compliant
  • Material adapter componentsWrought aluminium alloy Anodised
  • Material sealsNBR
  • Material bellowsNBR
  • Material threaded pinHigh-alloy stainless steel





SKU 1488365
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
