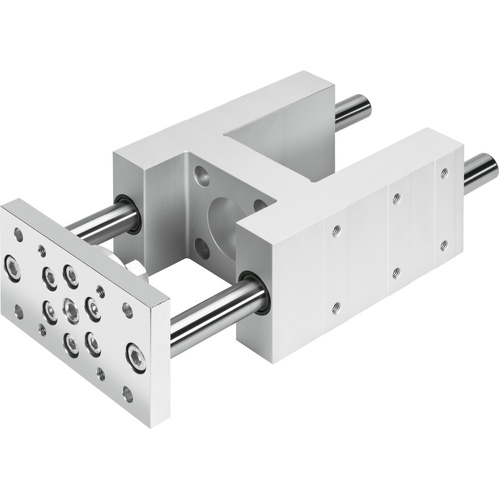

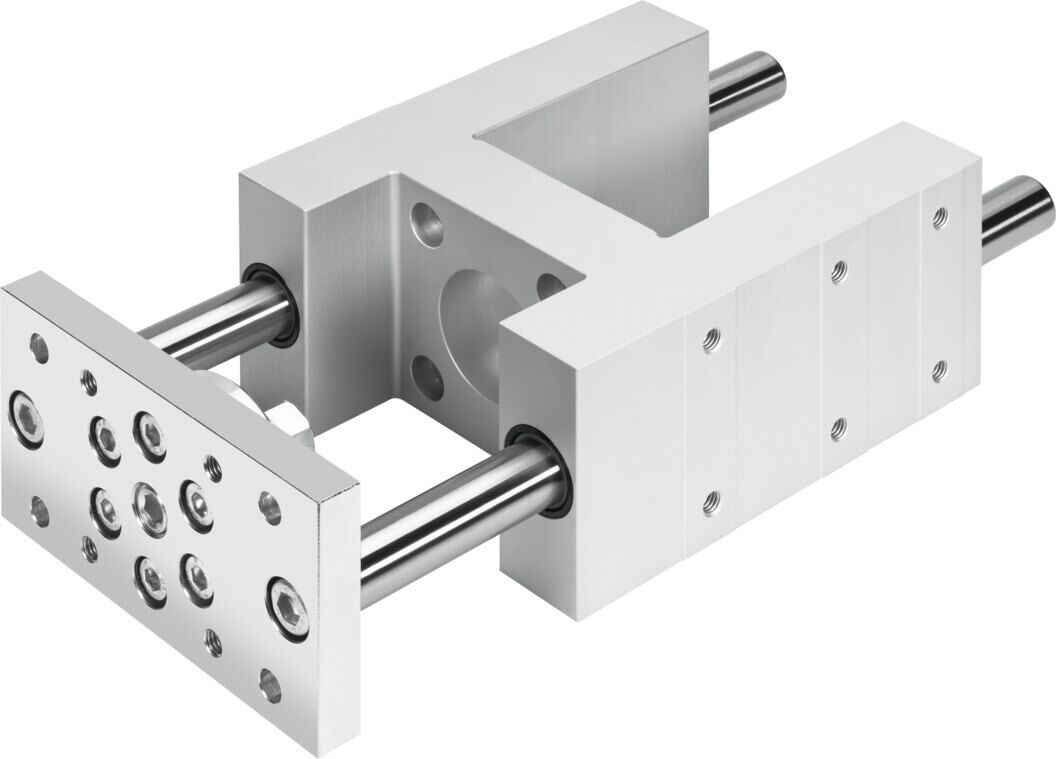

Guide unitEAGF-V2-KF-100-200

1725851

GTIN: 4052568246280

Technical Data Guide unit EAGF-V2-KF-100-200

  • Size100
  • Stroke200 mm
  • Reversing backlash theoretical0 µm
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Max. force Fy2300 N
  • Max. force Fy static3120 N
  • Max. force Fz2300 N
  • Max. force Fz static3120 N
  • Max. moment Mx198 Nm
  • Max. torque Mx static268 Nm
  • Max. moment My197 Nm
  • Max. torque My static267 Nm
  • Max. moment Mz197 Nm
  • Max. torque Mz static267 Nm
  • Displacement force40 N
  • Moving mass7662 g
  • Product weight14783 g
  • Centre of gravity at 0 mm stroke47 mm
  • Centre of gravity additional of moving mass per 10 mm3.6 mm
  • Type of mountingWith female thread
  • Note on materialsRoHS compliant
  • Material guide componentTempered steel
  • Material housinganodised
  • Material yoke plateSteel







SKU 1725851
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
