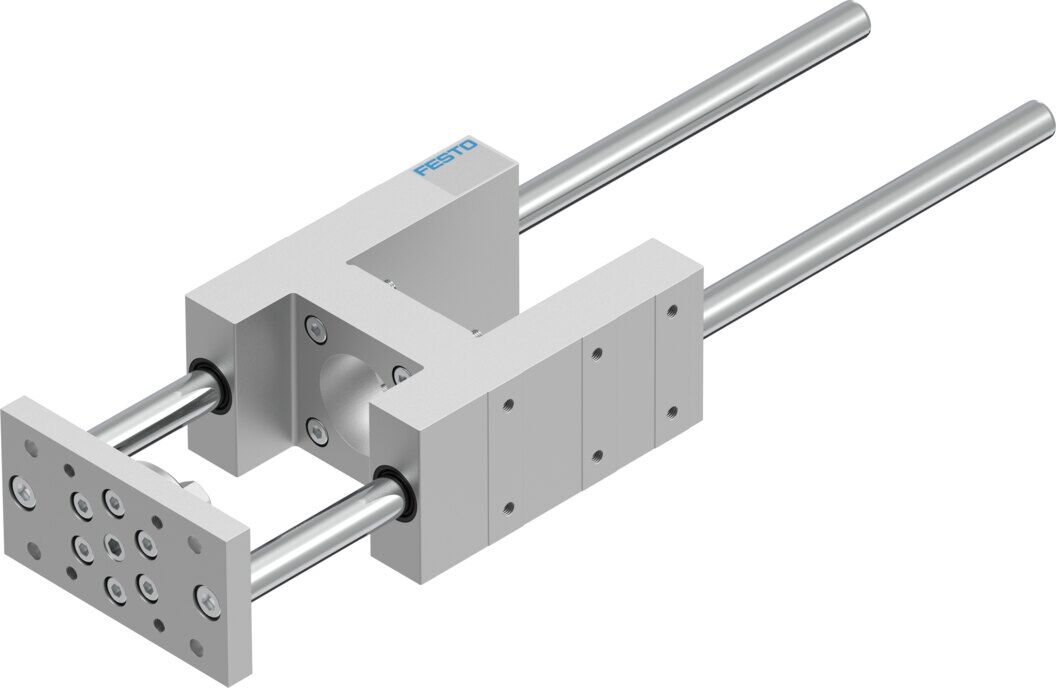

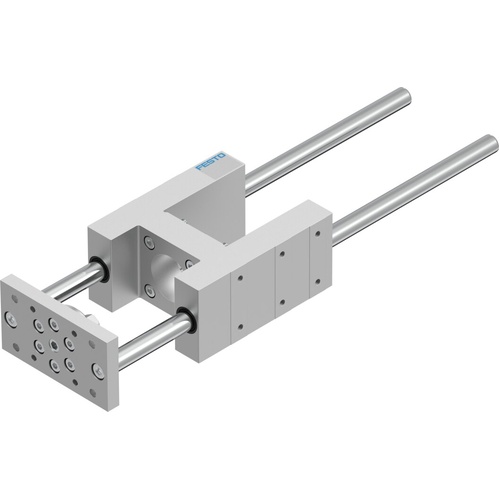

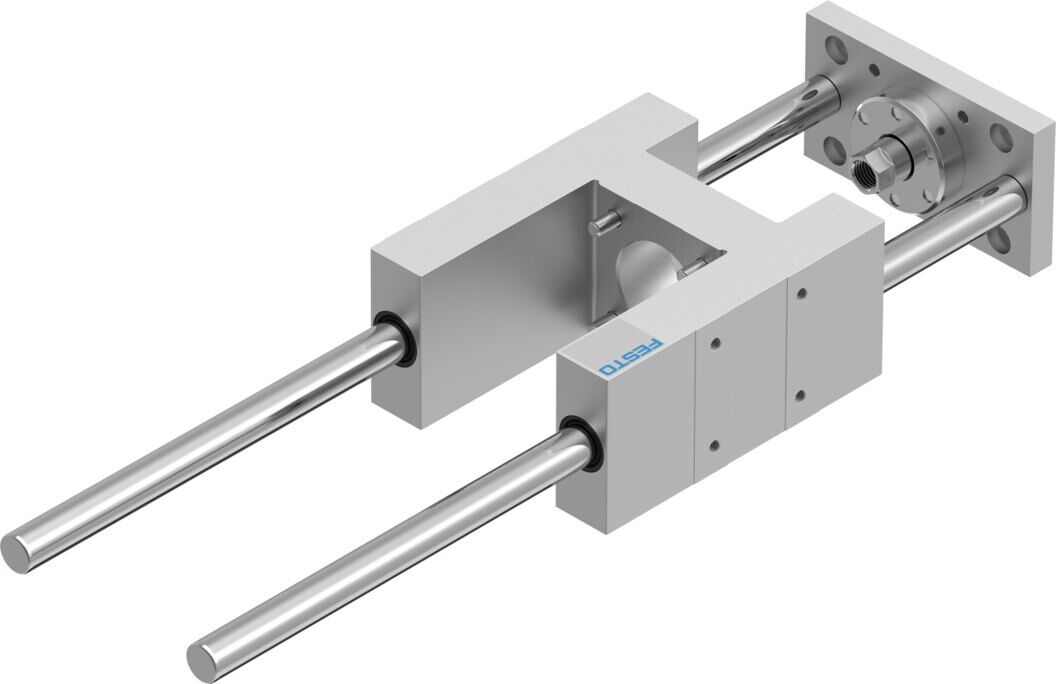

Guide unitEAGF-V2-KF-63-320

1725844

GTIN: 4052568246211



Technical Data Guide unit EAGF-V2-KF-63-320

  • Size63
  • Stroke320 mm
  • Reversing backlash theoretical0 µm
  • Mounting positionAny
  • GuideRecirculating ball bearing guide
  • DesignGuidance
  • Corrosion resistance class CRC0 - No corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Max. force Fy1260 N
  • Max. force Fy static1600 N
  • Max. force Fz1260 N
  • Max. force Fz static1600 N
  • Max. moment Mx75 Nm
  • Max. torque Mx static95 Nm
  • Max. moment My90 Nm
  • Max. torque My static115 Nm
  • Max. moment Mz90 Nm
  • Max. torque Mz static115 Nm
  • Displacement force15 N
  • Moving mass4131 g
  • Product weight7093 g
  • Centre of gravity at 0 mm stroke48 mm
  • Centre of gravity additional of moving mass per 10 mm4.1 mm
  • Type of mountingWith female thread
  • Note on materialsRoHS compliant
  • Material guide componentTempered steel
  • Material housinganodised
  • Material yoke plateSteel





SKU 1725844
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
