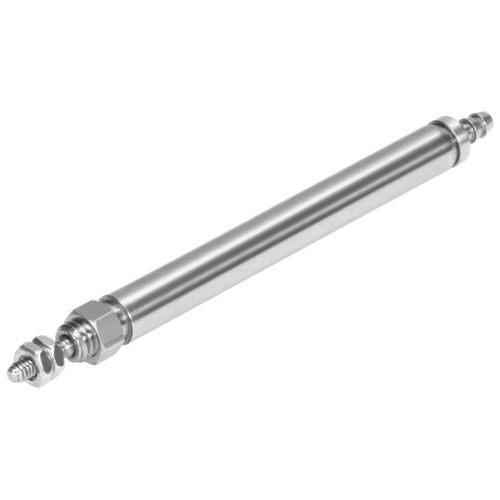

Round cylinder

EG-4-10-PK-2

15886





GTIN: 4052568066680

Mode of operation
Pushing - Single-acting
Piston diameter
4 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
4.9 N
Stroke
10 mm
Cushioning
No cushioning

Technical Data

  • Stroke10 mm
  • Piston diameter4 mm
  • Piston rod threadM2
  • CushioningNo cushioning
  • Mounting positionoptional
  • Piston-rod endMale thread
  • DesignPiston Piston rod Cylinder barrel
  • Position detectionWithout
  • Symbol00991200
  • VariantsPiston rod at one end
  • Operating pressure3.5 bar ... 7 bar
  • Mode of operationPushing Single-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Ambient temperature5 °C ... 60 °C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke4.9 N
  • Theoretical min. spring return force1.5 N
  • Theoretical max. spring return force2.6 N
  • Product weight5 g
  • Type of mountingVia lock nut
  • Pneumatic connectionPK-2
  • Note on materialsRoHS-compliant
  • Material coverHigh-alloy steel
  • Material sealsTPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelNickel-plated brass



SKU 15886
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
