ELECTRONIC OIL METER - 1/2"BSP

ELECTRONIC OIL METER - 1/2"

Product Code: IM012E-01

Description

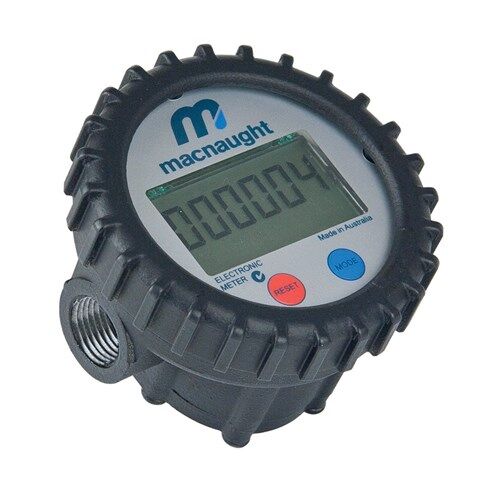

In-line oval gear meter with electronic register designed to measure lubricating oils. Flow rate up to 30L/min. Accurate reading to +/- 0.5% with maximum pressure to 6,900 kPa (1,000 psi). Large LC display shows batch and cumulative totals. Fitted with 1/2" BSP(F) ports.

Technical Specfications

  • Digital display showing both cumulative & push-button reset batch totals
  • Suitable for oils up to SAE 140, automatic trans ?uid, engine oil, gear oil, hydraulic oil coolant, diesel, kerosene
  • Flow rate up to 1 – 30LPM
  • Accurate reading to +/-0.5% with maximum pressure to 6,900kPa (1,000psi)
  • 1/2” BSP(F) inlet/outlet ports
  • 6-digit digital display resettable batch totaliser, resettable and non-resettable totals ?ow rate mode
SKU IM012E-01
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
