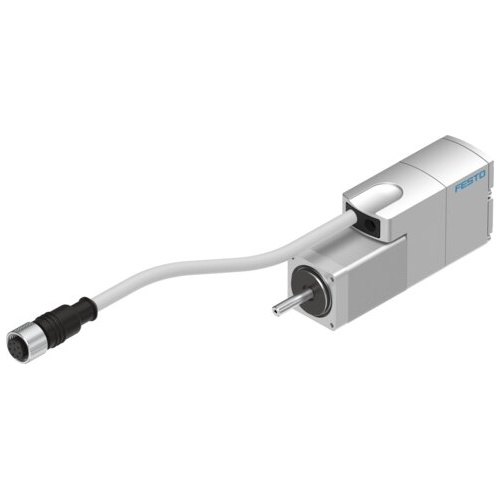

Stepper motor

Technical Data

• Ambient temperature-10 °C ... 50 °C
• Storage temperature-20 °C ... 70 °C
• Relative air humidity0 - 85%
• Conforms to standardIEC 60034
• Insulation protection classB
• Temperature class as per EN 60034-1B
• Rating class as per EN 60034-1S1
• Degree of protectionIP65
• Electrical connector systemPlug
• Note on materialsRoHS-compliant
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• ApprovalRCM trademark c UL us - Recognized (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• Nominal operating voltage DC48 V
• Motor holding torque0.09 Nm
• Max. rotational speed6000 rpm
• Stepper angle for complete step1.8 deg
• Stepping angle tolerance±5%
• Nominal motor current1.4 A
• Voltage constant, phase6 mVmin
• Phase winding resistance2.3 Ohm
• Phase winding inductance1.4 mH
• Mass moment of inertia of rotor0.018 kgcm²
• Total mass moment of inertia of output0.025 kgcm²
• Product weight356 g
• Permissible axial shaft load7 N
• Permissible radial shaft load20 N
• Brake holding torque0.2 Nm
• Operating voltage DC for brake24 V
• Power consumption, brake8 W
• Mass moment of inertia of brake0.007 kgcm²
