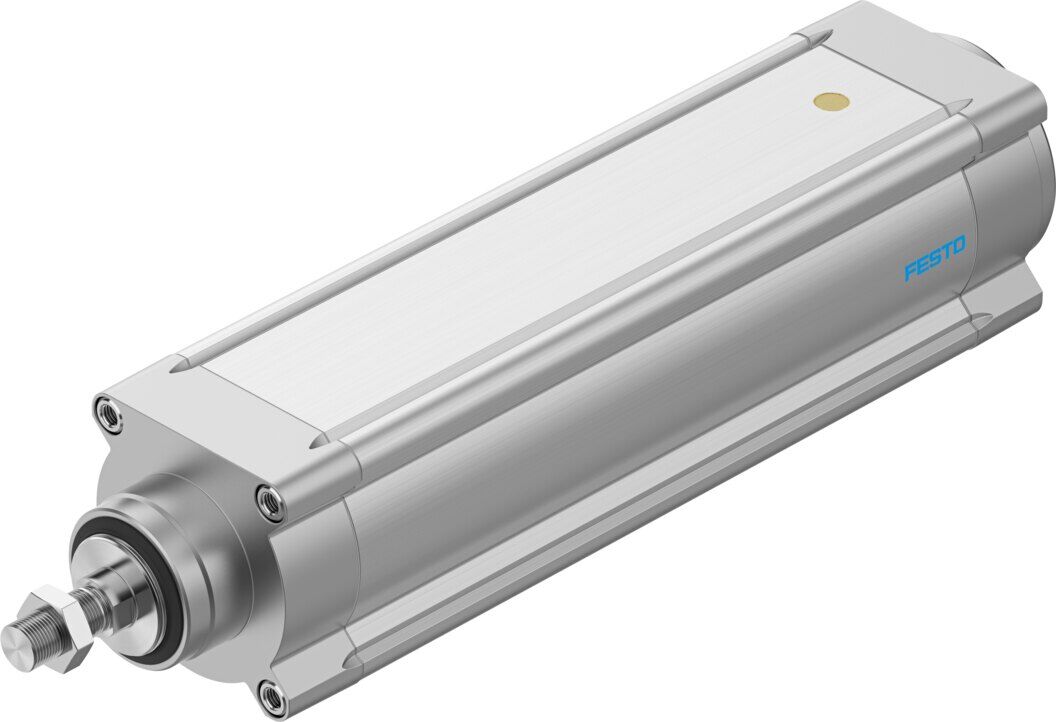

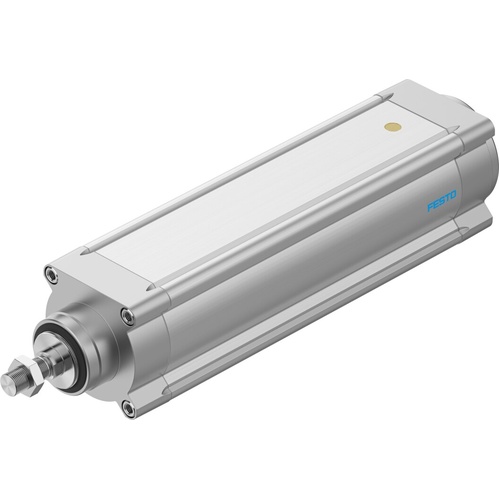

Electric cylinder

ESBF-BS-100-200-5P

1347393





GTIN: 4052568230807

Size
100
Max. feed force Fx
17000 N
Repetition accuracy
±0.01 mm
Stroke
200 mm

Technical Data

  • Working stroke200 mm
  • Size100
  • Stroke200 mm
  • Piston rod threadM20x1.5
  • Reversing backlash theoretical30 µm
  • Spindle diameter40 mm
  • Spindle pitch5 mm/U
  • Torsional backlash at piston rod +/-0.5 deg
  • Based on standardISO 15552
  • Mounting positionoptional
  • Piston-rod endMale thread
  • Type of motorServo motor
  • Position detectionVia proximity switch
  • DesignElectric cylinder with ball screw
  • Spindle typeBall screw
  • Symbol00991941
  • Protection against torque/guideWith plain-bearing guide
  • Max. acceleration5 m/s²
  • Max. rotational speed2010 rpm
  • Max. speed0.17 m/s
  • Repetition accuracy±0.01 mm
  • Duty cycle100%
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Storage temperature-20 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Relative air humidity0 - 95%
  • Degree of protectionIP40
  • Ambient temperature0 °C ... 60 °C
  • Max. drive torque16.9 Nm
  • Max. radial force at drive shaft1100 N
  • Max. feed force Fx17000 N
  • Frictional torque independent of load0.7 Nm
  • Reference value effective load, horizontal1700 kg
  • Reference value effective load, vertical1700 kg
  • Mass moment of inertia JH per metre of stroke18.978 kgcm²
  • Mass moment of inertia JL per kg of working load0.00633 kgcm²
  • Mass moment of inertia JO4.6963 kgcm²
  • Maintenance intervalLife-time lubrication
  • Moving mass for 0 mm stroke8786 g
  • Additional moving mass per 10 mm stroke132 g
  • Basic weight for 0 mm stroke11123 g
  • Additional weight per 10 mm stroke193 g
  • Type of mountingVia female thread Or accessories
  • Interface code, actuatorD100
  • Note on materialsRoHS-compliant
  • Material coverCast aluminium, coated
  • Material piston rodHigh-alloy stainless steel
  • Material screwsGalvanised steel
  • Material ball screw nutRolled steel
  • Material spindleRolled steel
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
