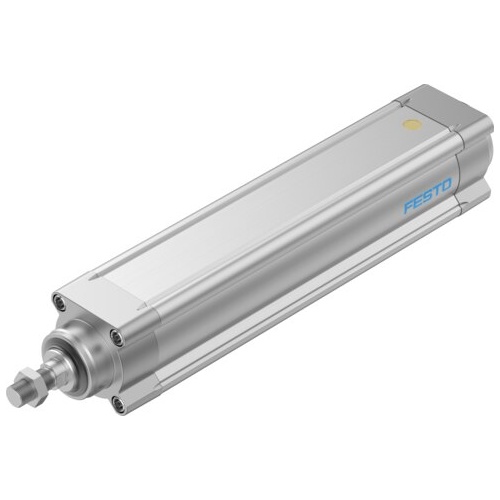

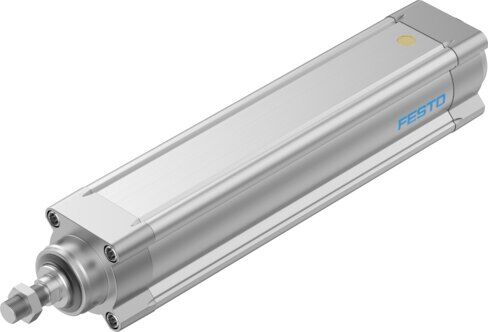

Electric cylinder

Technical Data

• Working stroke200 mm
• Size80
• Stroke200 mm
• Piston rod threadM20x1.5
• Reversing backlash theoretical30 µm
• Spindle diameter32 mm
• Spindle pitch5 mm/U
• Torsional backlash at piston rod +/-0.5 deg
• Based on standardISO 15552
• Mounting positionoptional
• Piston-rod endMale thread
• Type of motorServo motor
• Position detectionVia proximity switch
• DesignElectric cylinder with ball screw
• Spindle typeBall screw
• Symbol00991941
• Protection against torque/guideWith plain-bearing guide
• Max. acceleration5 m/s²
• Max. rotational speed2530 rpm
• Max. speed0.25 m/s
• Repetition accuracy±0.01 mm
• Duty cycle100%
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364 zone III
• Storage temperature-20 °C ... 60 °C
• Suitable for use with foodSee supplementary material information
• Relative air humidity0 - 95%
• Degree of protectionIP40
• Ambient temperature0 °C ... 60 °C
• Max. drive torque11.9 Nm
• Max. radial force at drive shaft1100 N
• Max. feed force Fx12000 N
• Frictional torque independent of load0.5 Nm
• Reference value effective load, horizontal1200 kg
• Reference value effective load, vertical1200 kg
• Mass moment of inertia JH per metre of stroke7.699 kgcm²
• Mass moment of inertia JL per kg of working load0.00633 kgcm²
• Mass moment of inertia JO1.5297 kgcm²
• Maintenance intervalLife-time lubrication
• Moving mass for 0 mm stroke5300 g
• Additional moving mass per 10 mm stroke103 g
• Basic weight for 0 mm stroke7393 g
• Additional weight per 10 mm stroke155 g
• Type of mountingVia female thread Or accessories
• Interface code, actuatorD80
• Note on materialsRoHS-compliant
• Material coverCast aluminium, coated
• Material piston rodHigh-alloy stainless steel
• Material screwsGalvanised steel
• Material ball screw nutRolled steel
• Material spindleRolled steel
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
