Holder for suction cup with connection ESH-HA-2-QS

189195

GTIN: 4052568041625

Technical Data Holder for suction cup with connection ESH-HA-2-QS

  • Nominal size2 mm
  • Volume0.501 cm³
  • Mounting positionAny
  • DesignVacuum port on top
  • Correlation to suction-cup holderSize 2
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight12 g
  • Type of mountingVia lock nut
  • Suction cup mountingDiameter 4 mm
  • Vacuum connectionQS-6
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material retaining bracketTempered steel High-alloy steel

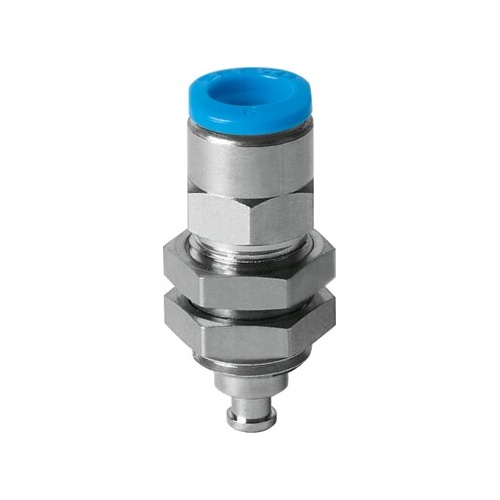

Holder for suction cup with connection ESH-HA-3-QS

189197

GTIN: 4052568041649



Technical Data Holder for suction cup with connection ESH-HA-3-QS

  • Nominal size5 mm
  • Volume0.52 cm³
  • Mounting positionAny
  • DesignVacuum port on top
  • Correlation to suction-cup holderSize 3
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight20 g
  • Type of mountingVia lock nut
  • Suction cup mountingM4
  • Vacuum connectionQS-6
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material retaining bracketTempered steel High-alloy stee
