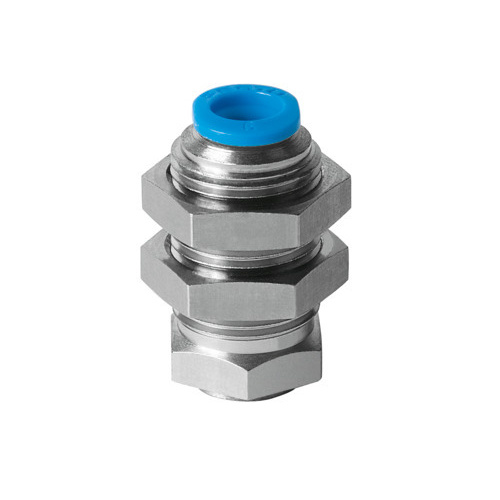

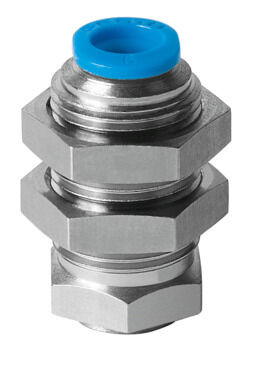

Holder for suction cup with connection ESH-HA-4-QS

189199

GTIN: 4052568041663

Technical Data Holder for suction cup with connection ESH-HA-4-QS

  • Nominal size5 mm
  • Volume0.719 cm³
  • Mounting positionAny
  • DesignVacuum port on top
  • Correlation to suction-cup holderSize 4
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight30 g
  • Type of mountingVia lock nut
  • Suction cup mountingM6
  • Vacuum connectionQS-6
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material retaining bracketTempered steel High-alloy steel







SKU 189199
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
