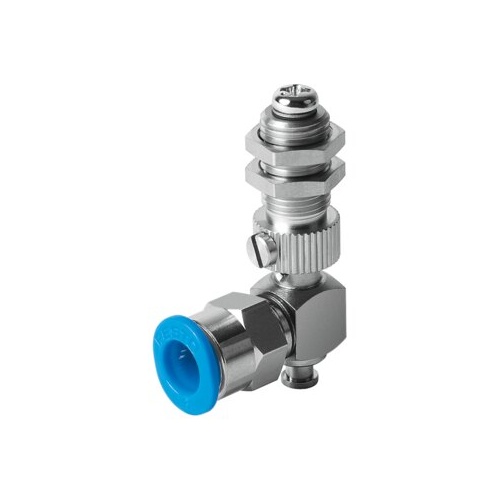

Holder for suction cup with connection ESH-HD-2-QS

189235

GTIN: 4052568078423

Technical Data Holder for suction cup with connection ESH-HD-2-QS

  • Height compensator for suction-cup holder3 mm
  • Nominal size1.8 mm
  • Volume0.417 cm³
  • Mounting positionVertical
  • DesignVacuum port on side With height compensator
  • Correlation to suction-cup holderSize 2
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature0 °C ... 60 °C
  • Product weight15 g
  • Type of mountingVia lock nut
  • Suction cup mountingDiameter 4 mm
  • Vacuum connectionQS-6
  • Note on materialsRoHS compliant
  • Material sealsNBR Steel
  • Material retaining bracketTempered steel High-alloy steel









SKU 189235
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
