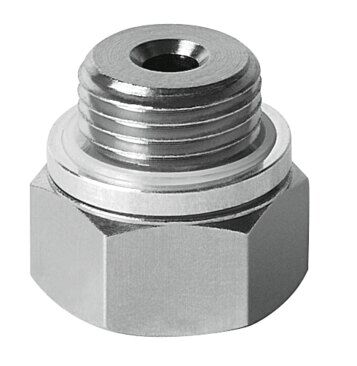

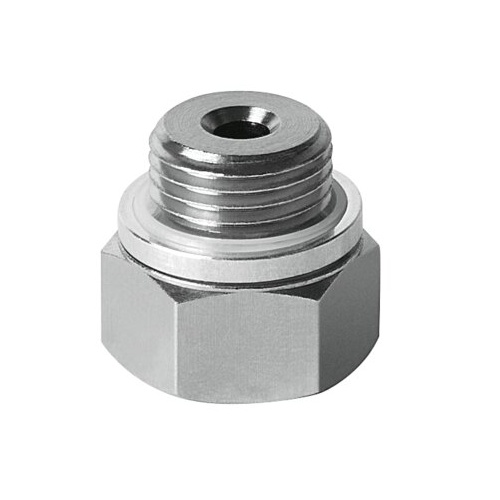

Holder for suction cup with connection ESH-HE-3-G1/8

189255

GTIN: 4052568041786

Technical Data Holder for suction cup with connection ESH-HE-3-G1/8

  • Nominal size3 mm
  • Volume0.106 cm³
  • Mounting positionAny
  • DesignVacuum port on top
  • Correlation to suction-cup holderSize 3
  • Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-A1-L
  • Ambient temperature-10 °C ... 60 °C
  • Product weight11 g
  • Type of mountingWith male thread Via vacuum port
  • Suction cup mountingM4
  • Vacuum connectionG1/8
  • Note on materialsRoHS compliant
  • Material sealsWrought aluminium alloy NBR POM Steel
  • Material retaining bracketTempered steel







SKU 189255
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
